3 Operation
3--22
F--9999--8 Build 8 Issue 1
PAPER LIFT
HANDWHEEL
PAPER STOCK
PAPER
GUIDES
MIDDLE
FRONT
GUIDE

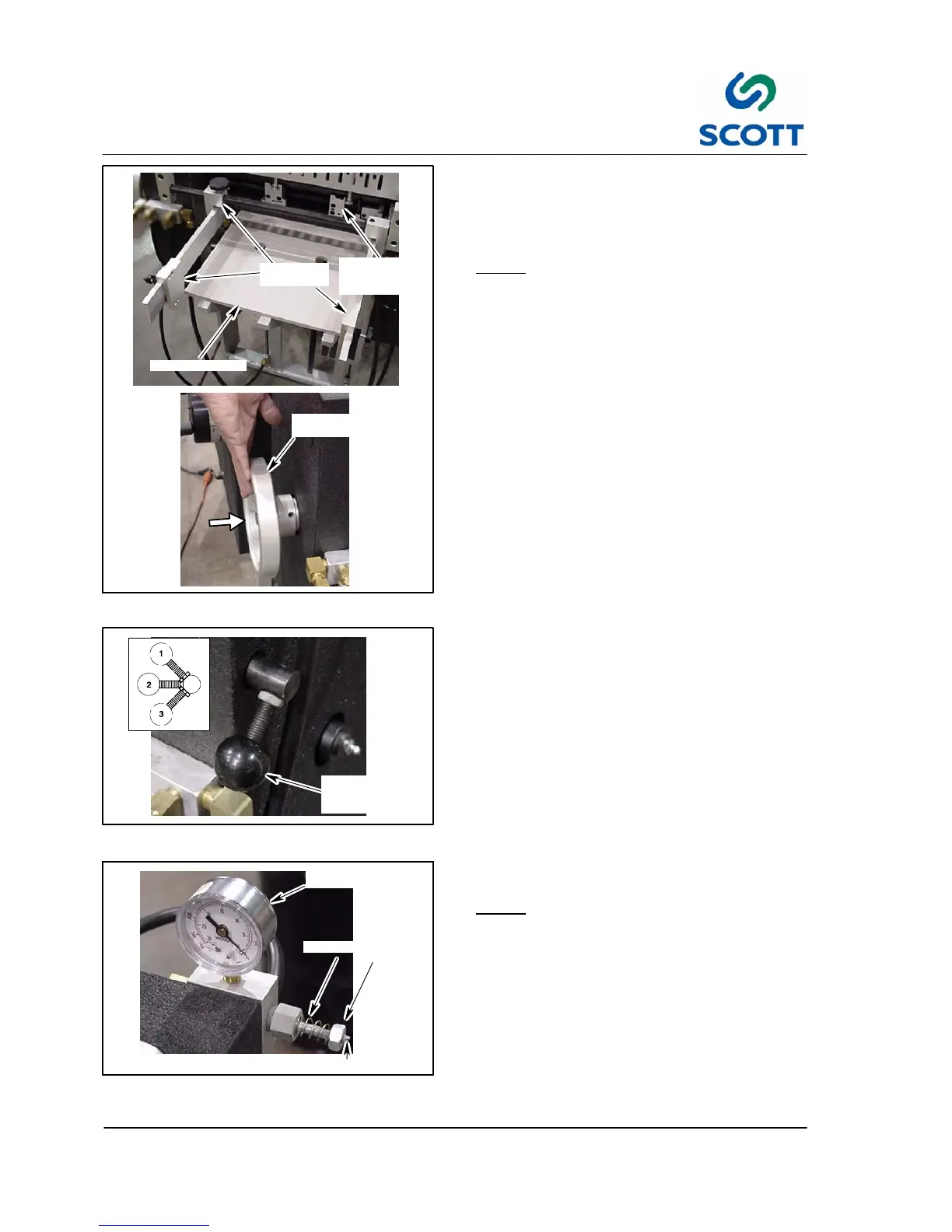

Fig. 3 -40. Load Stock
Step: 3. Load paper stock.
Step: 4. Push handwheel in and raise the paper
lift till the paper is level with top screw of
the middle front guide.
Note ! Make sure paper lift handwheel is fully
engaged. If not, the stack may fall
without warning.
Step: 5. Adjust paper guides (length & width).
PILE HEIGHT
ADJUSTMENT
KNOB
Fig. 3 -41. Adjustment Knob
Step: 6. Depending on the curl and weight of the
stock, adjust the pile height with the
adjustment knob.
1. Up for heavier or downward curl stock.
2. Middle for normal and straight stock.
3. Down for lighter or upward curl stock.
SPRING
HEX
NUT
VACUUM
GAGE
PLUNGER
Fig. 3 -42. Vacuum Setting
Step: 7. Adjust Vacuum.
Note ! The vacuum starting point is 10 inch
pounds for standard index stock. The
vacuum can be adjusted by turning
the hex nut to tighten or loosen the
spring, while keeping the plunger
stationary.
