3.2
SEL-734B Capacitor Bank Control Field Reference Guide Date Code 20170207
Installing the Enclosure
Pole-Mounting the Full-Size and Compact 7-Pin Enclosures

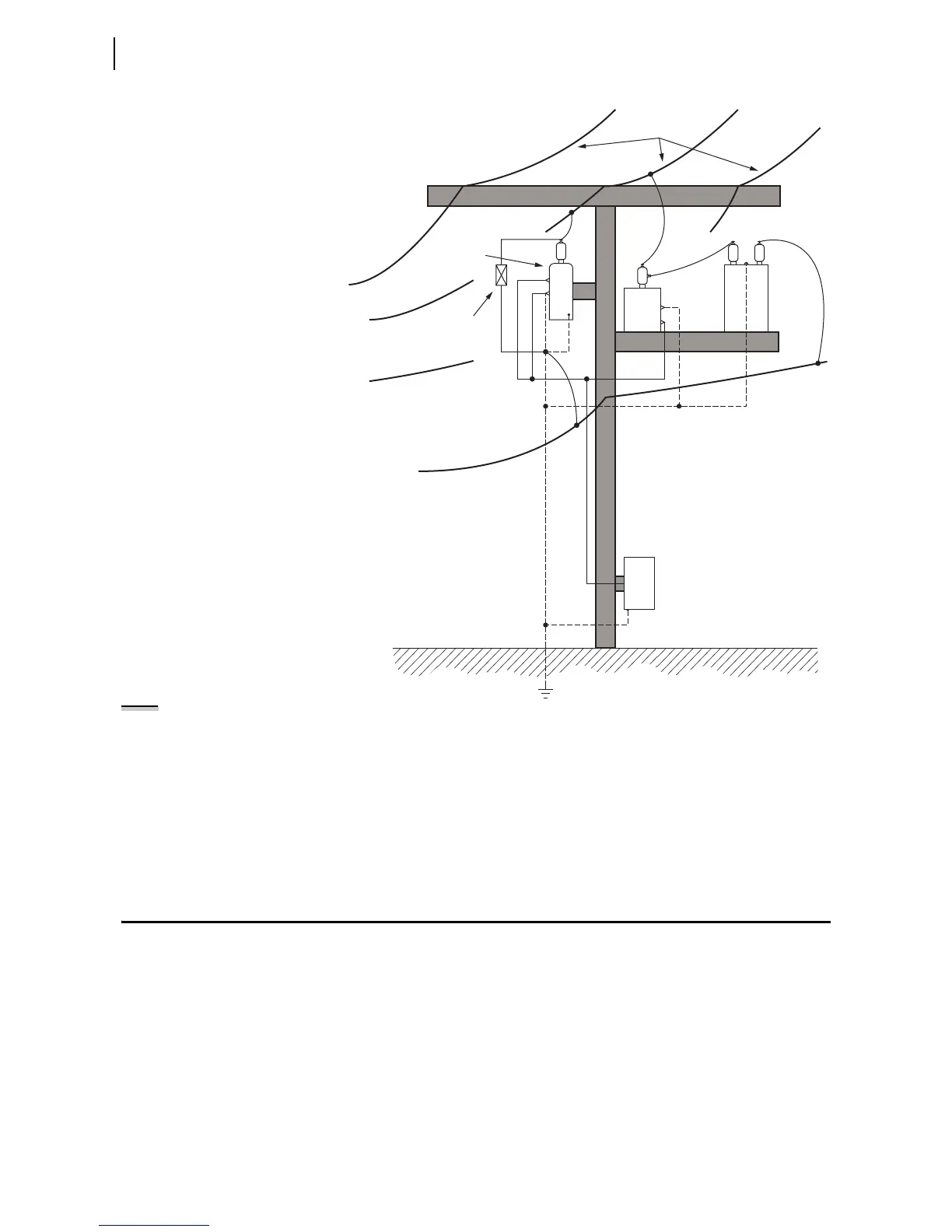

Figure 3.1 SEL-734B Required System Grounding
In cabinets with a ground lug, the ground lug is bonded to the chassis ground
of the SEL-734B and all metal parts in the cabinet. The ground lug is not
bonded to system neutral (see note). It is vital that the cabinet ground be
connected to the local ground conductor through use of local utility practices.
Pole-Mounting the Full-Size and Compact 7-Pin
Enclosures
The Full-Size Enclosure may be ordered with a factory-installed pole-
mounting bracket. The pole-mounting bracket for the Compact 7-Pin
Enclosure is available as an accessory. Figure 3.2 and Figure 3.3 show the
front view of the enclosure with the optional pole-mounting bracket attached.
Required equipment:
➤ (2x) 5/8" or 3/4" lag bolts
➤ 15/16" or 1-1/8" wrench
➤ Drill
Primary
Conductors
Control Power
Transformer
Surge
Arrestor
System Neutral
Capacitor
Bank
Capacitor
Switch
GND
CNTRL
GND
L1
NEU
GND
Ground
Lug
Capacitor
Control
Cabinet
Pole
Control
Cable
Pole
Ground
NOTE: In some full-sized enclosures
and some older compact connectorized
enclosures, the ground lug is bonded
to system neutral. Confirm that your
cabinet provides the correct ground-
to-neutral connection, or separation,
as required by your systems design.
To Next Page
