D.11
Date Code 20170207 Field Reference Guide SEL-734B Capacitor Bank Control
Cable Drawings
Sensor Cables for Full-Size Enclosures With Individual Sensor Connectors
Sensor Cables for Full-Size Enclosures With
Individual Sensor Connectors

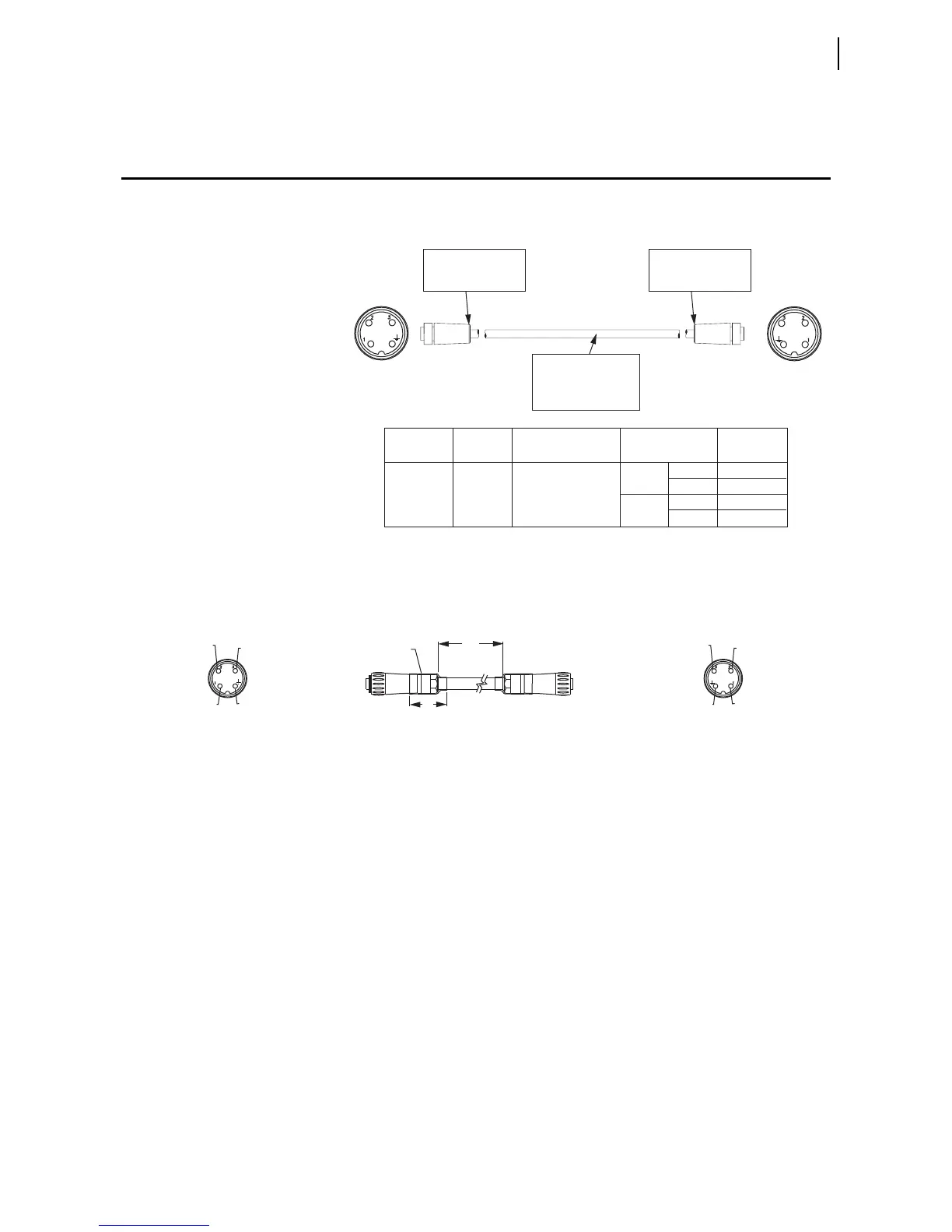

SEL-C530
Cable SEL-C530 connects to one Lindsey Manufacturing sensor (4-pin female
connector).
Lindsey
9-587/XX/9-582
This cable connects to one Lindsey Manufacturing sensor (4-pin male
connector).
J2
J1
• Ecomate Connector
C016 20H003 100 12
• Male Pins
• Xtra Guard 2
• 4 Conductor, 16 AWG
• Temperature Range:
–30° to 90°C
• Ecomate Connector
C016 20D003 100 12
• Female Socket
Wire Color
Black
Green
Red
White/Drain
Connector Pin
J2-1
J2-2
J2-3
J2-4
Wire Type
#16 AWG 65/30 Strand
#16 AWG 65/30 Strand
#16 AWG 26/30 Strand
#16 AWG 26/30 Strand
Polarity
Common
Polarity
Common
Current
Sensor
Function
Voltage
Sensor
Connector Pin
J1-1
J1-2
J1-3
J1-4
CT Non-Polarity
(Blue)
VS Polarity
(Red)
White Drain
Wires (Ground)
CT Polarity
(Orange)
(Female Sockets)
CT Non-Polarity
(Blue)
VS Polarity
(Red)
White Drain
Wires (Ground)
CT Polarity
(Orange)
(Male Pins)
Amphenol Connector (Female)
P/N C016 20D003 100 12
P/N 9–582
Amphenol Connector (Male)
P/N C016 20H003 100 12
P/N 9–587
LMC P/N R-22485
1” Shrink Tubing 3:1
2 PLCS
3”
(Length in Feet)
xx
