Sel SEL-734B - Sensor Cables for Full-Size Enclosures with the Combined Sensor Connector

D.5
Date Code 20170207 Field Reference Guide SEL-734B Capacitor Bank Control
Cable Drawings
Sensor Cables for Full-Size Enclosures With the Combined Sensor Connector
Sensor Cables for Full-Size Enclosures With the
Combined Sensor Connector

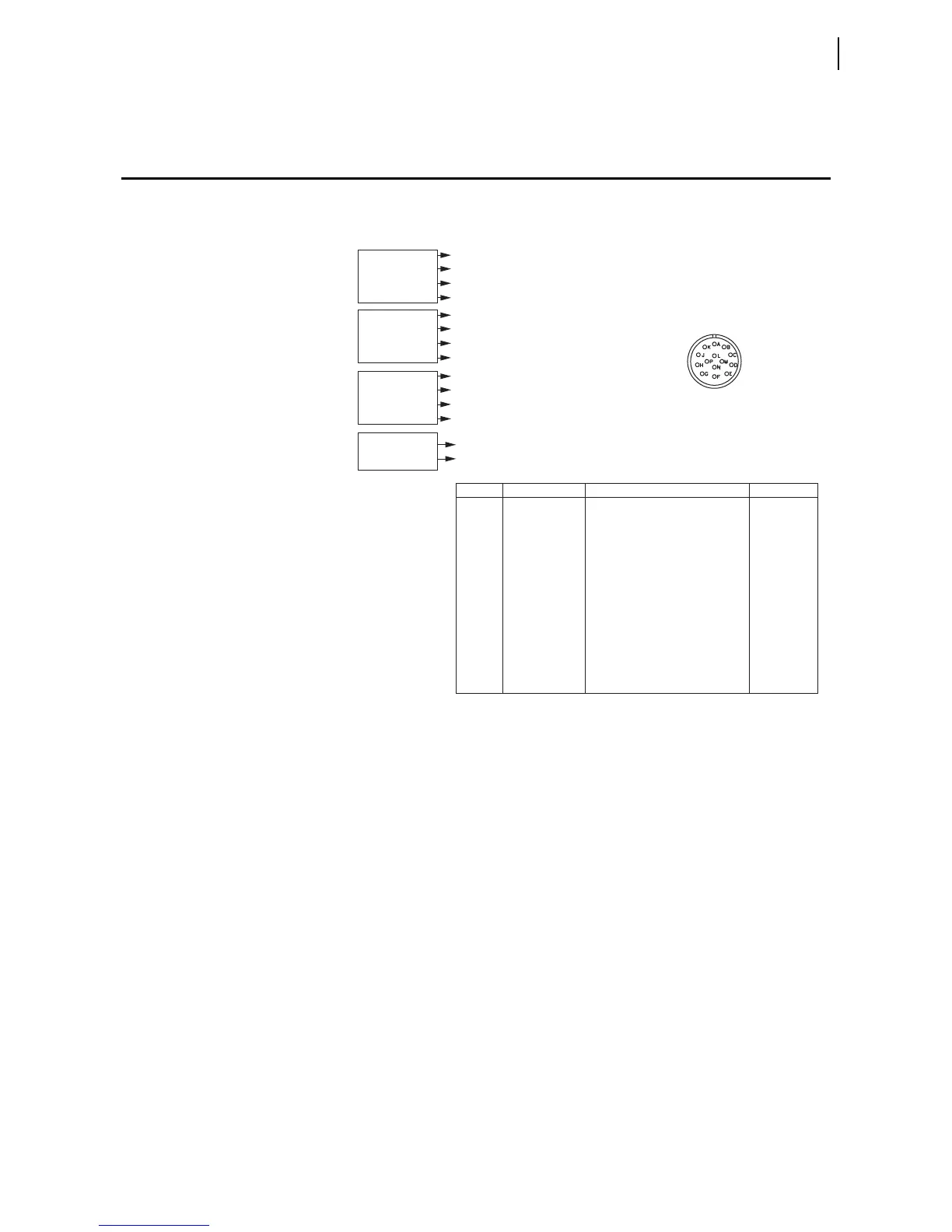

R-22748/XX,YY
This cable connects to three Lindsey Manufacturing sensors and one Lindsey
neutral current sensor (4-pin male connector).
Amphenol MS3106A22-19S
Female Amphenol Socket
Wire Backside Connection
9-587
A-Phase
9-587
B-Phase
9-587
C-Phase
9614A
Neutral N
Orange #16 AWG — CT Polarity
Blue #16 AWG — CT Non-Polarity
Red #22 AWG — Voltage
White and Drain Wire — Ground
Orange #16 AWG — CT Polarity
Blue #16 AWG — CT Non-Polarity
Red #22 AWG — Voltage
White and Drain Wire — Ground
Orange #16 AWG — CT Polarity
Blue #16 AWG — CT Non-Polarity
Red #22 AWG — Voltage
White and Drain Wire — Ground
Voltage
Ground
Amphenol Pin
A
B
C
D
E
F
G
H
J
K
L
M
N
P
+H
–N
VN+
VN–
VA
VB
VC
VG
IA*
IA
IB*
IB
IC*
IC
Lindsey Connection
N/A
N/A
Neutral N+ Red (or Wht)
Neutral N– Wht (or Blk)
A-Phase Red
B-Phase Red
C-Phase Red
A-, B-, and C-Phase White and Drain
A-Phase Orange
A-Phase Blue
B-Phase Orange
B-Phase Blue
C-Phase Orange
C-Phase Blue
Ref. Wires
Black
White
Red
Green
Orange
Blue
White/Black
Red/Black
Green/Black
Orange/Black
Blue/Black
Black/White
Red/White
Green/White
