SEL-734B Capacitor Bank Control Field Reference Guide Date Code 20170207
Cable Drawings
Control Cables for Full-Size Enclosures With the Combined Sensor Connector
SEL-C556
Cable SEL-C556 connects to three switches and the control power

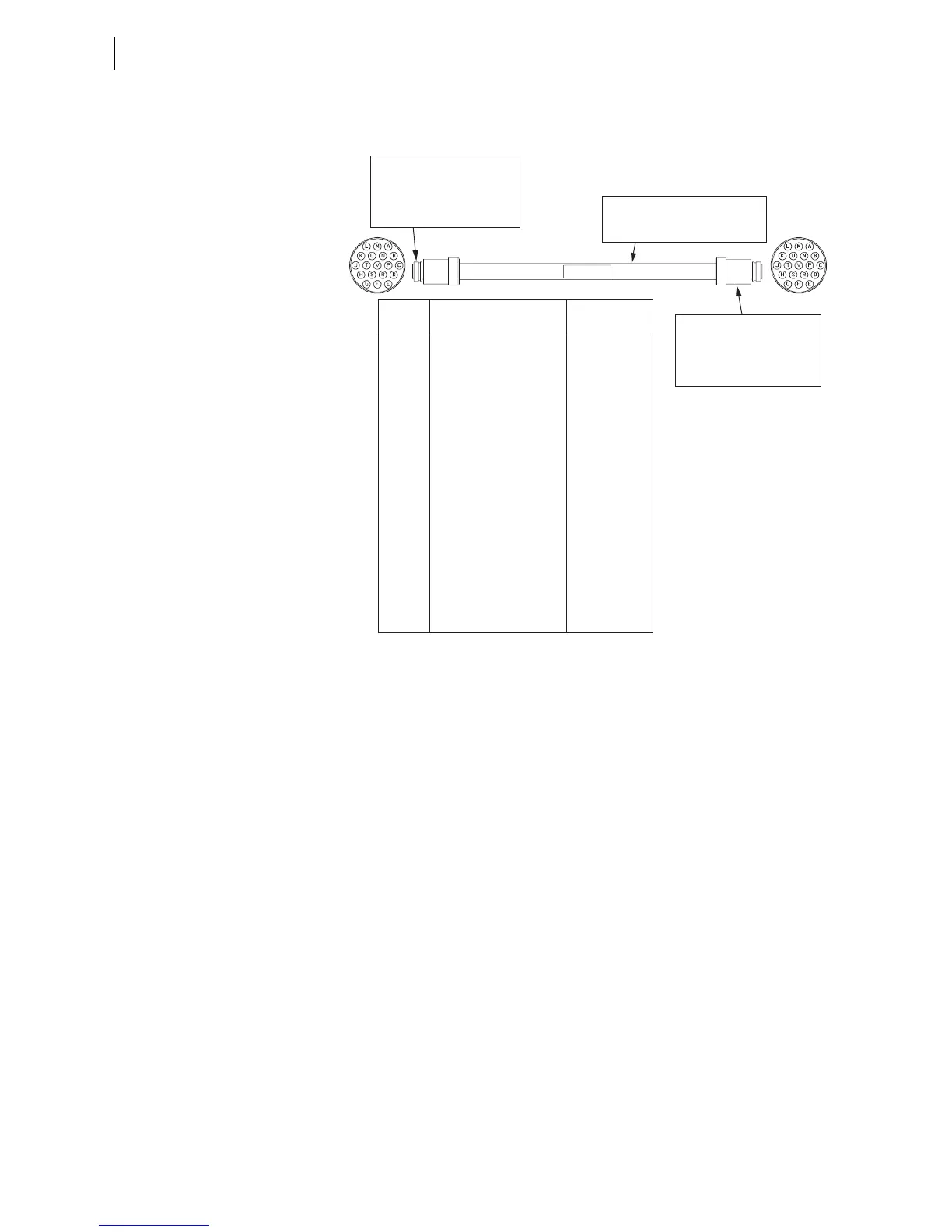

transformer through a Cooper junction box (drawing CCR116K1).
SEL-C556
• Military Standard
• 3106 Style
• Insert Arrangement 22-14S
• Solid Backshell
• Maximum Diameter: 1.468 inch
• SOOW Cable
• –40° to 90°C, 600 V
• 16 Conductor, 16 AWG, 26/30 Strand
• Military Standard
• 3106 Style
• Insert Arrangement 22-14S
• Solid Backshell
• Maximum Diameter: 1.468 inch
Function
Control Power
Line Neutral
Phase 3 Open
Phase 3 Close
Phase 3 Status (52a)
Phase 3 Status (52b)
Phase 2 Open
Phase 2 Close
Phase 2 Status (52a)
Phase 2 Status (52b)
Phase 1 Open
Phase 1 Close
Phase 1 Status (52a)
Phase 1 Status (52b)
Phase 1, 2, 3 Status Common
Line Neutral
Not Connected
Not Connected
Not Connected
Cooper Junction
Box Pin
A
B
J
K
S
T
F
G
P
R
C
D
M
N
U
V
E
H
L
SEL-734B
Pin
A
B
J
K
S
T
F
G
P
R
C
D
M
N
U
V
E
H
L
