Sel SEL-734B - Control Cables for Full-Size Enclosures with Individual Sensor Connectors

D.9
Date Code 20170207 Field Reference Guide SEL-734B Capacitor Bank Control
Cable Drawings
Control Cables for Full-Size Enclosures With Individual Sensor Connectors
Control Cables for Full-Size Enclosures With
Individual Sensor Connectors

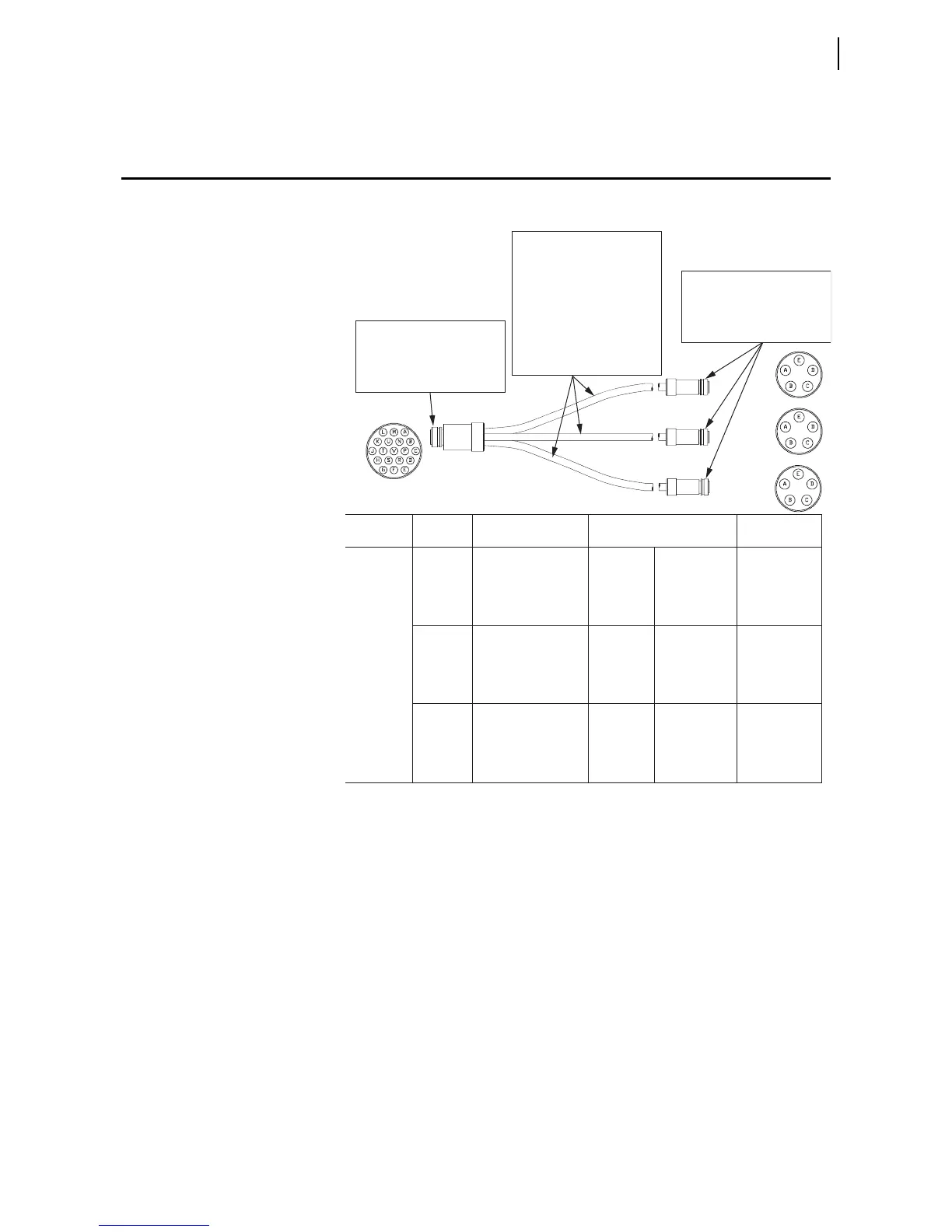

SEL-C537
Cable SEL-C537 connects to three switches (5-pin female connector).
J1
Phase 1
Phase 2
Phase 3
J2
J3
J4
Jacket:
• SOOW Cable
• Super Vu-Tron 90°C, Black
• Temperature Range:
–40° to 90°C
Industry Approvals:
• UL Flexible Cord UL Subject 62
• CSA Flexible Cord C22.2-49
• MSHA Approved
• RoHS Compliant
• Military Standard
• 3106 Style
• Insert Arrangement 22-14S
• Solid Backshell
• Maximum Diameter: 1.468 inch
• Military Standard
• 3106 Style
• Insert Arrangement 18-11S
• Solid Backshell
• Maximum Diameter: 0.724 inch
Wire Color
Red
White
Green
Black
Orange
Red
White
Green
Black
Orange
Red
White
Green
Black
Orange
Common
Common
Close
Open
52b
Common
Common
Close
Open
52b
Common
Common
Close
Open
52b
Wire Type
#16 AWG 26/30 Strand
#16 AWG 26/30 Strand
#16 AWG 26/30 Strand
#16 AWG 26/30 Strand
#16 AWG 26/30 Strand
#16 AWG 26/30 Strand
#16 AWG 26/30 Strand
#16 AWG 26/30 Strand
#16 AWG 26/30 Strand
#16 AWG 26/30 Strand
#16 AWG 26/30 Strand
#16 AWG 26/30 Strand
#16 AWG 26/30 Strand
#16 AWG 26/30 Strand
#16 AWG 26/30 Strand
Connector Pin
J1-U
J1-E
J1-D
J1-C
J1-N
J1-U
J1-H
J1-G
J1-F
J1-R
J1-U
J1-L
J1-K
J1-J
J1-T
Connector Pin
J2-A
J2-B
J2-C
J2-D
J2-E
J3-A
J3-B
J3-C
J3-D
J3-E
J4-A
J4-B
J4-C
J4-D
J4-E
Function
Phase 1
Phase 2
Phase 3
