D.8
SEL-734B Capacitor Bank Control Field Reference Guide Date Code 20170207
Cable Drawings

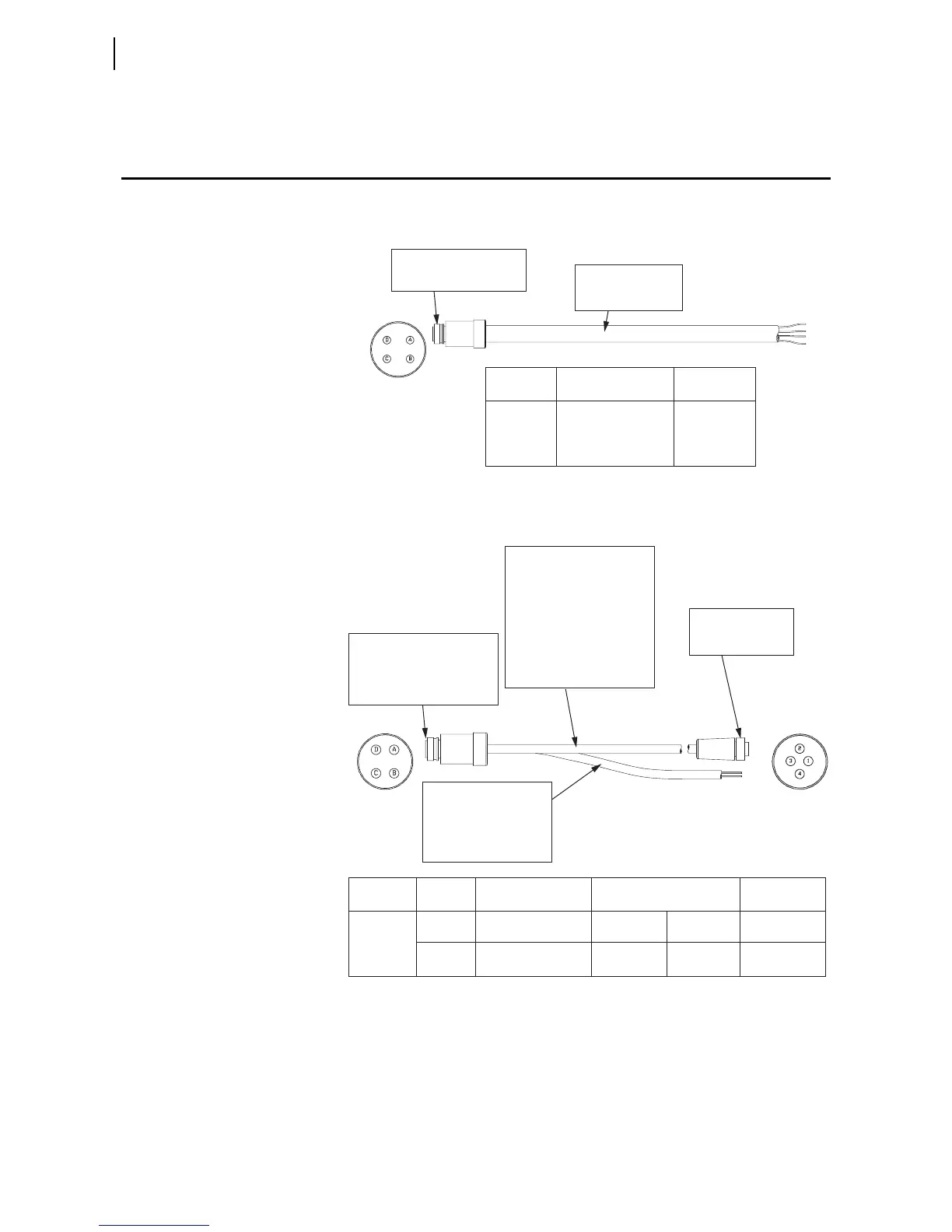

Power Supply/Neutral Sensor Cables for Full-Size Enclosures With Individual Sensor Connectors
Power Supply/Neutral Sensor Cables for Full-Size
Enclosures With Individual Sensor Connectors
SEL-C532
Cable SEL-C532 connects to the control power transformer and a neutral
sensor.
SEL-C539
Cable SEL-C539 connects to one Lindsey Manufacturing neutral sensor and
the control power transformer (4-pin male connector).
J1
• 4 Pin
• 3106 Style
• Insert Arrangement 22-10S
• 16 AWG, SPPW Cable
• –40° to 90°C, 600 V
• 4 Conductor
Function
120 Vac Control Power
Neutral
Neutral Sensor, Polarity
Neutral Sensor, Common
Conductor Color
Black
White
Red
Green
Connector Pin
J1-A
J1-B
J1-C
J1-D
Power Supply
J1
J2
Jacket:
• SOOW Cable
• 2 Conductor, 16 AWG
• Temperature Range:
–40° to 90°C
Industry Approvals:
• UL Flexible Cord UL Subject 62
• CSA Flexible Cord C22.2-49
• MSHA Approved
• RoHS Compliant
• Military Standard
• 3106 Style
• Insert Arrangement 22-10
• Solid Backshell
• Maximum Diameter: 1.869 inch
• Ecomate Connector
C016 20H003 100 12
• Male Pins
• Shielded SOOW Cable
• UL Standard 62
• UL and CSA Listed
• Temperature Rating: 90°C
• Voltage Rating: 600 V
• 2 Conductor, 12 AWG
Wire Color
Black
White
Black
White
120 VAC
Neutral
Polarity
Common
Wire Type
#16 AWG 26/30 Strand
#16 AWG 26/30 Strand
#16 AWG 26/30 Strand
#16 AWG 26/30 Strand
Connector Pin
J1-A
J1-B
J1-C
J1-D
Connector Pin
Wire Termination
Wire Termination
J2-3
J2-4
Function
Neutral Sensor
Control Power
