Installing the Enclosure
Mounting Socket-Based Enclosures
Mounting Socket-Based Enclosures
Use a locking ring to mount and hold the enclosure to the meter socket base.
Figure 3.4 shows a sample locking ring, which is orderable as kit 915900302.

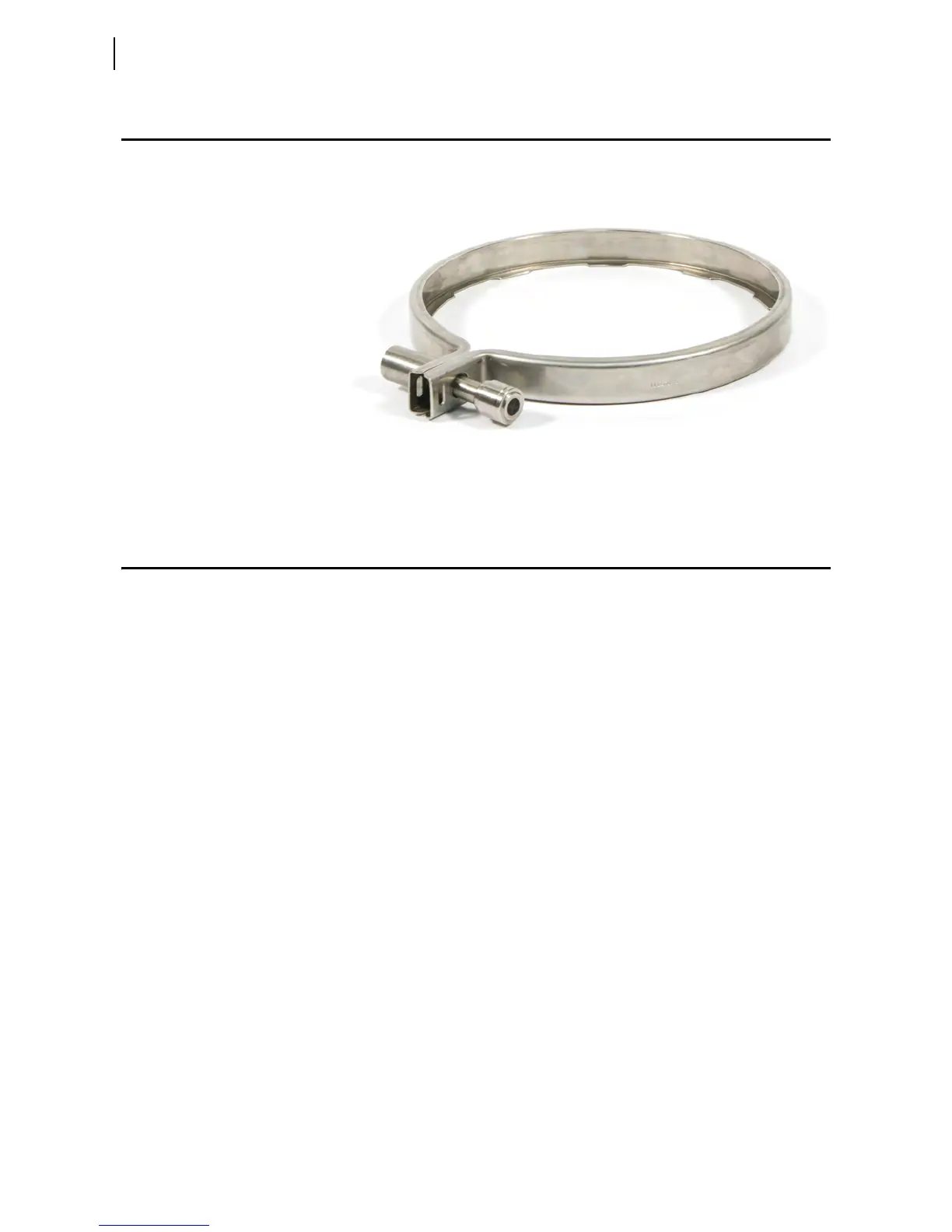

Figure 3.4 Meter Locking Ring for Socket-Based Enclosure
Connecting Socket-Based Enclosures to a Control
Power Transformer and Switches
SEL does not provide cabling or installation equipment other than the locking
ring for the socket-based enclosure models. Ensure that the meter socket is
properly wired to the capacitor bank switches and sensors and that the
enclosure is connected to the local ground conductor.
