3.4
SEL-734B Capacitor Bank Control Field Reference Guide Date Code 20170207
Installing the Enclosure
Pole-Mounting the Full-Size and Compact 7-Pin Enclosures

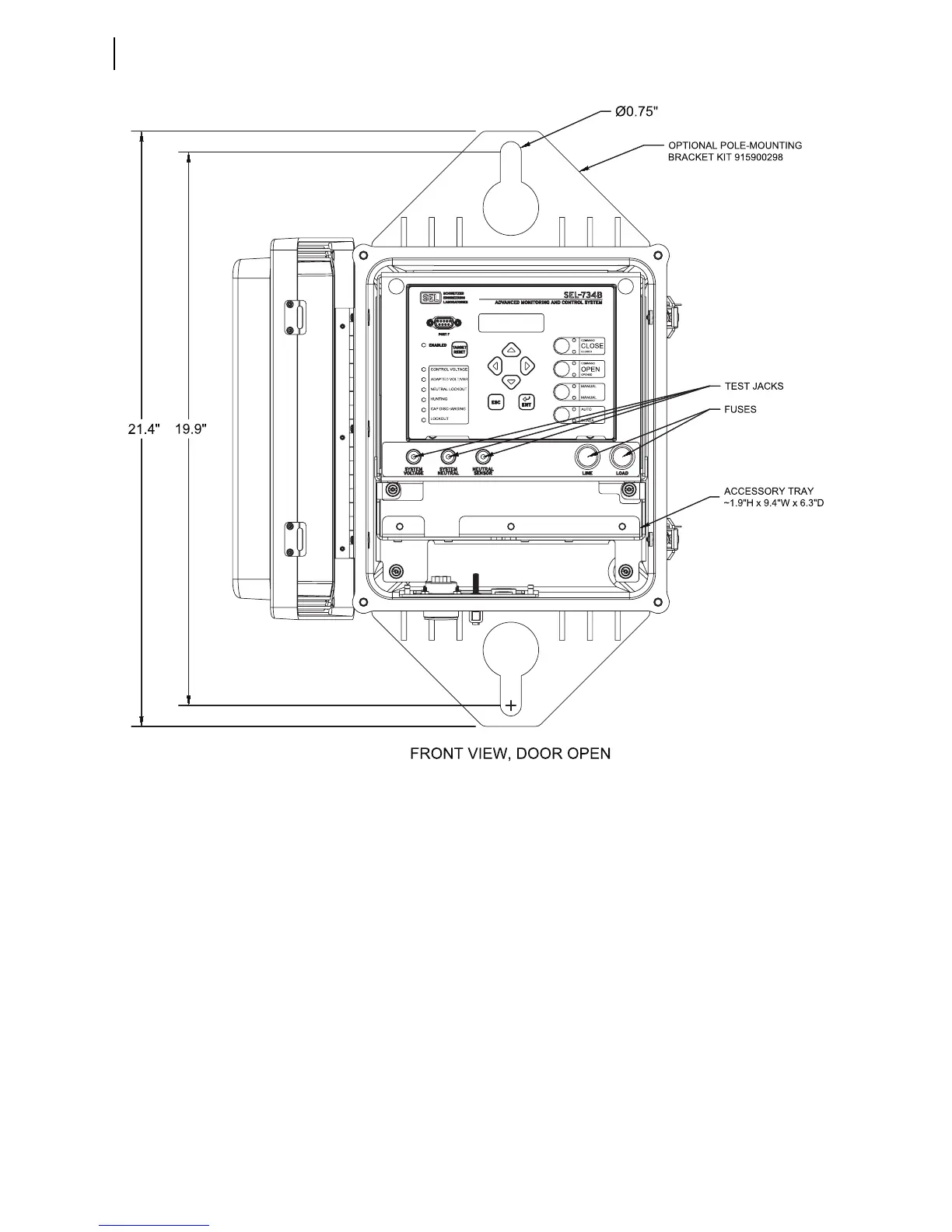

Figure 3.3 Compact 7-Pin Enclosure Mounting Dimensions
Step 1. Use the dimensions given in Figure 3.2 or Figure 3.3 and drill
two pilot holes for the lag bolts.
Step 2. Install one lag bolt for the top mounting bracket.
Step 3. Hang the enclosure from the lag bolt.
Step 4. Install the other lag bolt into the bottom mounting bracket.
Step 5. Tighten both lag bolts.
