C.3
Date Code 20170207 Field Reference Guide SEL-734B Capacitor Bank Control
Installation Examples
Full-Size Enclosures With the Combined Sensor Connector

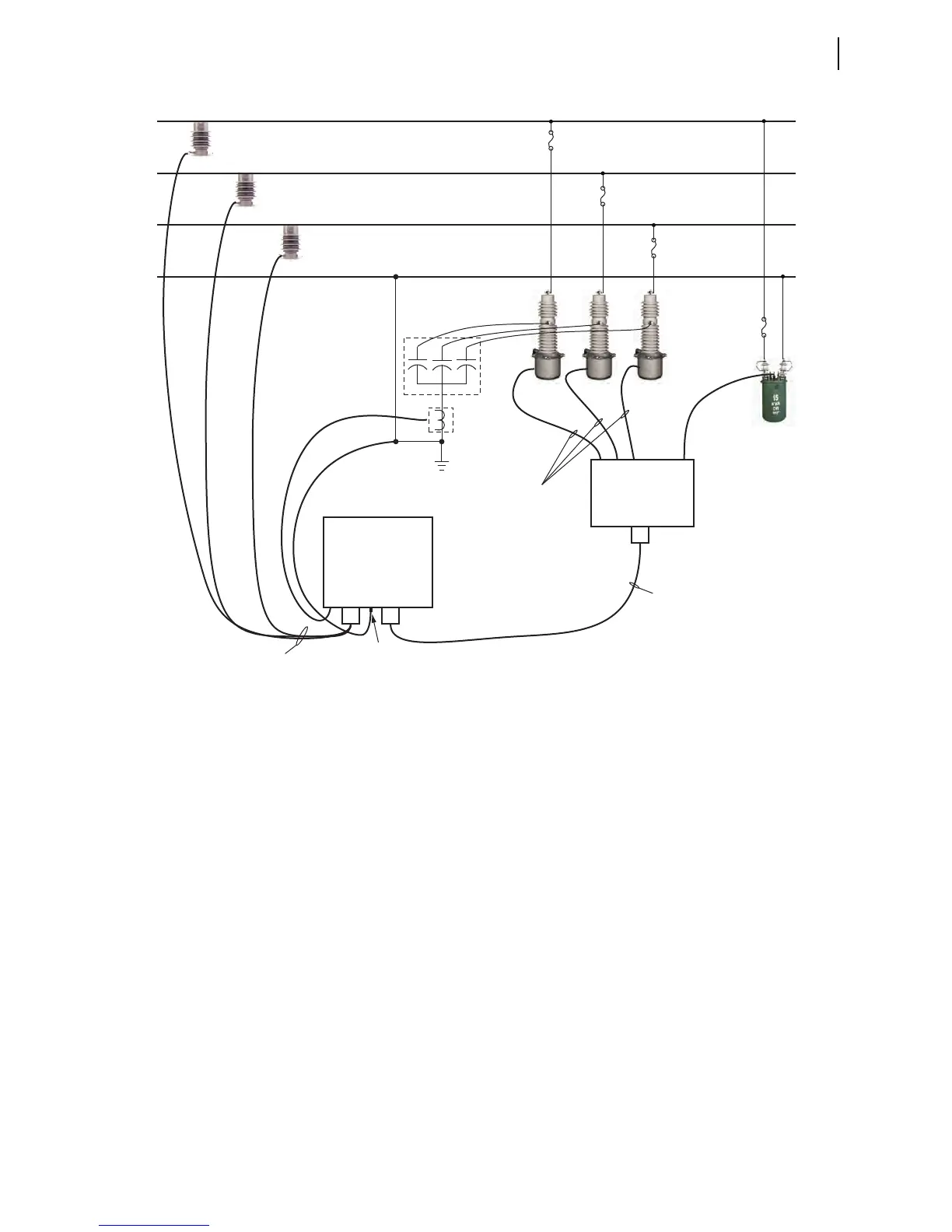

Figure C.2 Full-Size Enclosure With Combined Sensor Connector (Installed With Cooper Junction Box and
Separate Neutral Sensor Cable)
Control
Power
Transformer
A-Phase
B-Phase
C-Phase
Neutral
Three
Single-Phase
Switches
Capacitor
Bank
Combo
Sensor
Combo
Sensor
Combo
Sensor
Neutral
Current
Sensor
SEL-734B
Enclosure,
Combined
Sensor
Connector
Sensor Cable
(SEL-C529, SEL-C536,
Lindsey 9-587/XX/R-22102)
14-pin 19-pin
Cooper Junction
Box
Switch Cable
(SEL-C526)
19-pin
Cooper Junction
Box Control
Cable (SEL-C556)
Cabinet
Ground Lug
