Installing the SR IEM G4
24
Connectors on the rear of the device

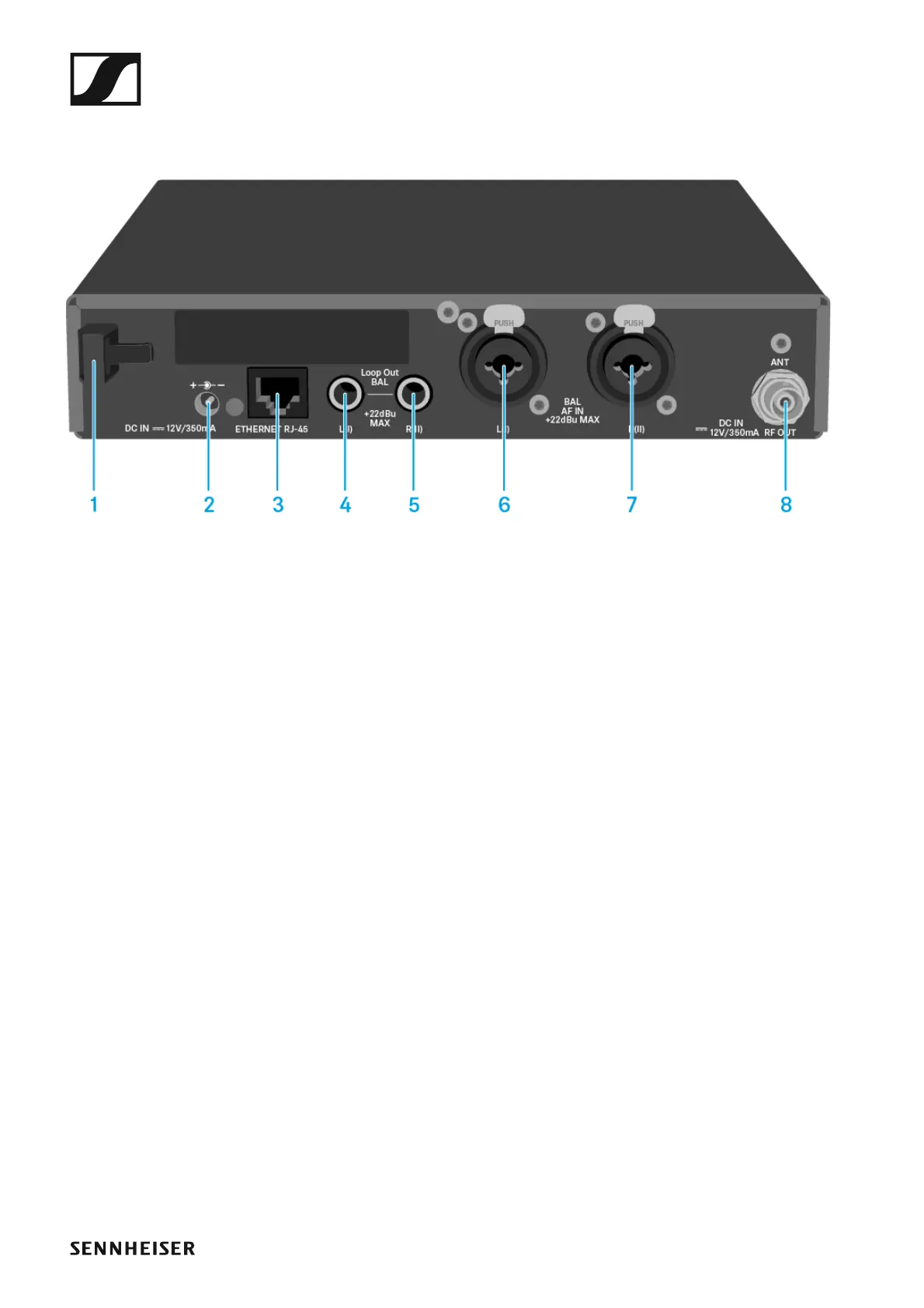

SR IEM G4 rear side product overview
►
1 Strain relief for the cable of the power supply unit
• See “Connecting/disconnecting the SR IEM G4 with/from the power
supply”
2 DC INsocket
• For connecting the power supply unit
• See “Connecting/disconnecting the SR IEM G4 with/from the power
supply”
3 LAN connection socket (ETHERNET RJ 45)
• See “Creating a data network”
4 6.3 mm jack socket LOOP OUT BAL L(I)
•Audio output, left
• See “Daisy chaining audio signals”
5 6.3 mm jack socket LOOP OUT BAL R(II)
•Audio output, right
• See “Daisy chaining audio signals”
6 XLR-3/6.3 mm jack combo socket BAL AF IN L(I)
• Audio input, left
• See “Connecting audio signals”
7 XLR-3/6.3 mm jack combo socket BAL AF IN R(II)
• Audio input, right
• See “Connecting audio signals”
8 RF OUT BNC socket
• Antenna output with remote power supply input
• See “Connecting antennas”
