Installing the AC 41
43

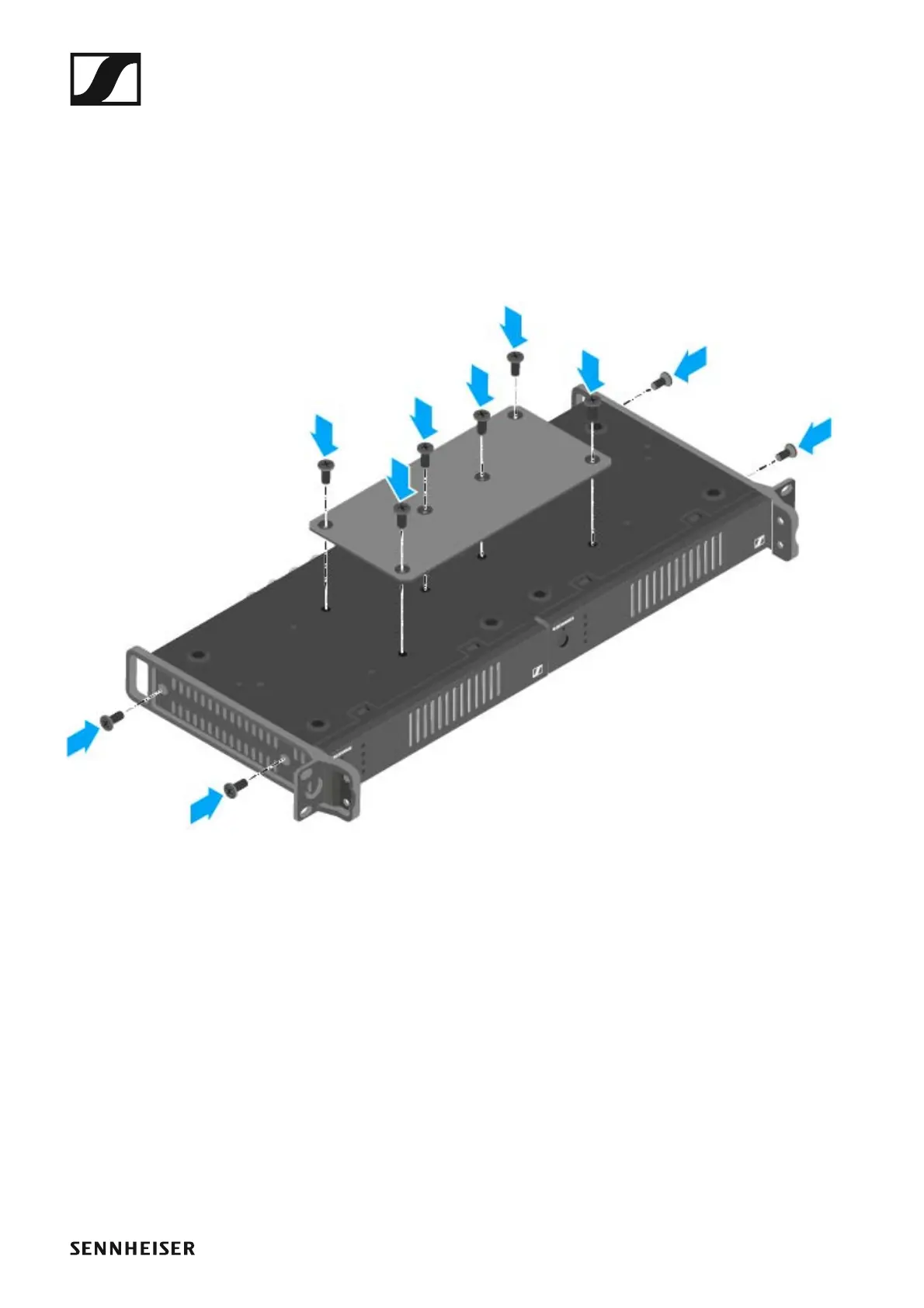

Mounting two antenna combiners side by side in a rack
To mount the antenna combiners using the GA 3 rack mounting kit (option-
al accessory):
▷ Place both antenna combiners upside down and side by side on an even
surface.
▷ Secure the jointing plate to the transmitters using the six recessed
head screws (M3x6).
▷ Secure the mounting angle.
▷ Slide the connected antenna combiners into a 19" rack.
▷ Secure the mounting angle to the 19" rack.
