Using the EK IEM G4

• Adjusting the menu item and loading profiles

• Resetting the settings made in the operating menu

• Displaying the current software revision

▷ See “Advanced menu item”

Menu structure

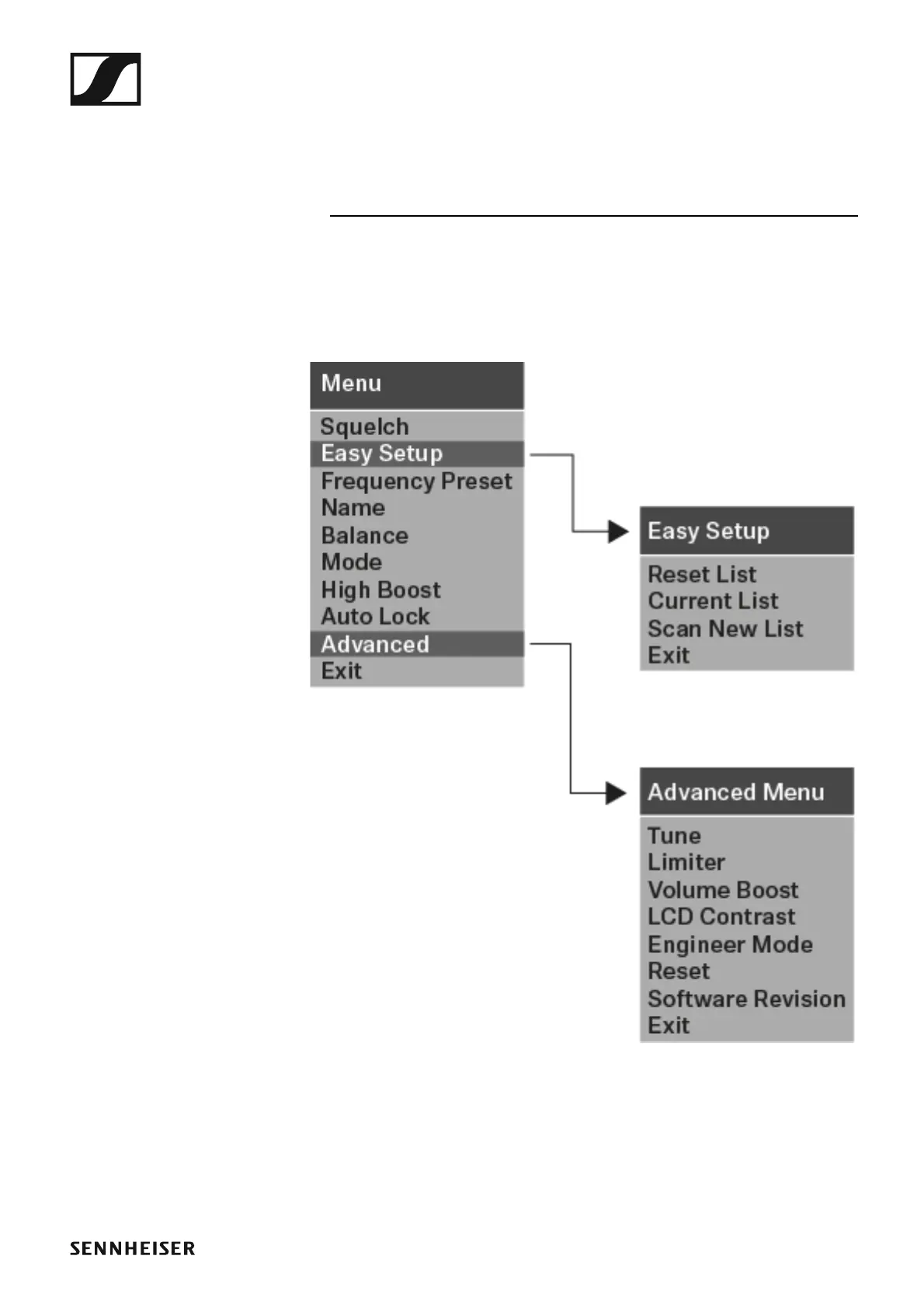

The figure shows the complete EK IEM G4 menu structure in an overview.

►
