Mounting a single antenna combiner in a rack
To mount the antenna combiner in a rack, you will need the GA 3 rack
mounting kit (optional accessory).

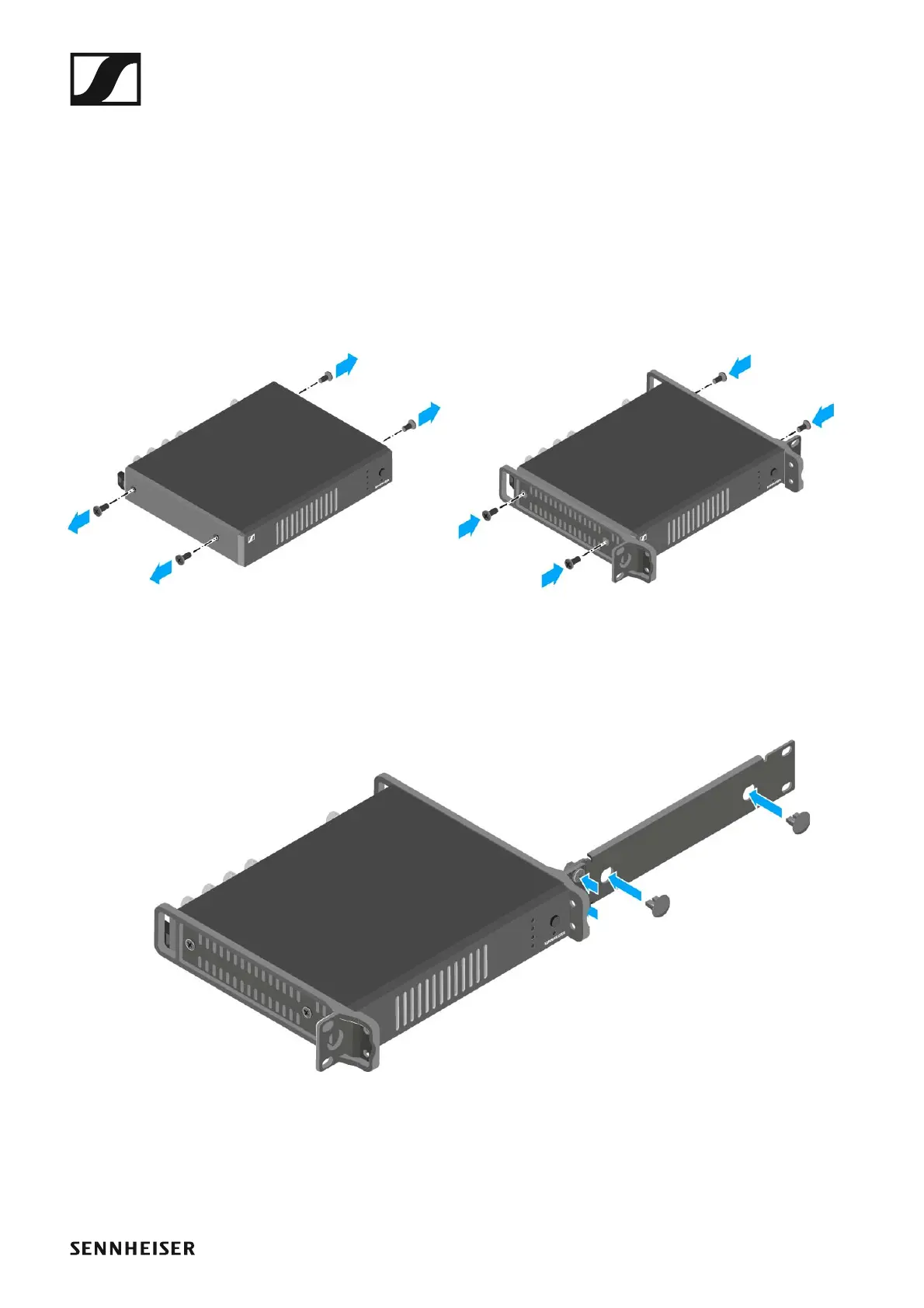

To fasten the mounting angle of the GA 3 rack mounting kit:
▷ Unscrew and remove the two recessed head screws (M4x8) on each
side of the antenna combiner.
▷ Secure the mounting angles to the sides of the antenna combiner using
the previously removed recessed head screws.
►
▷ Secure the blanking plate to one of the mounting angles using two re-
cessed head screws (M6x10).
▷ Cover the antenna holes with the two covers.
►
▷ Slide the antenna combiner with the mounted blanking plate into the
19" rack.
▷ Secure the mounting angle and the blanking plate to the 19" rack.
