Installing the AC 41
37
Connecting/disconnecting the AC 41 to/from the
power supply system
To supply power to the AC 41, the connected transmitters and any antenna
amplifiers used, you will need the NT 3-1 power supply unit.
Only use the supplied NT 3-1 power supply unit. It is designed for your an-
tenna combiner and ensures safe operation.

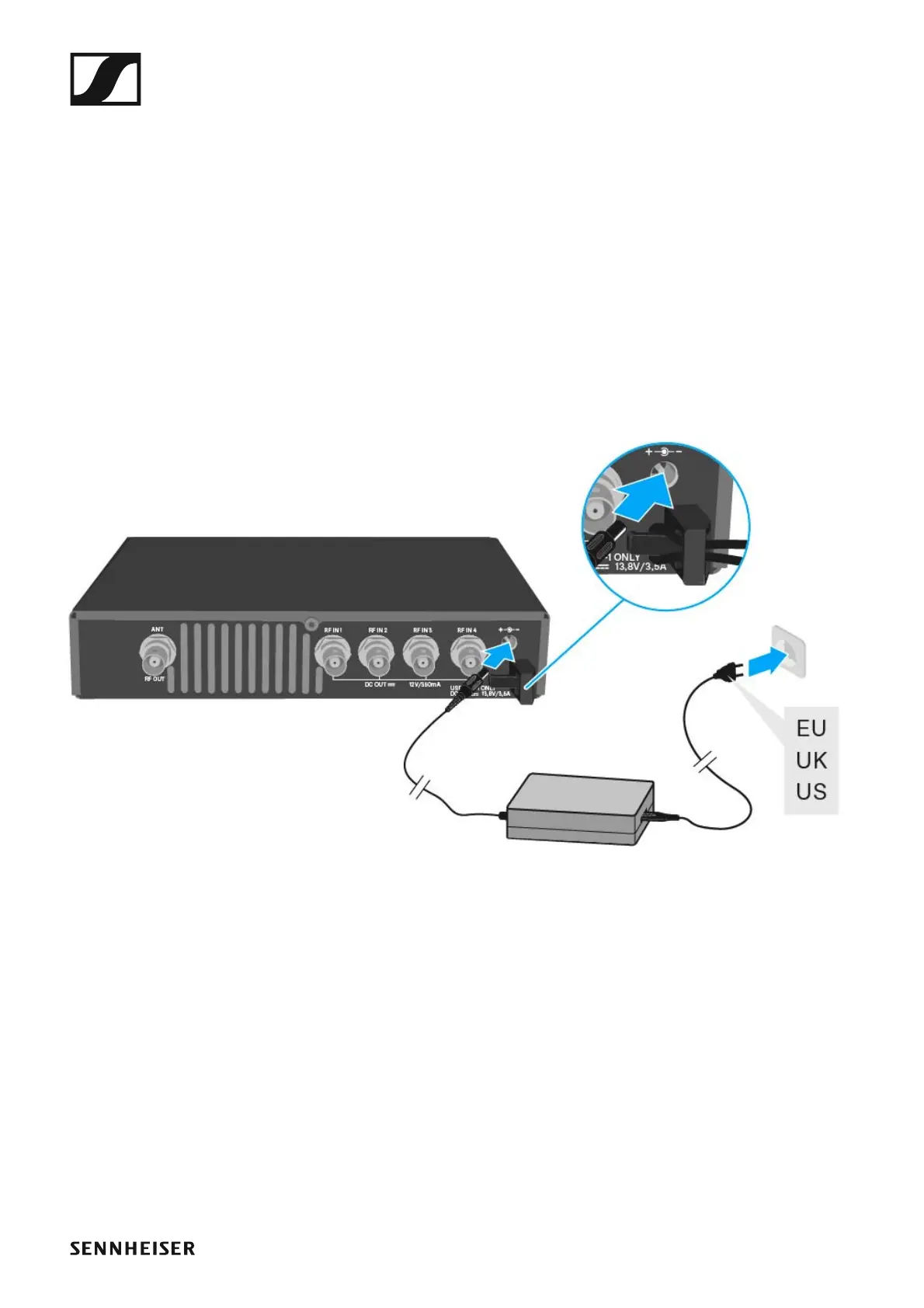

To connect the AC 41 antenna combiner to the power supply system:
▷ Connect the hollow jack plug of the power supply unit to the DC IN
socket of the antenna combiner.
▷ Pass the cable of the power supply unit through the cable grip.
▷ Plug the supplied mains cable into the power supply unit.
▷ Plug the mains cable into the wall socket.
To completely disconnect the AC 41 antenna combiner from the power
supply system:
▷ Unplug the mains cable from the wall socket.
▷ Unplug the hollow jack plug of the power supply unit from the DC IN
socket of the antenna combiner.
