Installing the SR IEM G4
34
Mounting two receivers side by side in a rack
If you want to mount two transmitters side by side, you can mount the
antennas to the front of the rack in combination with the AC 41 anten-
na combiner. Otherwise, you can use the ASA 1 antenna splitter in
combination with the AM 2 front mounting kit and an additional GA 3 rack
mounting kit. For more information, visit the ew G4 product pages at
www.sennheiser.com.

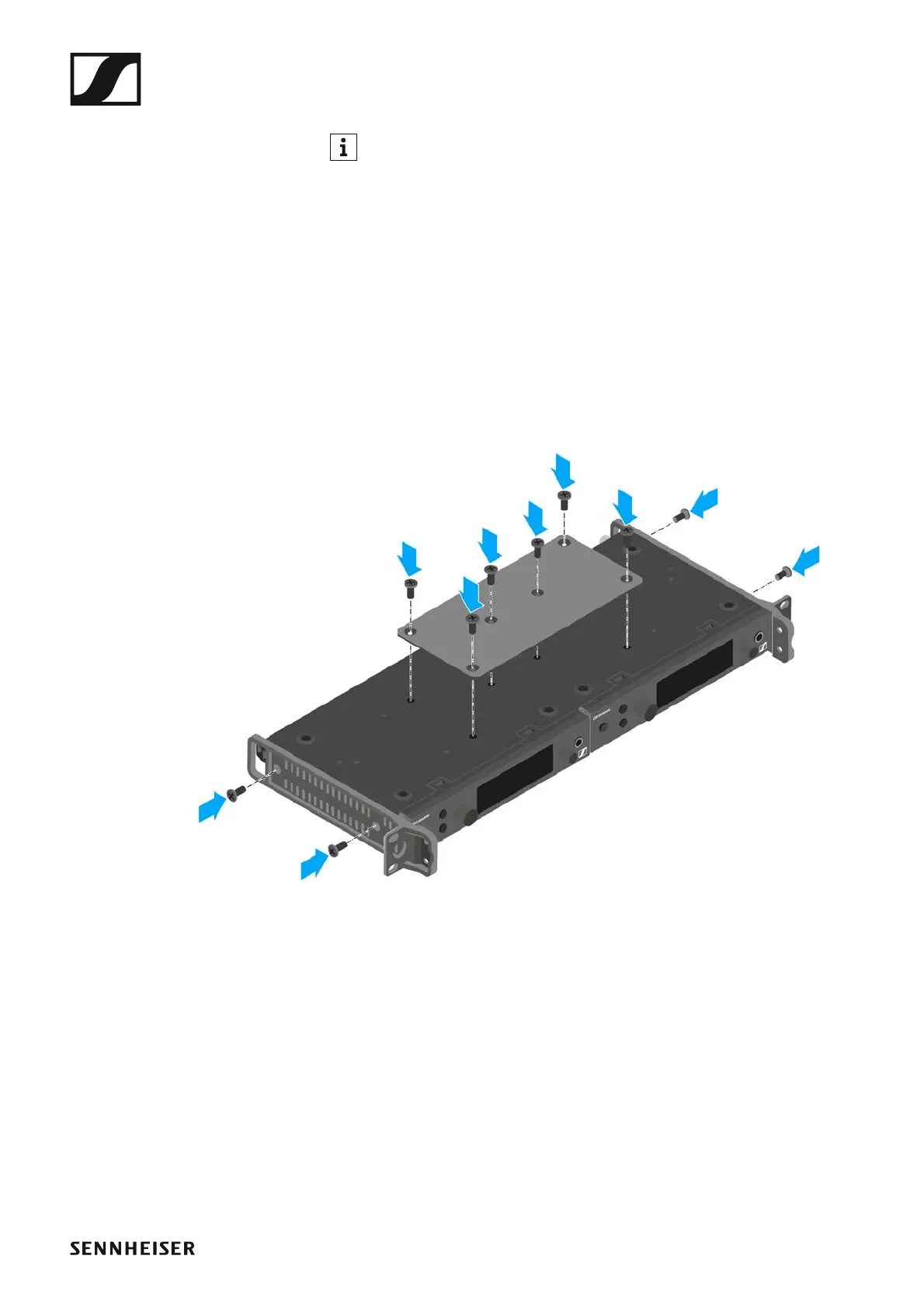

To mount the transmitter using the GA 3 rack mounting kit (optional acces-
sory):
▷ Place both transmitters upside down and side by side on an even sur-
face.
▷ Secure the jointing plate to the transmitters using the six recessed
head screws (M3x6).
▷ Secure the mounting angle.
►
▷ Slide the connected transmitters into a 19" rack.
▷ Secure the mounting angle to the 19" rack.
