Installing the SR IEM G4
33

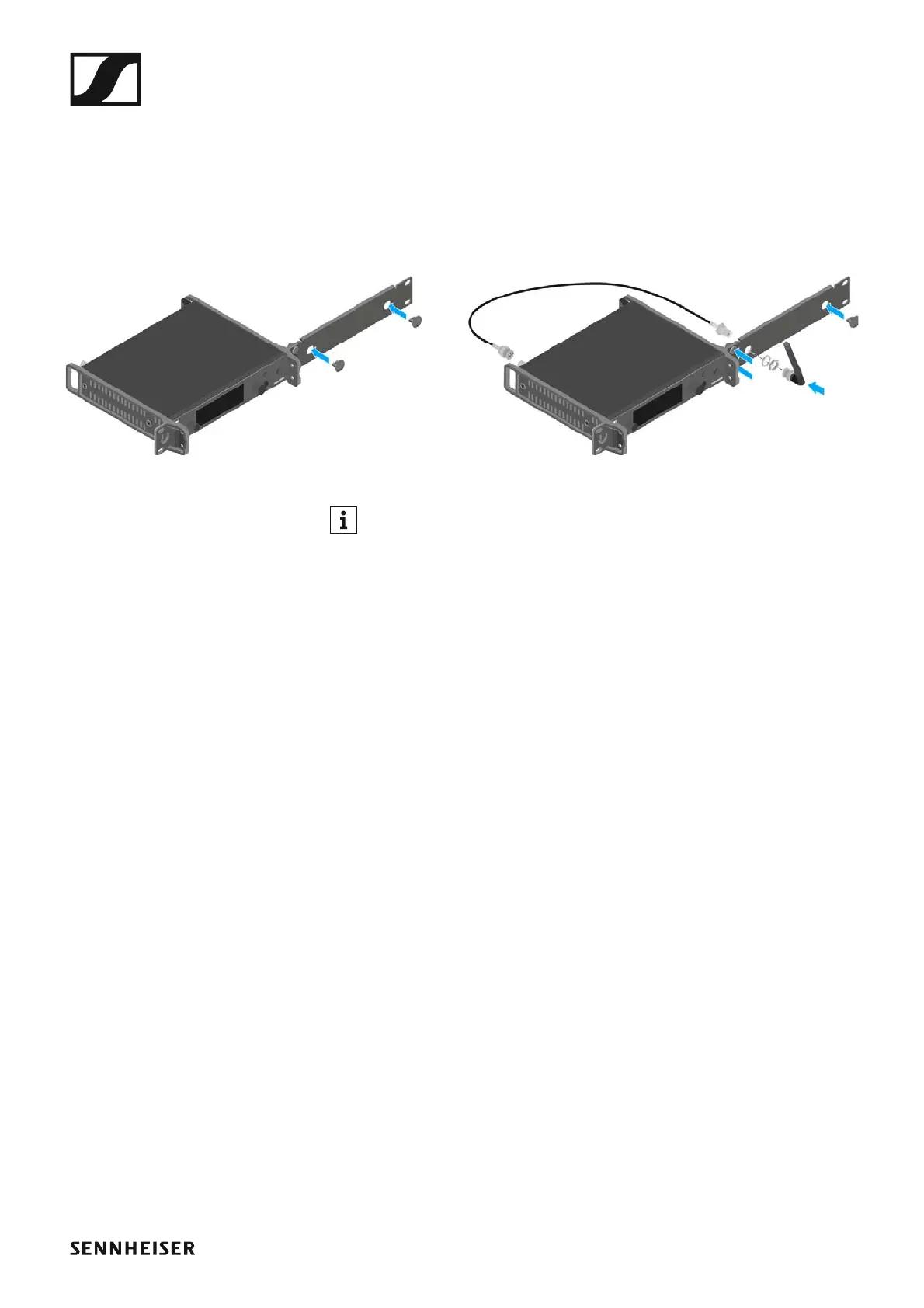

▷ Attach the antenna. You have the following options:
• Connect the supplied rod antenna on the rear side of the transmitter.
In this case, cover the antenna holes with the two covers (left dia-
gram).
• Attach the AM 2 antenna front mounting set (optional accessory) and
mount the rod antenna on the blanking plate (right diagram).
• Use a remote antenna, possibly in combination with the AC 41 anten-
na combiner.
►
If you are using more than one transmitter, we recommend using re-
mote antennas and, as needed, Sennheiser antenna accessories. For
more information, visit the ew G4 product page at www.sennheis-
er.com.
▷ Slide the transmitter with the mounted blanking plate into the 19" rack.
▷ Secure the mounting angle and the blanking plate to the 19" rack.
▷ Align the mounted antennas in a V-shape.
