Operation
References
2

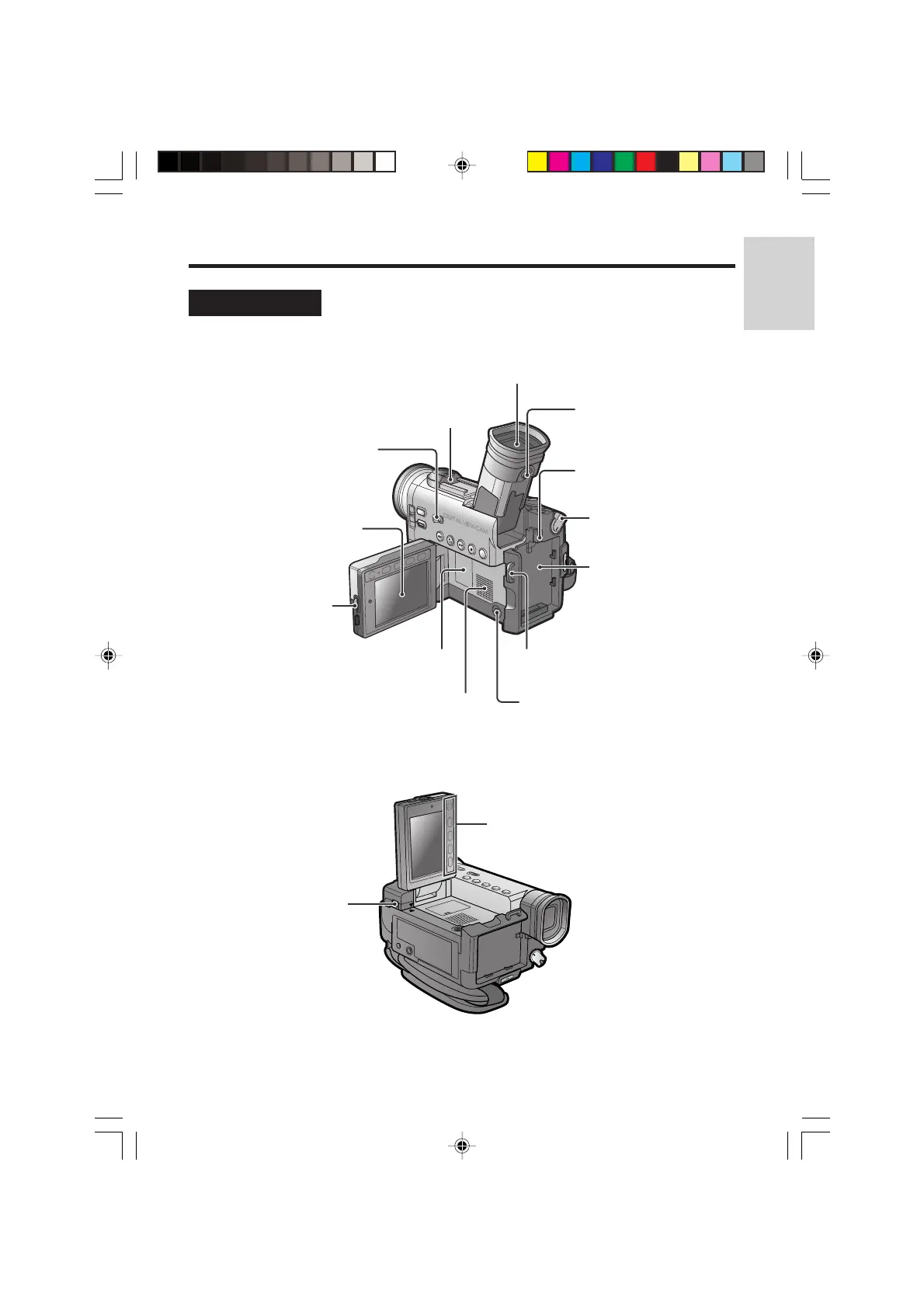

Left view
*Used when operating the LCD monitor-remote control using the optional detachable LCD cable.
Optional zoom microphone
mounting hole [p. 55]
Lithium battery compartment
[p. 14]
LCD monitor
OPEN release
button [p. 18]
LCD monitor [p. 18]
Viewfinder [p. 17]
Dioptre adjustment dial
[p. 17]
Power source
PUSH release button
[pp. 10, 11]
PC COMMUNICATION jack
[p. 69]
Speaker [p. 22]
Power source
connection panel
[pp. 10, 11]
Shoulder strap loop
[p. 13]
Power switch
(CAMERA/VCR
selection switch
[pp. 25, 26]
Media Selection switch
(TAPE/CARD selection
switch) [p. 25]
LCD monitor-remote
control operation
buttons* [p. 42]
LCD monitor
UNLOCK release
lever* [p. 41]
