Operating Instructions Chapter 3
CLV 42x bar code scanner
Product description
8 009 981/O078/16-08-2004 © SICK AG · Division Auto Ident · Germany · All rights reserved 3-5
3.1.5 View of line/raster scanner devices

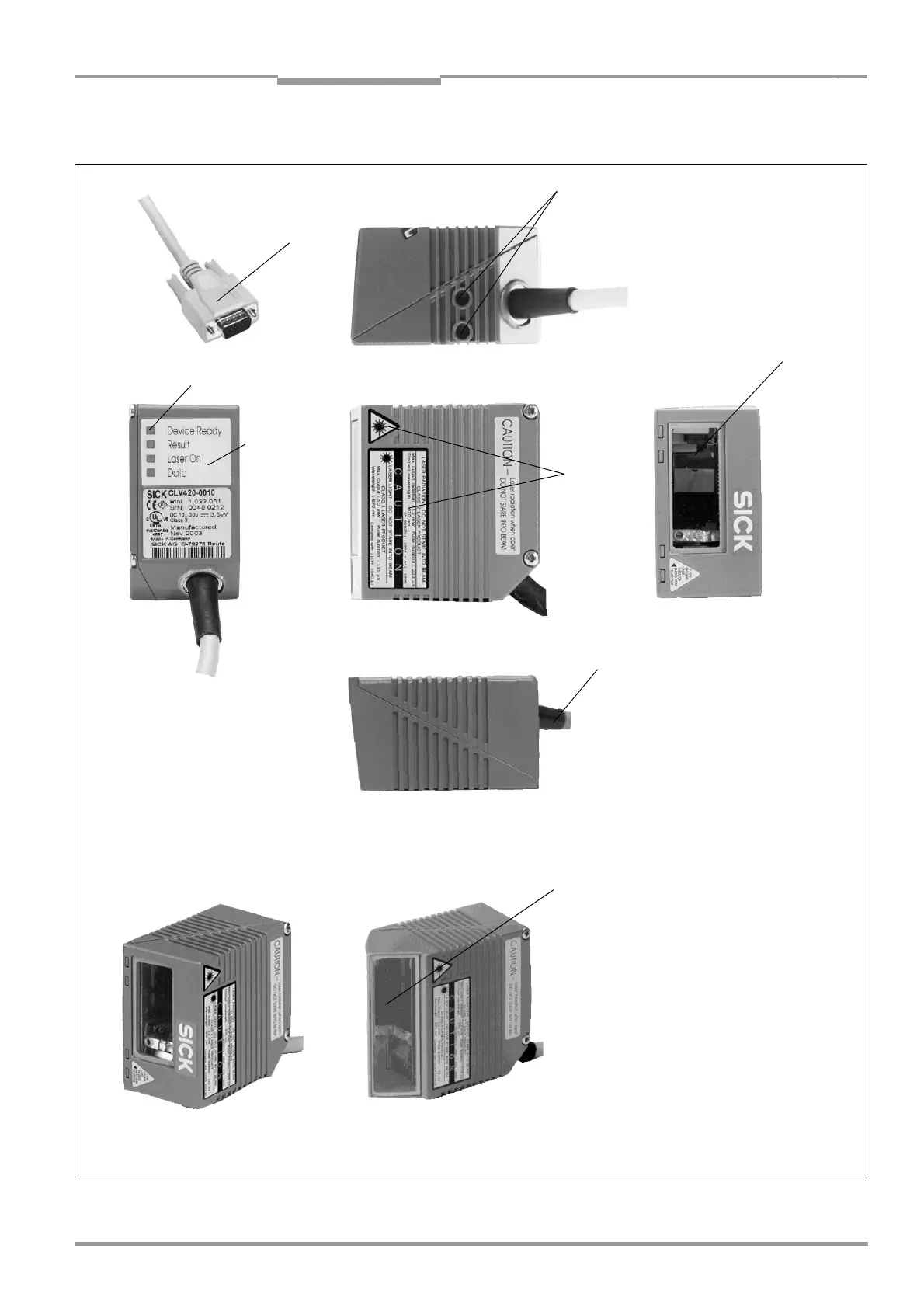

Fig. 3-1: CLV42x line/raster scanner with/without 105° angle attachment
2
5
4
Front reading window
1
6
7
Side reading window
8
3
Legend:
1 D Sub HD plug, 15-pin
2 Tapped blind holes M4,
6 mm (0.24 in) deep
3 Reading window
4 Laser warning labels
5 Connection cable
6 Sound opening of the beeper
(hidden)
7 LEDs (status indicators)
8 integrated angle attachment,
with 105° light reflection
