Operating Instructions
Chapter
9
CLV 42x bar code scanner
Technical data
8 009 981/O078/1
6-08-2004
©
SICK AG · Division Auto Ident
· Germany · All rights reserved
9-3
9.2
CLV

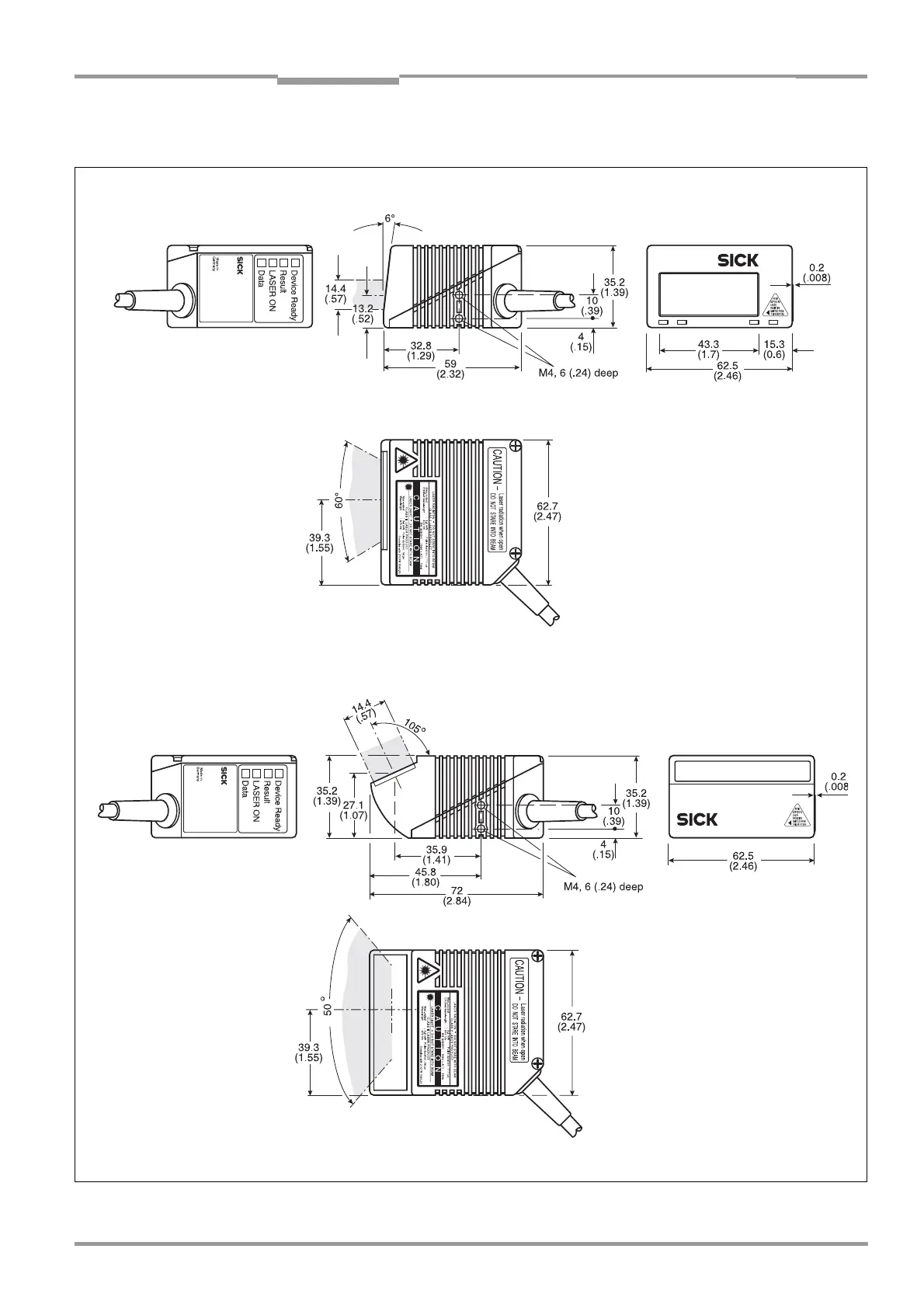

dimensional drawings
Fig. 9-1:
Dimensions of the CLV 42x line/
raster scanner
Line
/
Raster scanner with front light emergence:
All specifications in mm (in)
