Operating Instructions Chapter 4
CLV 42x bar code scanner
Installation
8 009 981/O078/16-08-2004 © SICK AG · Division Auto Ident · Germany · All rights reserved 4-3
The CLV can be installed using the following SICK brackets:
• Small mounting bracket, no. 2 020 077
• Large mounting bracket, no. 2 020 078
The brackets are designed to support a variety of installation positions and alignments of
the CLV in two planes.
Fig. 4-3 shows a mounting example.
The slots in the brackets allow a turning freedom of ±15° for the fine adjustment of the CLV.

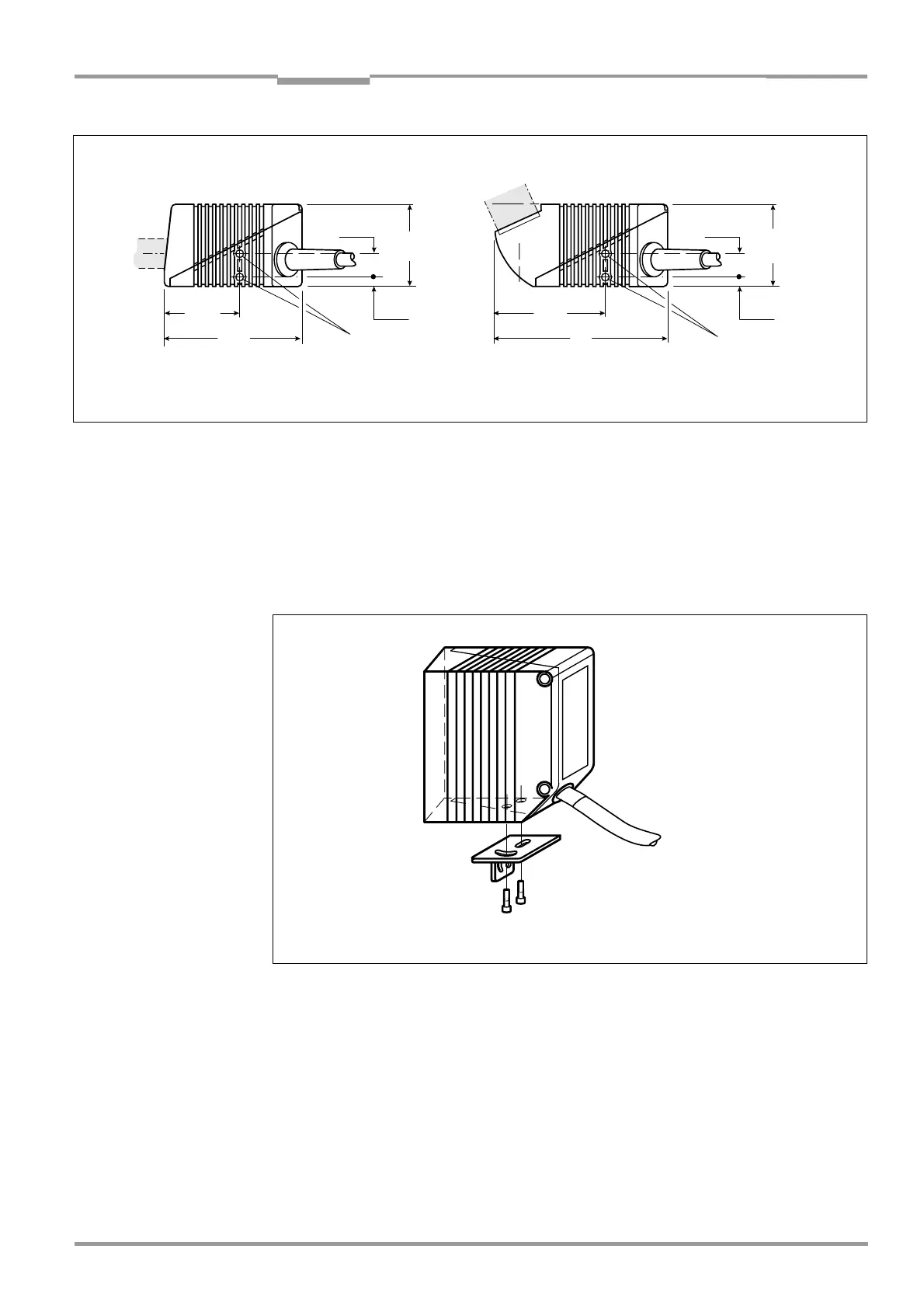

Fig. 4-2: Location of the securing threads on the CLV
45.8
(1.80)
72
(2.84)
32.8
(1.29)
59
(2.32)
M4, 6 (.24) dee
M4, 6 (.24) deep
10
(.39)
10
(.39)
35.2
(1.39
35.2
(1.39)
4
(.15)
4
(.15)
All dimensions in mm (in)
Fig. 4-3: Installation example: mounting the CLV with mounting bracket no. 2 020 077
