SICK DUSTHUNTER T User Manual

Start-up and Parameter Settings
DUSTHUNTER T · Operating Instructions · 8012428 V 2.0 · © SICK MAIHAK GmbH Germany 61
4.2.3 Scaling the measuring system for transmission measurement
b Carry out the steps listed in the "Transmission reference value" window in the "Adjust-
ment / Manual Adjustment / Transmission set reference“ directory (
→ p. 59, Fig. 44, ) →
Fig. 46,
→ p. 62, Fig. 47). The corresponding display changes to yellow when step 1 to 6
(DUSTHUNTER T50/T200) or 1 to 7 (DUSTHUNTER T100) is in process.

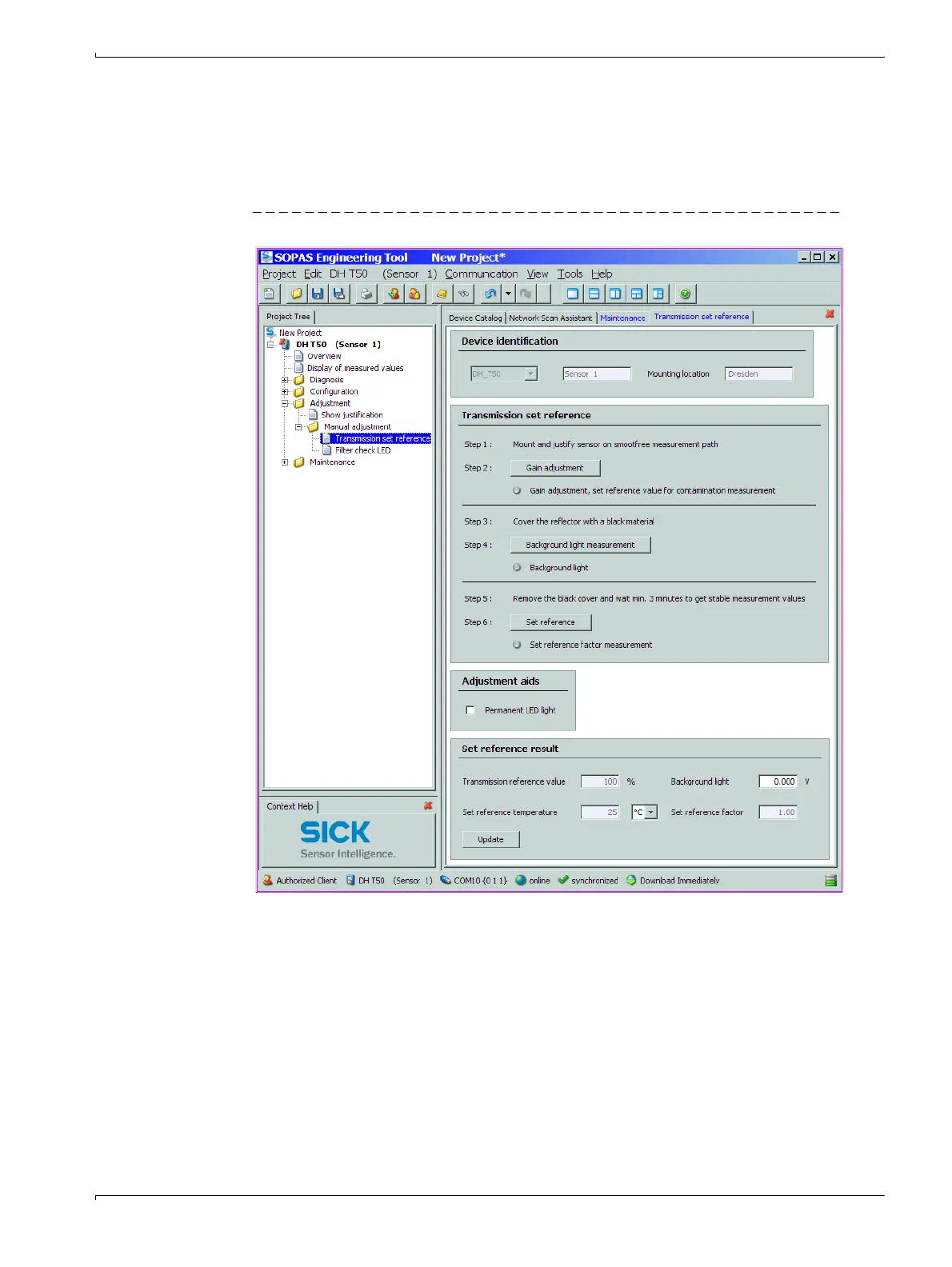

Figure 46 "Adjustment / Manual Adjustment / Transmission set reference“ directory (DUSTHUNTER T50)
