Start-up and Parameter Settings
4.4.4 Setting the analog outputs parameters
Select the "Configuration / I/O Configuration / Output Parameters DUSTHUNTER“ directory
to set the analog outputs.

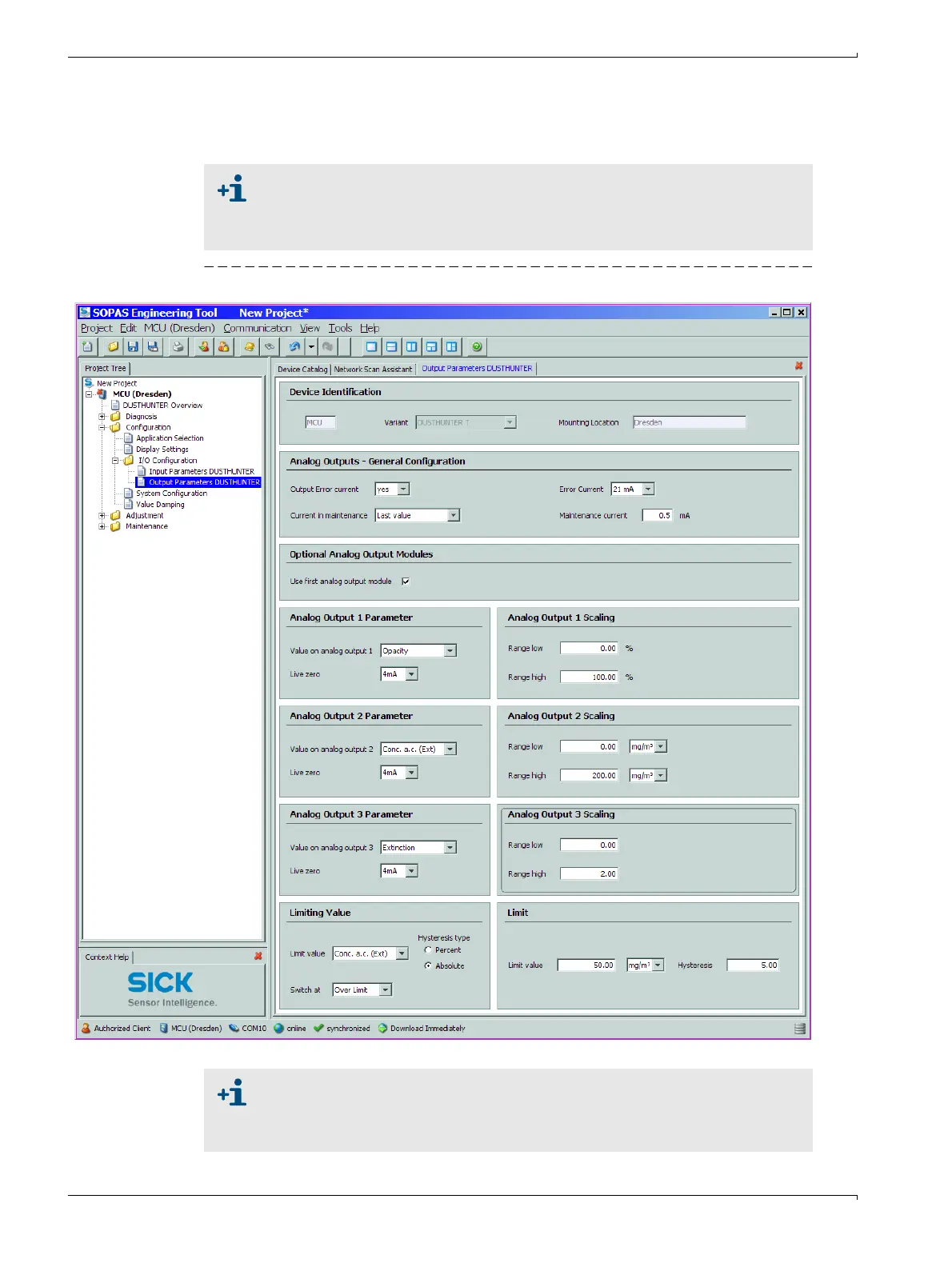

Figure 53 "Configuration / I/O Configuration / Output Parameters DUSTHUNTER“ directory
● Default values → p. 66, §4.4.2
● In order to output the dust concentration under standard conditions
("Concentration s.c." (Ext)), set the parameters for the analog inputs
according to §4.4.5.
The "Analog Output 2(3) Parameter" and "Analog Output 2(3) Scaling" fields
only appear after activation of the "Use first Analog Output module" checkbox
and when an AO module is plugged in (standard on DUSTHUNTER T100 and
DUSTHUNTER T200).
