The Flexi Loop nodes and the Flexi Loop accessory have an LED
2
)
which indicates the
communication status and the status of the Flexi Loop node. The designation MS =
module status comes from the Flexi Soft safety controller.
EMSS LEDs, AUX_IN-LED, AUX_OUT-LED

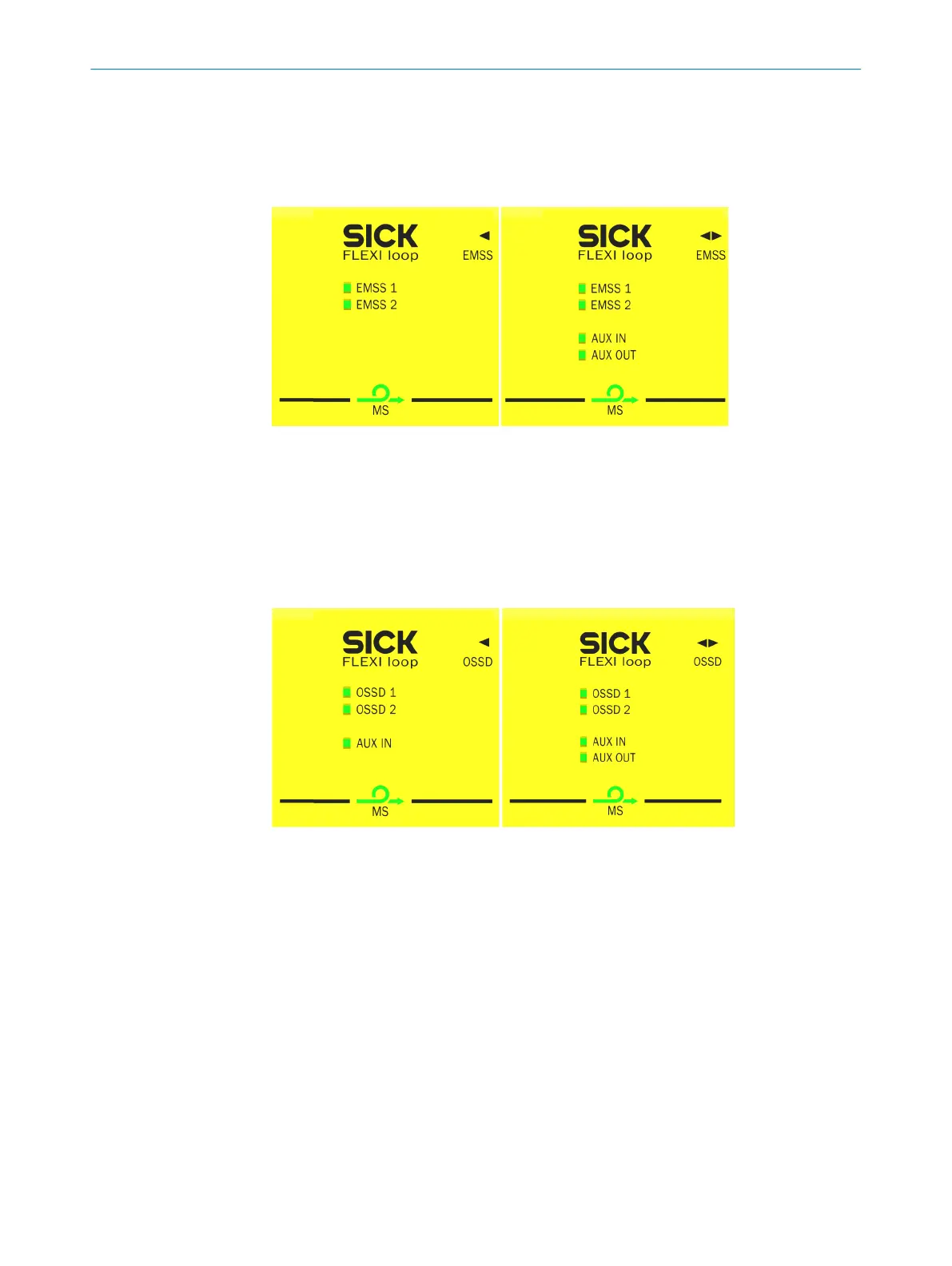

Figure 22: LEDs of the EMSS Flexi Loop nodes
The EMSS LEDs indicat
e the status of switching contact 1 or 2 on the safety switch con‐
nected.
The AUX_IN and AUX_OUT LEDs indicate the status of the non-safe input and the non-
safe output respectively.
OSSD LEDs, AUX_IN-LED, AUX_OUT-LED
Figure 23: LEDs of the OSSD Flexi Loop nodes
The OSSD LEDs indicat
e the status of the OSSDs connected.
The AUX_IN and AUX_OUT LEDs indicate the status of the non-safe input and the non-
safe output respectively.
2)
The onl
y exception is the Flexi Loop YCON adapter.
PRODUCT DESCRIPTION 3
8015836/YT10/2016-05-24 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi Loop
25
Subject to change without notice
