β ≤ ± 3°
1
2
1

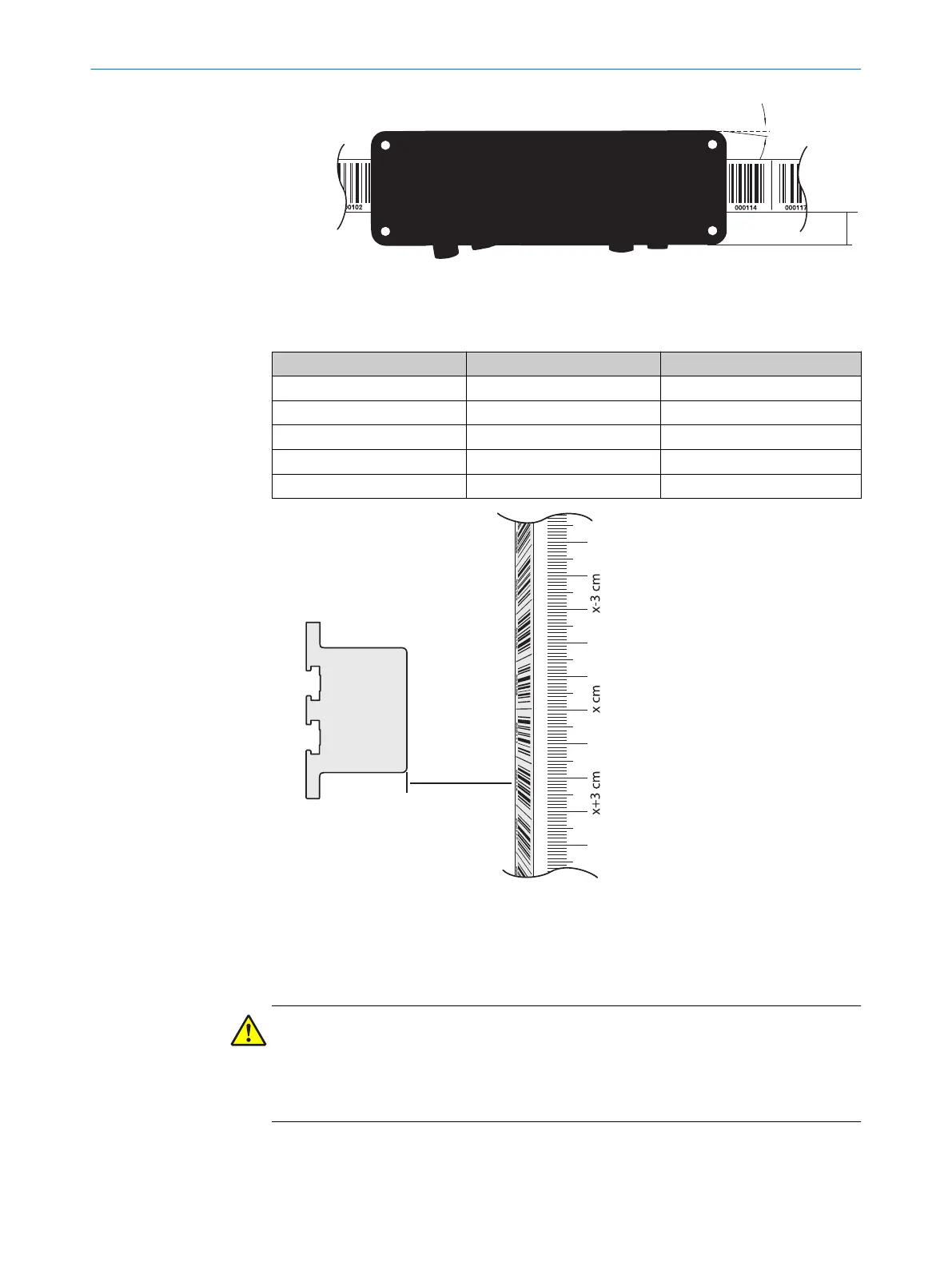

Height of bar code tape
2
Distance between lower edge of sensor unit and lower edge of bar code tape
Table 4: Vertical distance dependent upon the bar code tape
Height of bar code tape Distance Tolerance
25 mm 13 mm ±3.5 mm
30 mm 9 mm ±3.5 mm
40 mm 4 mm ±8.5 mm
60 mm -6 mm ±18.5 mm
100 mm -26 mm ±38.5 mm
100 ± 20 mm
(3.94 ± 0.78)
The mounting requirements set out in the operating instructions for the OLM100 Hi
mus
t also be followed.
5.2 Mounting the bar code tape
WARNING
T
here is a risk of death or serious injury as diagnostics for the protective device are not
reliable.
Value range monitoring is implemented in the safety system so that diagnostics can be
performed. 0 is therefore not permitted as a minimum value and start value.
5 MOUNTING
22
O P E R A T I N G I N S T R U C T I O N S | Safe Linear Positioning 8020941/12O9/2019-08-05 | SICK
Subject to change without notice
