BG100.1 OLM sensor 1 - SSI master
T
his element must be used when the process controller has an interface for an SSI
master. In this case, it is the MOC1 module that generates the clock rather than the
process controller providing it.
BG100.1 OLM Sensor 1 - SSI listener
This element must be used when the process controller has an interface for an SSI
master. In this case, the process controller provides the clock.
WARNING
T
here is a risk of death or serious injury as diagnostics for the protective device are not
reliable.
Different data transmission rates must be set for OLM sensor 1 and OLM sensor 2 for
diagnostic purposes. The transmission rate for OLM sensor 2 is 167 kBaud. It is recom‐
mended that the lowest possible data transmission rate is selected for OLM sensor 1
(100 kBaud).
b
Select the lowest possible data transmission rate for OLM sensor 1 (100 kBaud).
The ENC2 input is already set as SSI master and is used for internal plausibility checks.
T

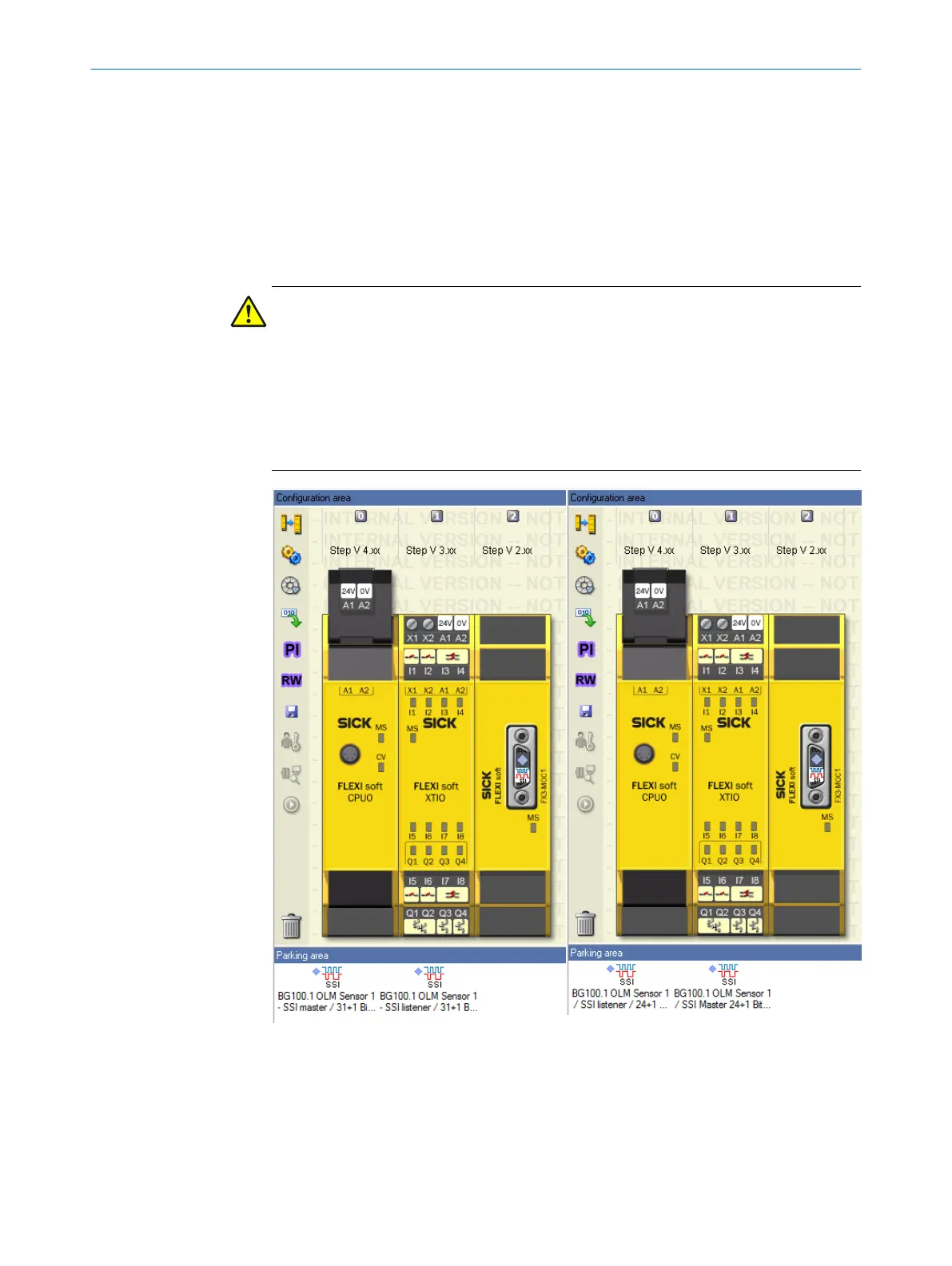

he correct element (SSI master or SSI listener) must be dragged from the parking area
and dropped at the ENC1 input of the MOC1 module. Double-click on the SSI symbol to
open up the element settings.
