6 COMMISSIONING
8017768/12AX/2019-05-31|SICK
OPERATING INSTRUCTIONS | TIC
Subject to change without notice

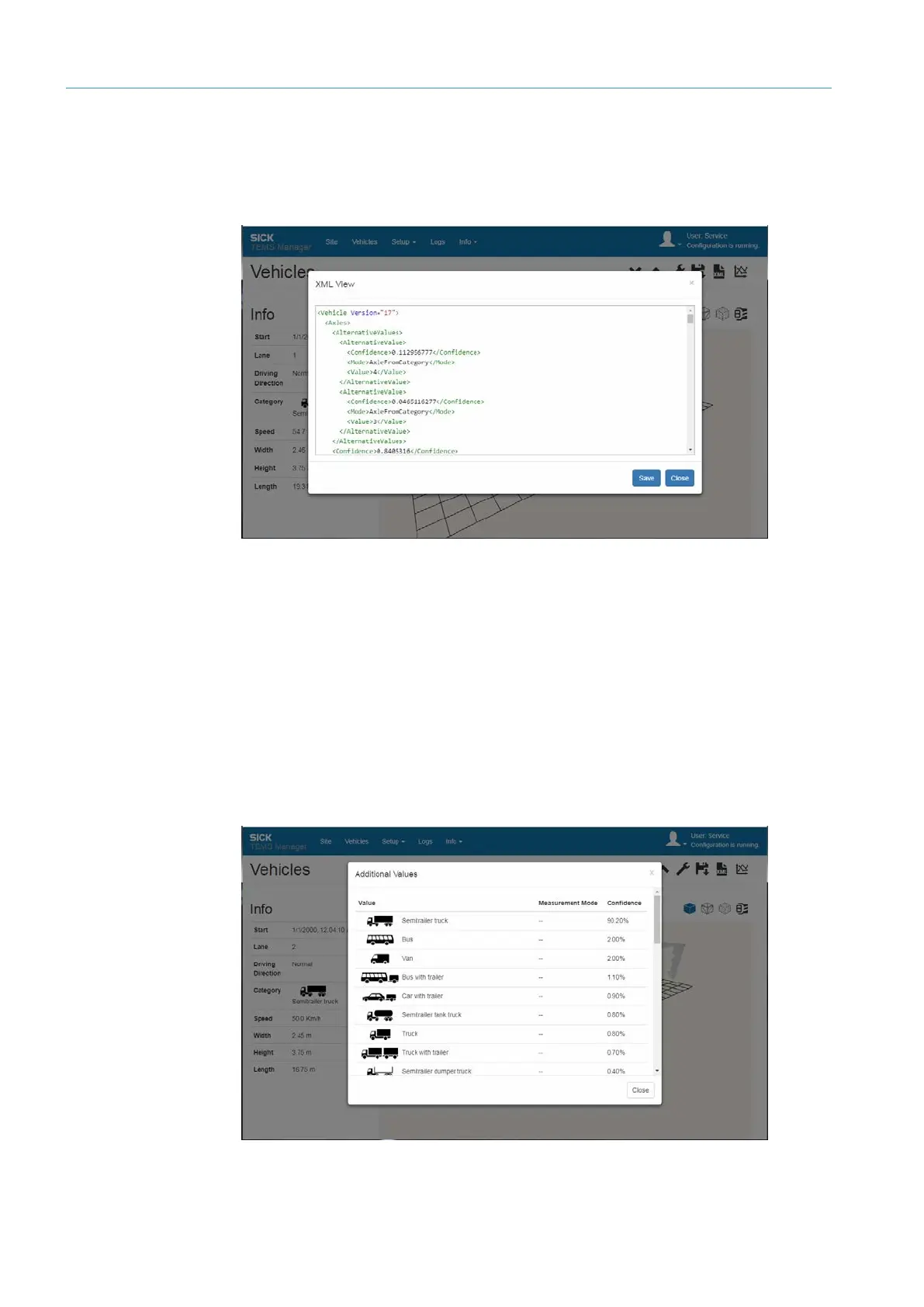

Displaying the vehicle data in XML format
▸
Click the Display vehicle data as XML icon to display the vehicle data in the Info area
in XML format. This is the format that is used for transferring the measurement results
to the customer system.
Returning to the vehicle list
▸
Go to the menu bar and click the Vehicles workspace option.
This opens the list of the last 200 vehicles measured.
6.8.3.2 Vehicle classes
The Vehicle Classifier system function is used to report the vehicle class under
Information. The class is chosen from all classes in the set category system.
▸
Click inside the “Category” field to open the Additional Values window, which displays
a list of all the vehicle classes within the category system.
This enables you to see the confidence level with which the vehicle has been assigned
to the class in question.
