Siemens Cerberus PYROTRONICS MXL User Manual

4 - 17
CSM-4 Connections and Ratings
RELEASING SERVICE (Per NFPA 12A,
NFPA 13, and NFPA 2001)
All wiring must be in accordance with
Article 760 of NEC and the local build-
ing codes.
Set all positions of switch S2 to OFF
(OPEN).
Electrical Ratings:
Solenoids 24 VDC
16.8 watts max
700mA max
Supervisory 12mA max
Alarm 800mA max

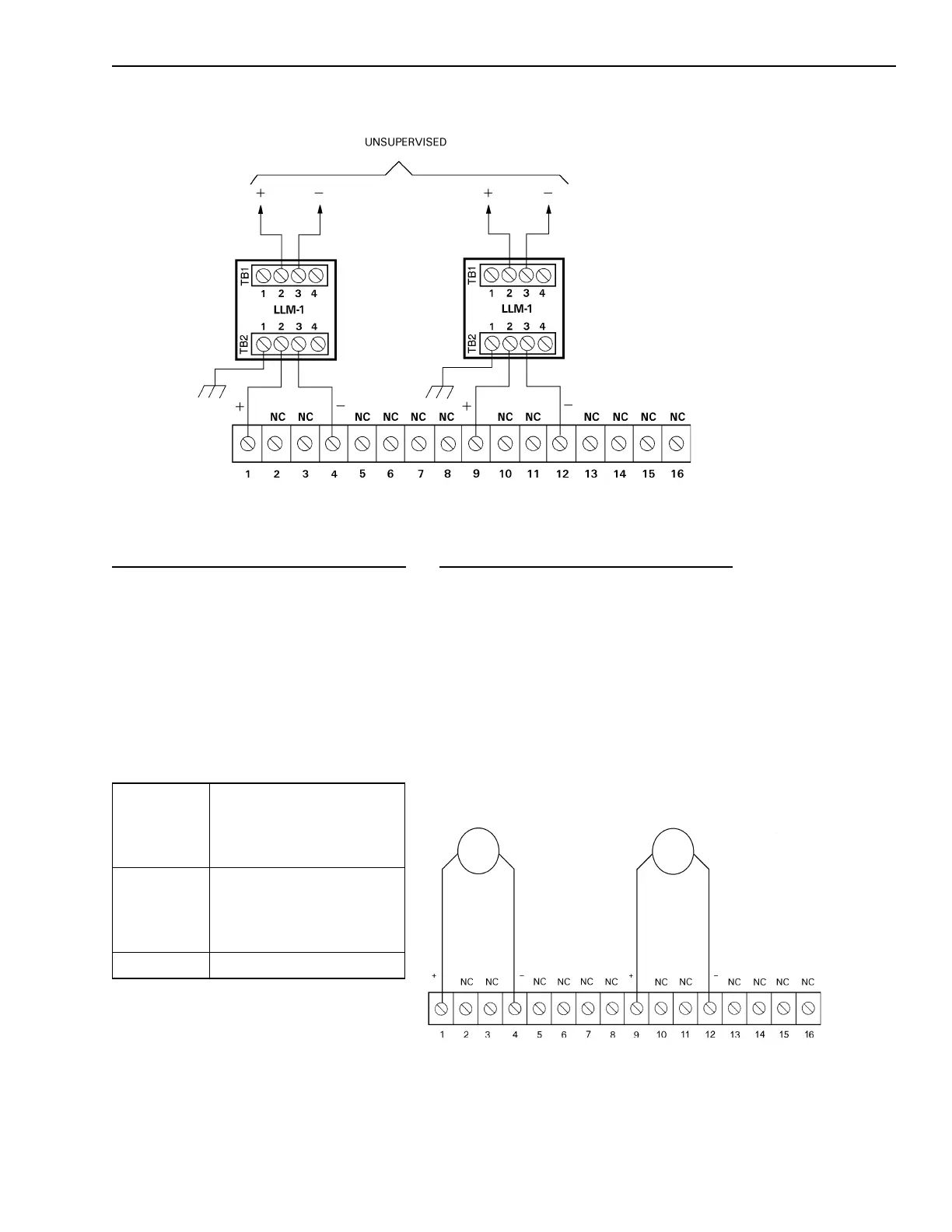

CSM-4 Leased Line Circuit Wiring
NOTES
1. Power limited to
NFPA 70 per NEC 760.
2. External resistance:
2K-5K ohms.
3. Both circuits are not
supervised.
4. Polarity shown in
supervisory state.
CSM-4 Loop Wiring for use as Releasing Service
(per NFPA 12A, NFPA 13, and NFPA 2001)
NOTES
1. Releasing zones are
not power limited.
2. Maximum resistance:
3 ohms total.
3. No end of line device
required.
4. Both circuits are
supervised for opens
only.
5. Polarity show in
supervisory state.
COMPATIBLE SOLENOIDS
NFPA 13
ASCO Model T8210A107
ASCO Model R8210A107
ASCO Model 8210A107
SKINNER Model LV2LBX25
NFPA 12A
PYRO P/N 500-982631
PYRO P/N 500-286652
PYRO P/N 500-083377
PYRO P/N 500-086929
NFPA 2001 PYRO P/N 500-486500
MOM-4 (TB1, TB2,
TB3,or TB4)
or
MOM-2 (TB2 or TB4)
MOM-4 (TB1, TB2,
TB3,or TB4)
or
MOM-2 (TB2 or TB4)
