4 - 46
MOI-7, MOD-16, MID-16 Connections and Ratings
enclosure. Remove ICs U1 and U12
and make no connections to TB1.
24V Return
TB2 connects to the return side of the
power supply used with the MOD-16s
and MID-16s. There are two positions
on the TB2position 1 connects to the
MOD-16/MID-16 and position 2 to
PSR-1, TB3-2, or to PS-35, terminal 6.
MOD-16 and MID-16 Connection
P4 is the connector for the MOD-16/
MID-16 modules. Connect the first
MOD-16/MID-16 in the system using a
10-wire cable P/N 555-190940. Be sure
that the locking tab on the cable en-
gages the rib on P4.

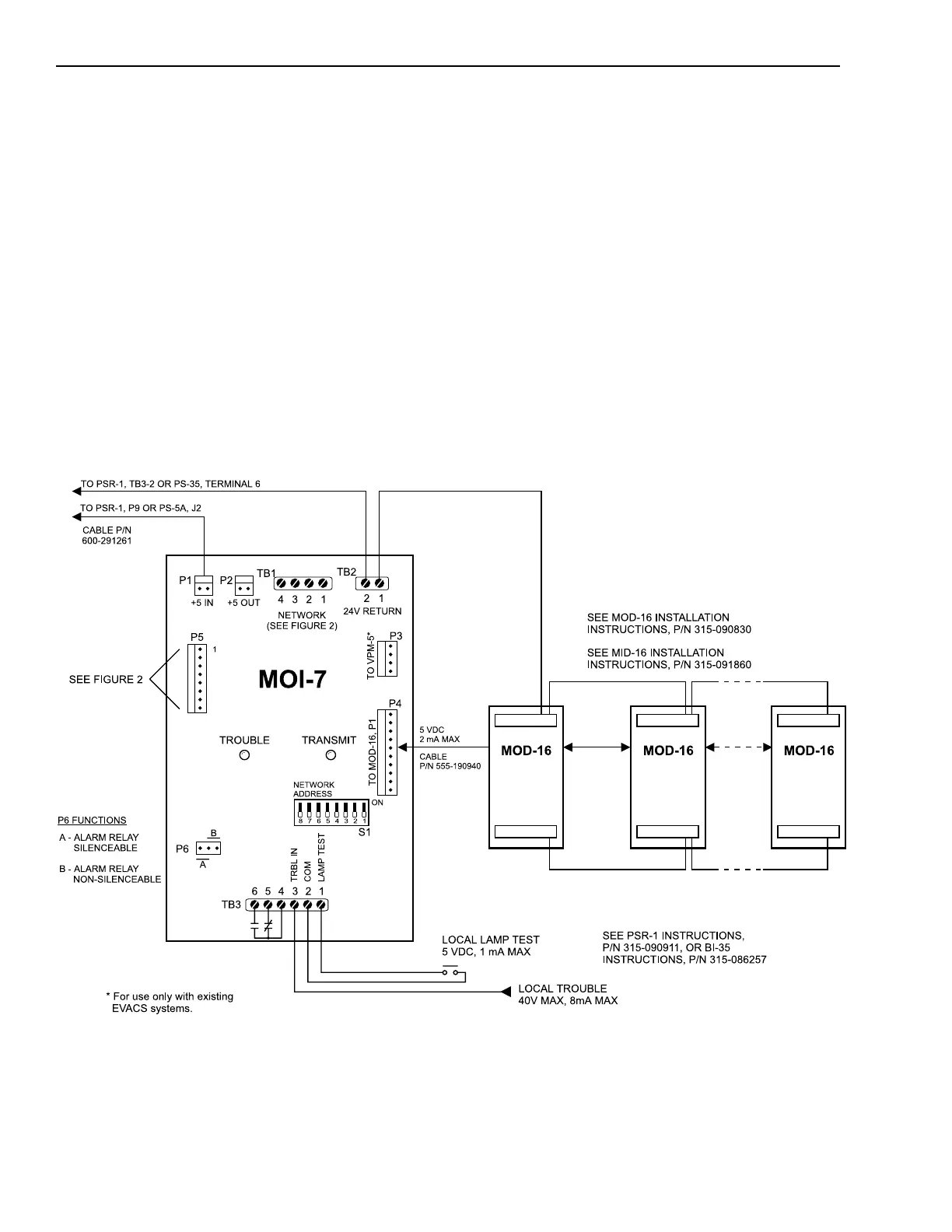

MOD-16 and MID-16 Wiring (Figure 1)
