4 - 47
MOI-7, MOD-16, MID-16 Connections and Ratings
Local Trouble Input
When terminal 3 of TB3, the local
trouble input, is driven high, it reports a
trouble condition to the MXL. This
input is protected and has a maximum
input rating of 40V. Terminal 2 of TB3
is the common for this input.
Local Lamp Test
Terminal 1 of TB3 is used for a local
lamp test. When this input is pulled
low, the MOD-16 outputs do a lamp
test. Use a normally open momentary
switch connected between terminal 1
and 2 of TB3.
NOTES
1. Power limited to
NFPA 70 per NEC 760.
2. Minimum wire size:
18 AWG.
3. Maximum resistance:
80 ohms per pair.
4. Use twisted pair or
shielded twisted pair.
5. Terminate the shield
ONLY at the MMB-1/-2
enclosure.
6. Maximum voltage:
8V P-P.
7. Maximum current:
150mA.
8. For Style 4 network
omit all Network B
connections and
substitute NET-4
modules for NET-7s.
9. For Remote Style 7
connection, the MOI-7
must not be at the end
of the network.

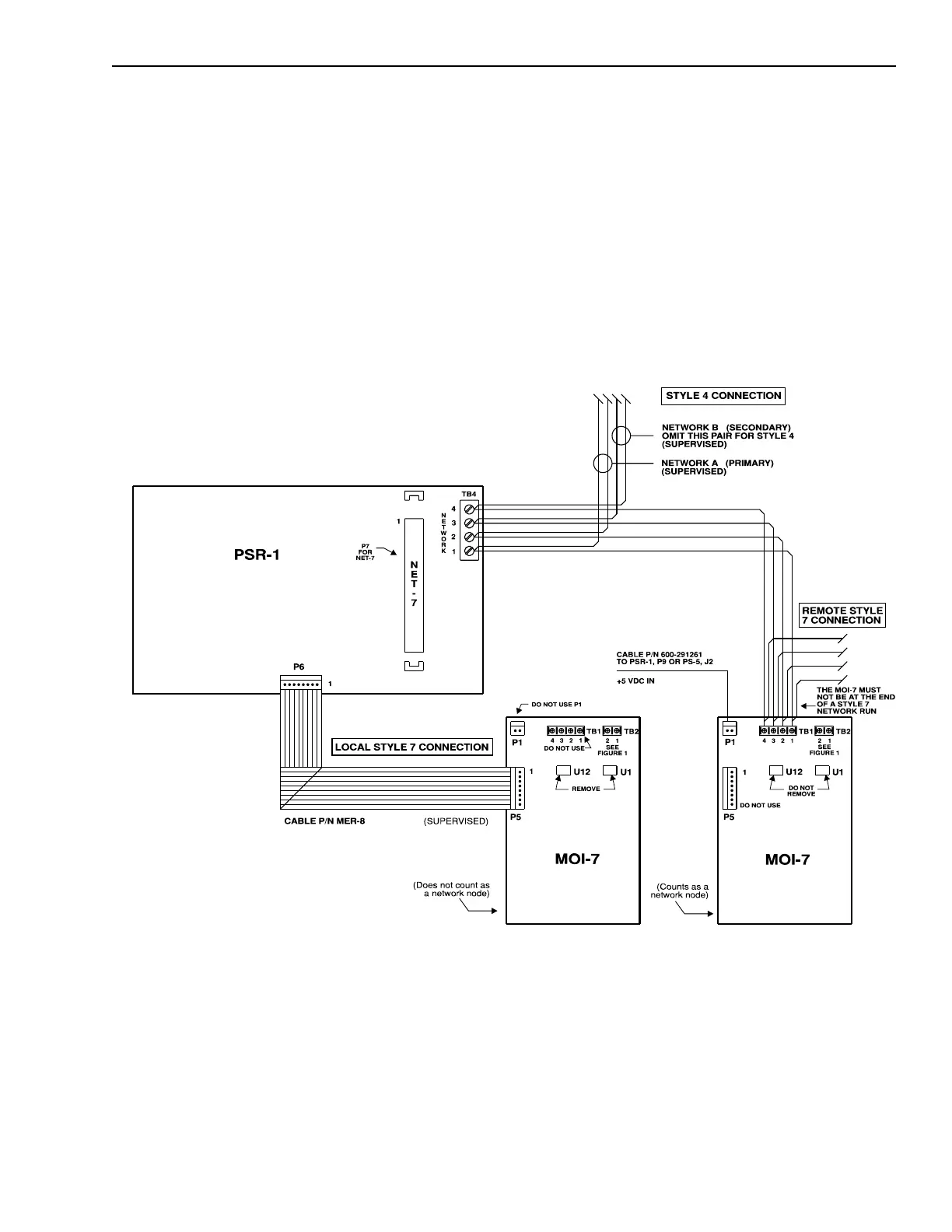

MXL Network Wiring (Figure 2)
