Siemens Cerberus PYROTRONICS MXL User Manual

4 - 49
MOI-7, MOD-16, MID-16 Connections and Ratings
NOTES
1. 18 AWG minimum for
LED and 24V lamp
connections.
2. 14 AWG minimum for
supply connections
(TB1-9 and 10, TB2-9
and 10).
3. All wiring must be
in accordance with
NEC 760.
4. All wiring must
conform to local codes
and to the authority
having jurisdiction over
the installation.
5. All wiring to MID-16,
MOD-16, or MOI-7
(non-network)
modules is unsuper-
vised. Any wiring
leaving the enclosure
must be within 20 feet,
in rigid conduit, and
must not leave the
room.
6. For additional
information see
MOI-7 Installation
Instructions,
P/N 315-092799.
7. A maximum of 8
MOD-16s can be used
with the MOI-7.
8. Both TB1-9 (or 10) and
TB2-9 (or 10) must be
connected to the
common of the power
supply.
MOD-16
Electrical ratings:
Supervisory 40V peak
2mA
Alarm 40V peak
850mA
Maximum current
for each output 50mA

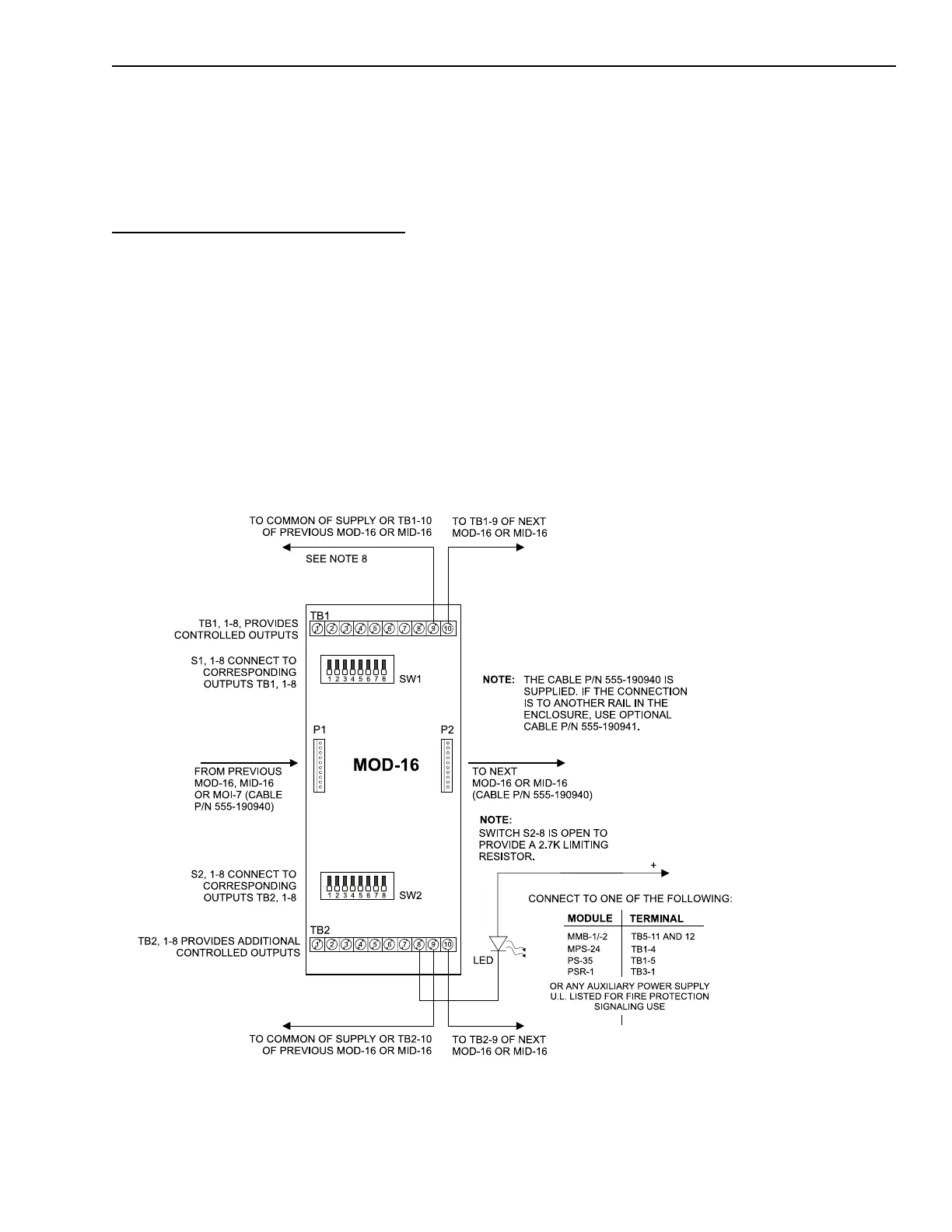

MOD-16 Wiring
SEE NOTE 8
