Siemens Cerberus PYROTRONICS MXL User Manual

4 - 50
MOI-7, MOD-16, MID-16 Connections and Ratings
NOTES
1. 18 AWG minimum for
all input connections.
2. 14 AWG minimum for
supply connections
(TB1-9 and 10, TB2-9
and 10).
3. All wiring must be
in accordance with
NEC 760.
4. All wiring must
conform to local codes
and to the authority
having jurisdiction over
the installation.
5. All wiring to MID-16,
MOD-16, or MOI-7
(non-network) modules
is unsupervised. Any
wiring leaving the
enclosure must be
within 20 feet, in rigid
conduit, and must not
leave the room.
6. For additional
information see
MOI-7 Installation
Instructions,
P/N 315-092799
7. A maximum of 8
MID-16s can be used
with the MOI-7.
8. P1 is connected in
parallel with TB1.
9. P2 is connected in
parallel with TB2.
MID-16
Electrical ratings:
Module power 5VDC
2mA max
Input ratings:
Input voltage range 18-31 VDC
Input impedance 8K ohms
Input current 2mA max

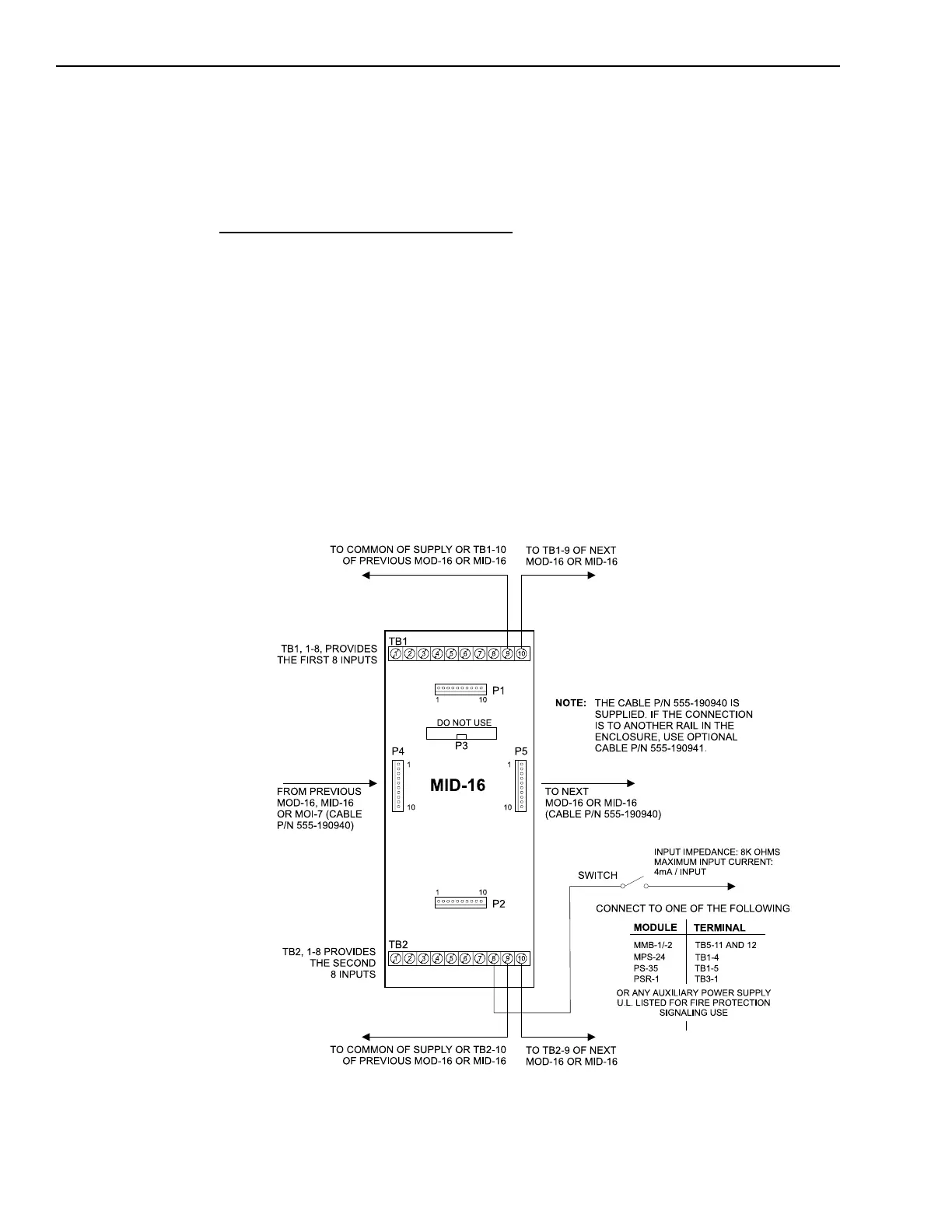

MID-16 Wiring
