4 - 69
PIM-2/PAL-1 Connections and Ratings
NOTES
1. Maximum distance from PIM-2 to parallel printer is 6 feet.
The modules must be in the same room.
2. Connect PIM-2 power (PWR) to the 5 VDC, 600mA
transformer supplied with PIM-2. The transformer
requires 120 VAC, 60 Hz, 0.5A max.
3. PIM-2 input and output connectors are DB-25 female.
4. Pressing RESET on the PIM-2 causes the unit to read
the SW1 settings. The status LED is lit when the unit is
powered. Do not use the COPY button.
5. Use revision 7.0 or higher of CXL firmware to support
this option.
6. PAL-1 is supervised for AC, on/off line, paper out,
paper jam, and connection to PIM-2.
7. PIM-2 is supervised for power, connection to printer,
and CXC-2.
8. Set the dipswitches on the back of the PIM-2 for 9600
baud, odd parity, 7 data bits, 1 stop bit, and software
flow control (XON/OFF).

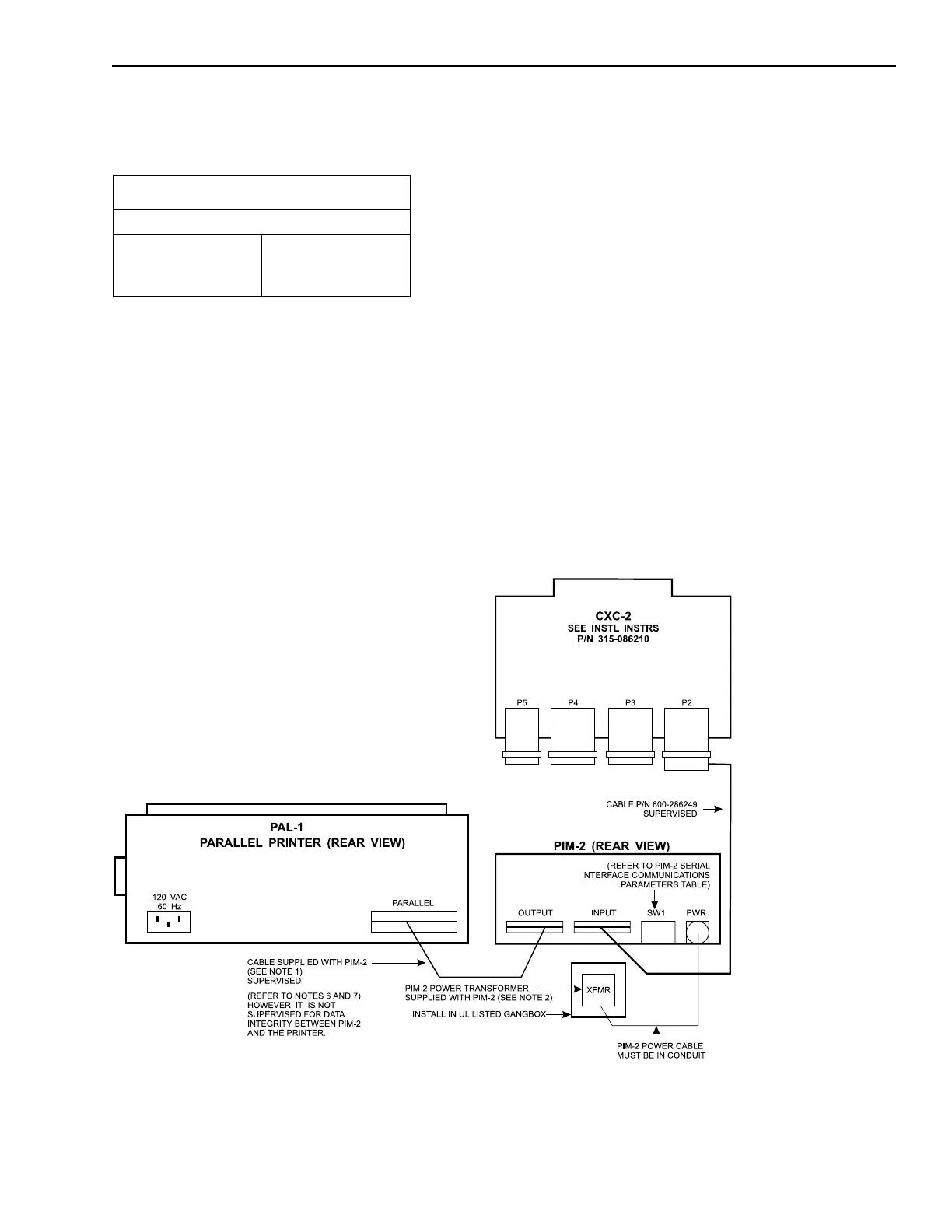

PIM-2 to CXL Wiring
PIM-1/CXC-2 (with D-Connector) TO PIM-2
INTERFACE REQUIREMENTS (Supplied by installer)
PIM-1/CXC-2 Pin No. to PIM-2 Input Pin No.
2 (RxD)
3 (TxD)
7 (GRD)
20 (BUSY)*
2 (TxD)
3 (RxD)
7 (GRD)
20 (DTR)*
Use 18 AWG wire minimum.
*Pin 20 is not used on the CXL. The CXL uses software
flow control only.
