4 - 81

PSR-1, NET-4, NET-7, NET-7M Connections and Ratings

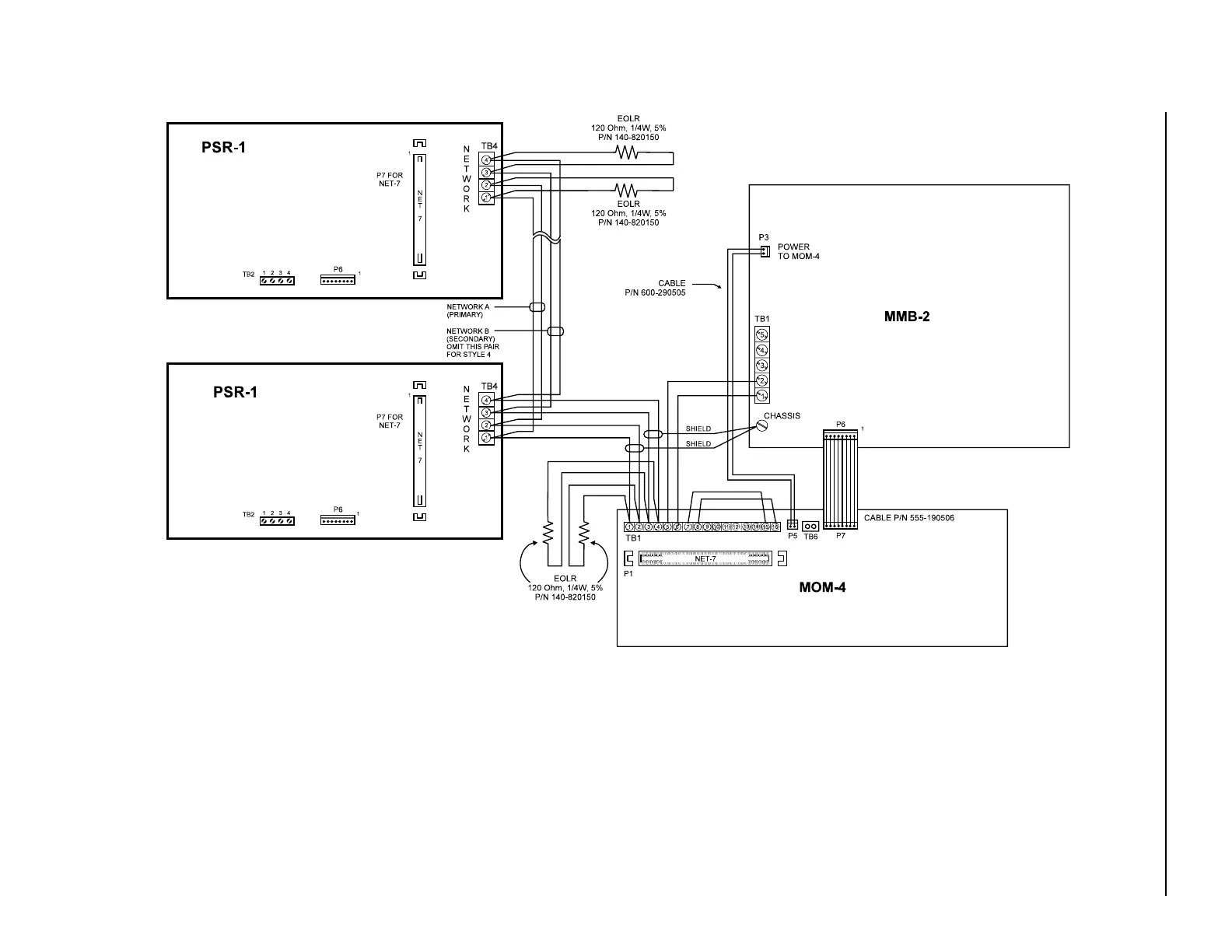

NET-7 Wiring

NOTES

1. Power limited to

NFPA 70 per NEC 760.

2. Minimum wire size:

18 AWG.

3. Maximum resistance:

80 ohms total per pair.

4. Use twisted pair or

shielded twisted pair.

5. Terminate the shield

ONLY at the MMB-2

enclosure.

6. Maximum voltage:

8V P-P.

7. Maximum current:

150mA.

8. Each pair

independently

supervised.
