PSR-1, NET-4, NET-7, NET-7M Connections and Ratings

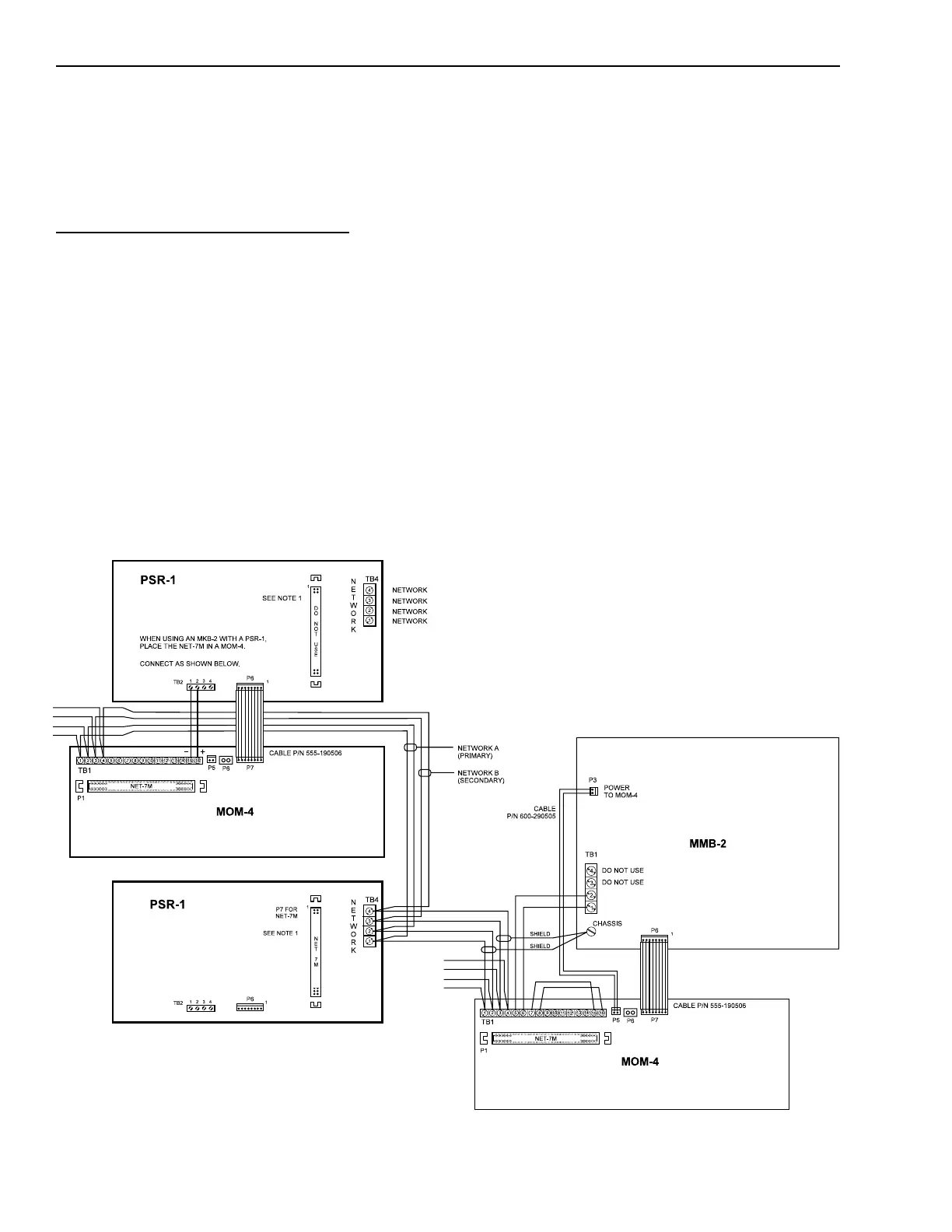

NET-7M Wiring
NOTES
1. Power limited to
NFPA 70 per NEC 760.
2. Minimum wire size:
18 AWG.
3. Maximum resistance:
80 ohms total per pair.
4. Use twisted pair or
shielded twisted pair.
5. Terminate the shield
ONLY at the MMB-1/-2
enclosure.
6. Maximum voltage:
8V P-P.
7. Maximum current:
150mA.
8. Each pair
independently
supervised.
9. NET-7M must not be at
the end of the network.
NET-7M
Electrical ratings:
Supervisory 5V
120mA avg
140mA max
Alarm 5V
120mA avg
140mA max
Battery 24V
30mA
