4 - 133
ZC2-8B Connections and Ratings
ALL ZONES SUPERVISED, POWER LIMITED
Power Limiting is accomplished using the PLC-4 and
PL864-25A, -70A, or -25S as required
All wiring must be in accordance with Article 760 of
NEC or the local building codes.
Maximum Loop Resistance:
70.7V RMS, 6.5 ohms max, 25 watts (0.35A)
25.2V RMS, 3 ohms max, 37.5 watts (1.5A)
25.2V RMS, 2.5 ohms max, 45 watts (1.8A)
Minimum Wire Size: 18 AWG
Maximum Wire Size: 14 AWG
Supervisory Speaker Zone Connections
Supervisory: 1.5 VDC, 0.06mA
Activated: 25.2V RMS, 45 watts max (1.8A)
70.7V RMS, 70 watts max (1.0A)
Maximum Total Load: 25.2V, 3.9A, 100 watts
70.7V, 1.4A, 100 watts

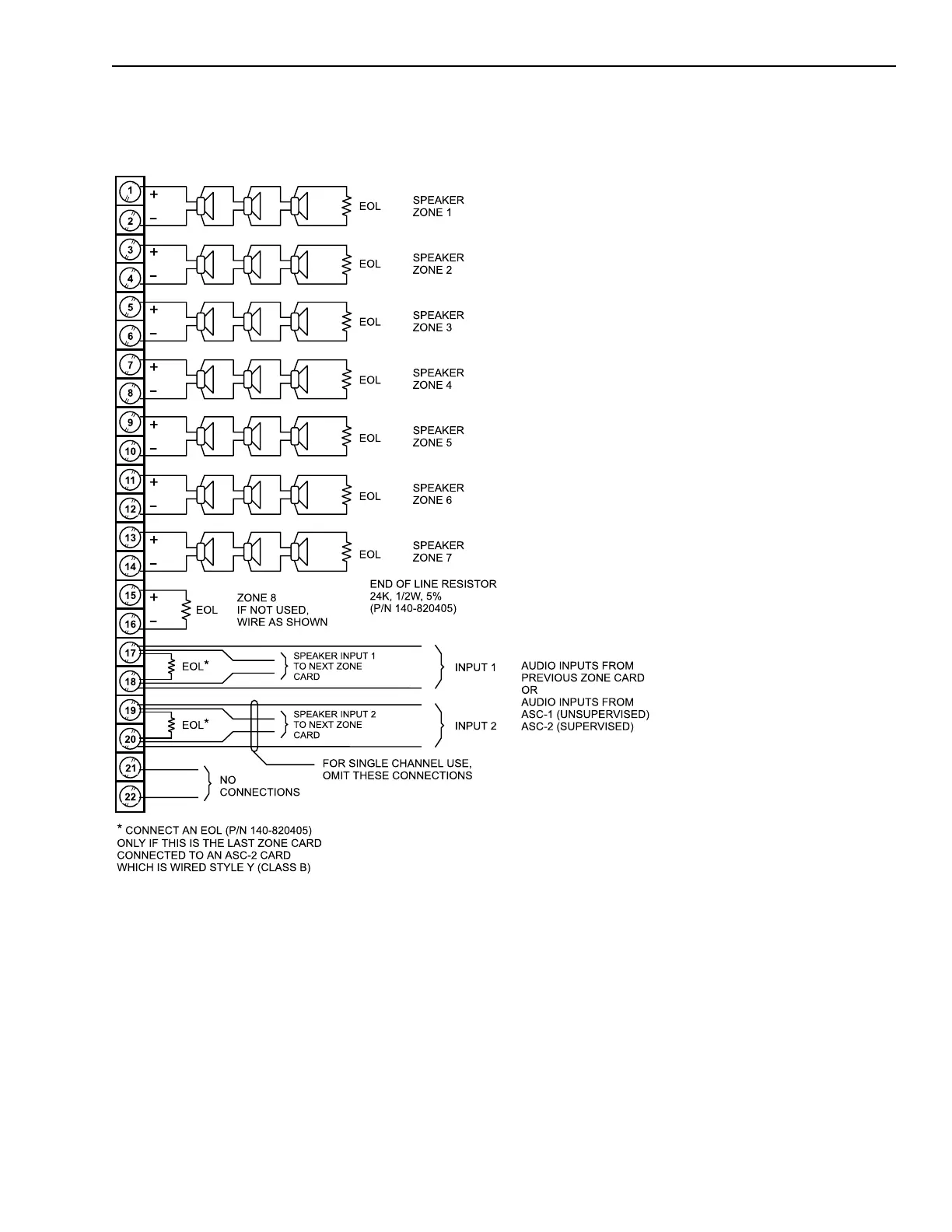

ZC2-8B Speaker Zone Wiring Diagram
NOTE:
A 2A, 250V fuse (P/N 105-292199) is included in the
fuse kit for applications where a single zone of up to
100W at 70.7V is required. Place this fuse in the clips
for the desired zone and connect the zone wires to
the appropriate terminals. When this fuse is
installed, the EL-410C/D amplifier that connects to
this zone cannot be used for any other zones.
25/70.7V RMS SPEAKER UNITS:
Any UL listed Fire Protective Signaling Speaker
rated 25/70.7V RMS may be connected to this
circuit. See Compatible Notification Appliances,
P/N 315-096363 for compatible combination
speaker strobe models.
