Siemens LMV36.520A1 - Display of Operating Position

To Next Page

To Previous Page

166/248

Building Technologies Division Basic documentation LMV36... CC1P7544en

Infrastructure & Citiies Sector 24 Operation of basic unit via the AZL2... 25.09.2013

24.1.3 Display of operating position

mi n

Bild 12/0707

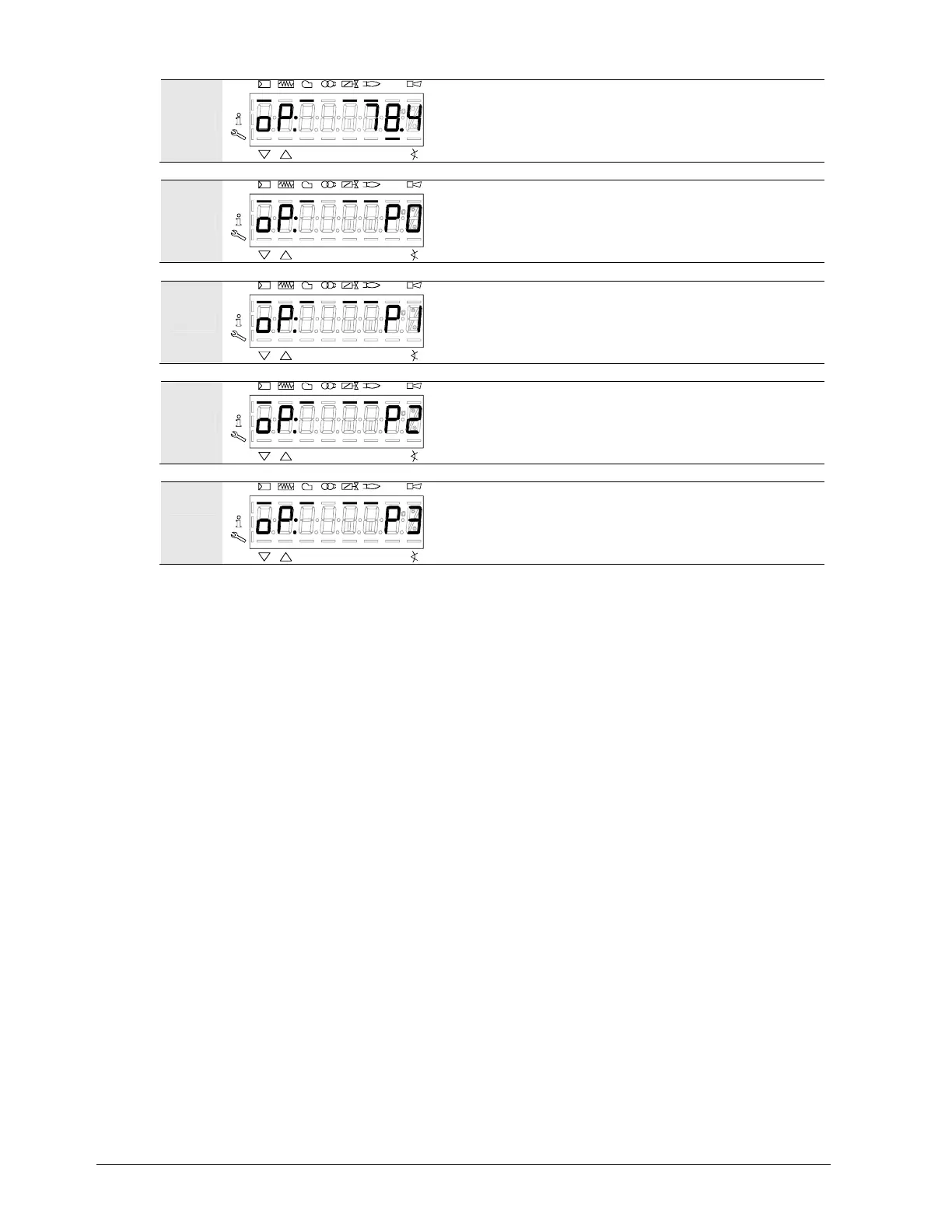

Display oP stands for Operating position reached.

Modulating mode: Current output in %

mi n

Bild 13/0707

Display oP: P0 stands for Ignition point.

Multistage operating mode: Current heating stage

mi n

Bild 14/0707

Display oP: P1 stands for Stage 1.

Multistage operating mode: Current heating stage

mi n

Bild 15/0707

Display oP: P2 stands for Stage 2.

Multistage operating mode: Current heating stage

mi n

Bild 16/0707

Display oP: P3 stands for Stage 3.

Multistage operating mode: Current heating stage
