Siemens LMV36.520A1 - Cold Settings for Multistage Mode (Lo 2-Stage and Lo 3-Stage); Intensity of Flame During Curve Settings

213/248
Building Technologies Division Basic documentation LMV36... CC1P7544en
Infrastructure & Citiies Sector 28 Parameter level 25.09.2013
ESC
P
Vh
mi n
s%
Bild 156/0707
The warm settings for fuel-air ratio control of the LMV36... have now been configured.
28.11.12 Cold settings for multistage mode («Lo 2-stage» and «Lo 3-stage»)

Note
Refer to chapters Warm settings for «Lo 2-stage» and «Lo 3-stage»!
But with no flame, no actuator travel and no automatic operation after the settings
have been made.

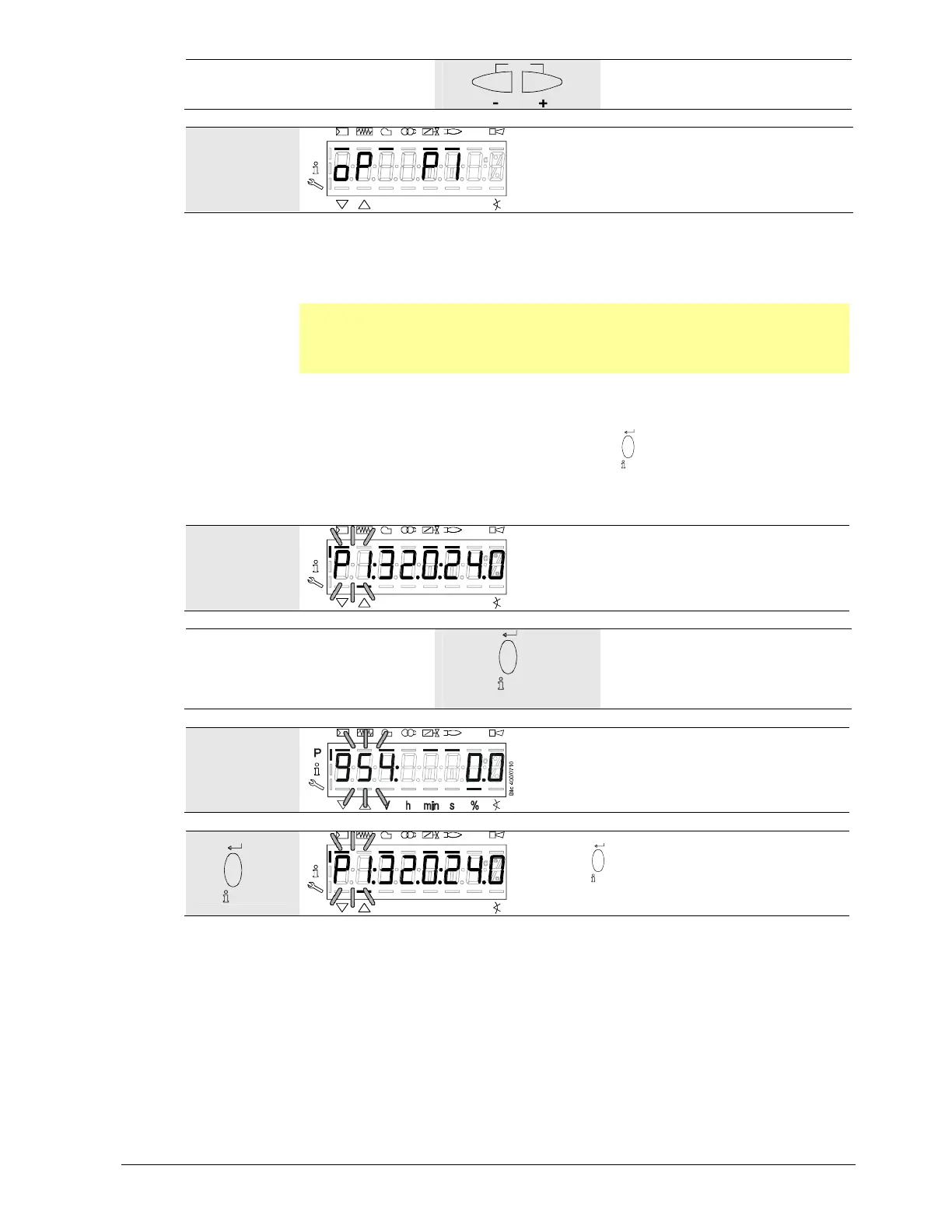

28.11.13 Intensity of flame during curve settings
When setting the curve and the curvepoint is displayed, you can press
/
reset
to show the intensity of flame.
When pressing the button for >1 s, a change to parameter 954 is made; when releasing the button, you
return to the curvepoint.
P
V
h
mi n
s%
Bild 123/0707
Example: Curvepoint Low-flame position P1.
/
reset
>1 s
Change to parameter 954
Parameter 954: flashes.
The intensity of flame in % is shown on the right.
Example: 954: 0.0
/
reset
P
V
h
mi n
s%
Bild 123/0707
Release
/
reset
to return to curvepoint Low-fire
position P1.
