Building Technologies Division Basic documentation LMV36... CC1P7544en

Infrastructure & Citiies Sector 7 Basic unit 25.09.2013

7.7.2 Gas pilot ignition 1 «Gp1», «Gp1 mod», «Gp1 mod pneu»

Fuel

Air

0°

R (ON)

0°

5 s5 s 30 s

POC *)

Function / inputs

Function / outputs

RAST plug

pin number

RAST plug

pin number

X3-04 pin 1/2

X5-03 pin 1/4

X10-05

pin 2 / pin 3/4

X10-06 pin 1/2

X3-02 pin 1/2

X5-01 pin 2/3

X5-02 pin 2/3

X3-05 pin 1

X4-02 pin 2/3

X6-03 pin 2/3

X8-02 pin 1/3

X7-01 pin 2/3

X7-02 pin 2/3

X3-05 pin 2

X54

X53

X74

X9-04 pin 2/3

X5-01 pin 2/3

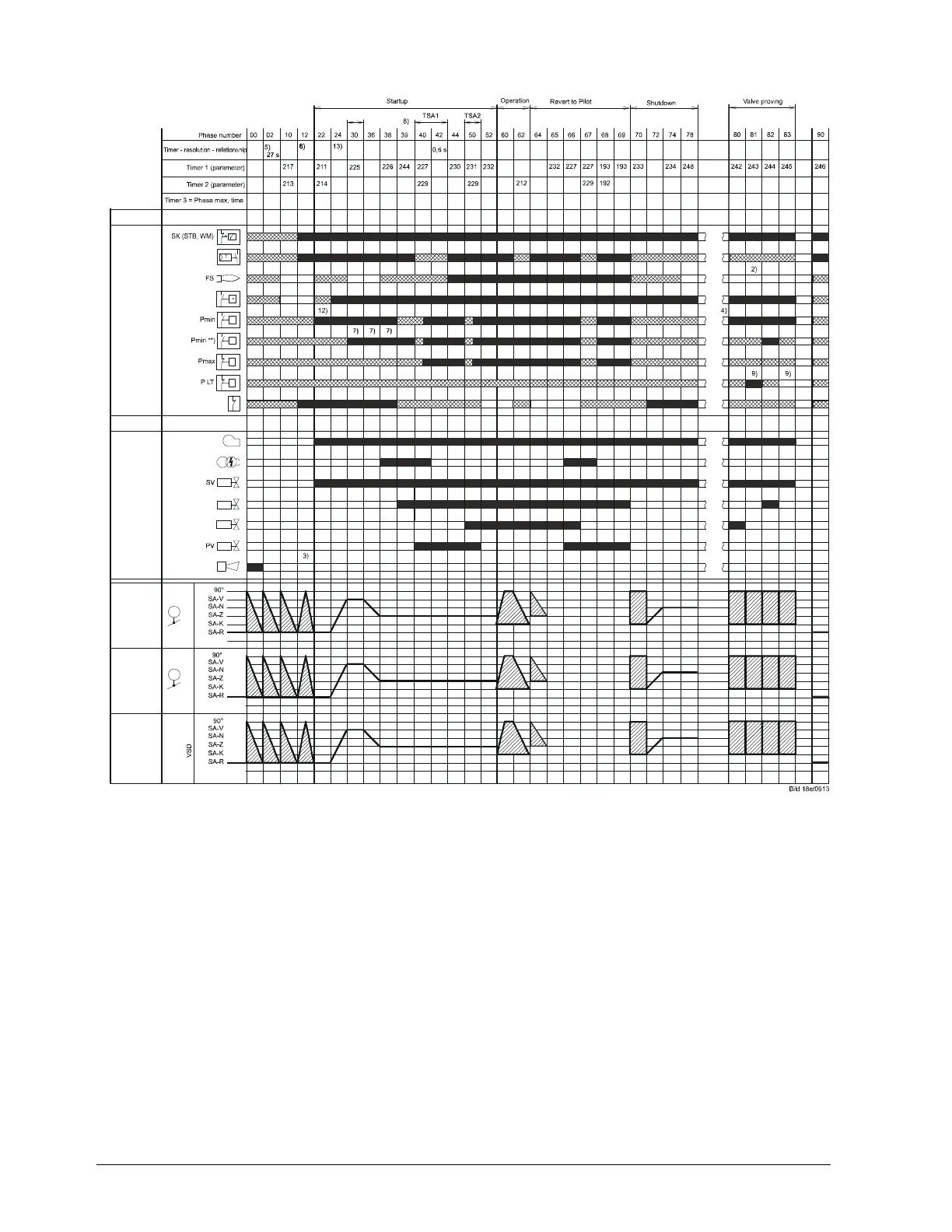

Figure 67: Program for gas pilot ignition (Gp1), (Gp1 mod), (Gp1 mod pneu)
