Siemens LMV36.520A1 - Setting Curvepoints P0 and P9 for Modulating Operation (G Mod, Gp1 Mod, Gp2 Mod and Lo Mod)

196/248
Building Technologies Division Basic documentation LMV36... CC1P7544en
Infrastructure & Citiies Sector 28 Parameter level 25.09.2013

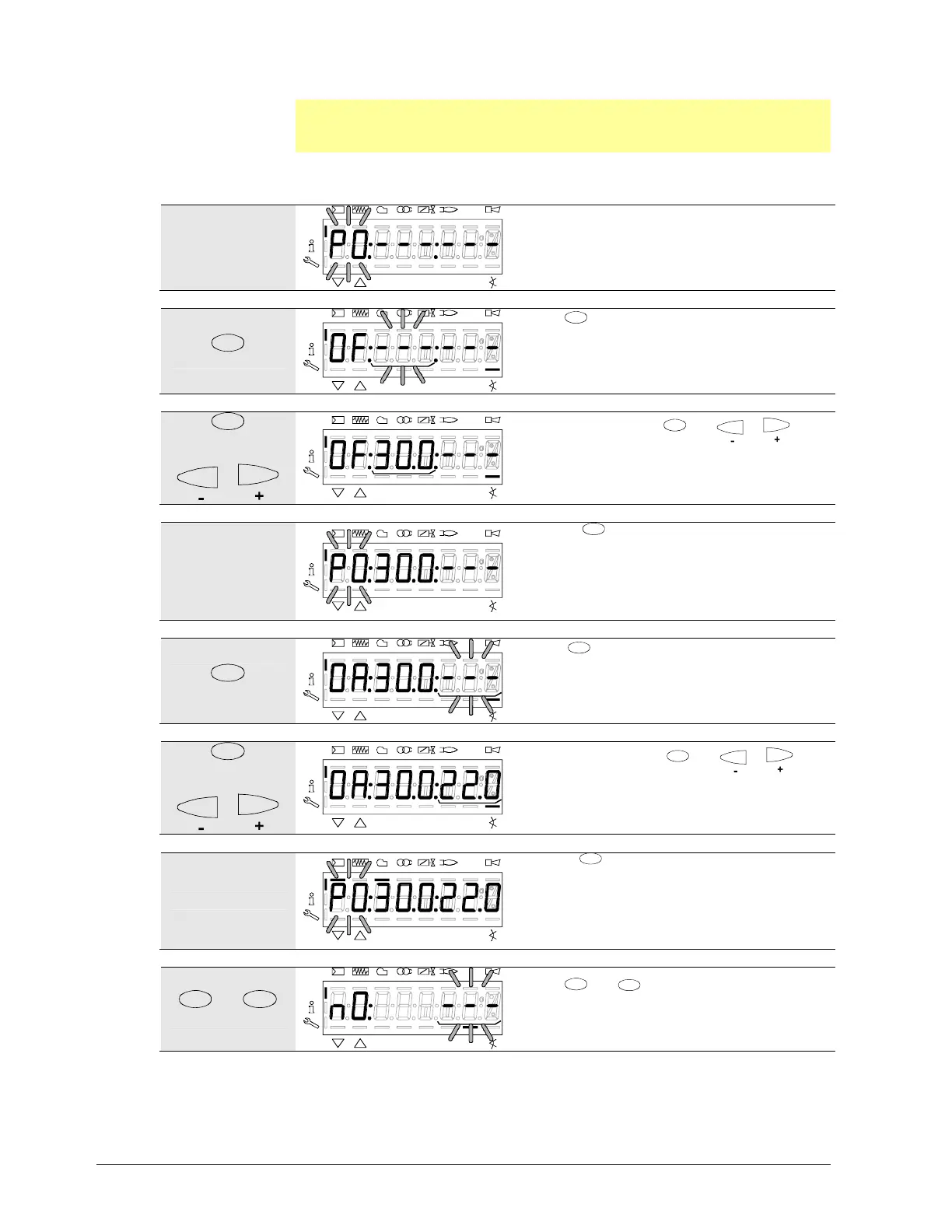

28.11.2 Setting curvepoints P0 and P9 for modulating operation («G mod»,
«Gp1 mod», «Gp2 mod» and «Lo mod»)

Note
Not all actuators used in the following example can be set, depending on the
selected operating mode.
Example of «G mod»
P
Vh
mi n
s%
Bild 102/0707
Display P0 appears blinking.
Curvepoint for ignition load.
F
P
Vh
mi n
s%
Bild 103/0707
Keep
F
depressed.
You are now in setting P0 of fuel setting F for
ignition position P0.
F
and
or
P
Vh
mi n
s%
Bild 104/0707
Press simultaneously
F
and or to
set ignition position P0 of the fuel damper.
Example: 30.0
P
Vh
mi n
s%
Bild 105/0707
Release
F
.
The selected value is adopted.
Example: 30.0
A
P
Vh
mi n
s%
Bild 106/0707
Keep
A
depressed.
You are now in setting P0 of air actuator A for
ignition position P0.
A
and
or
P
Vh
mi n
s%
Bild 107/0707
Press simultaneously
A
and or to
set ignition position P0 of the air actuator.
Example: 22.0
P
Vh
mi n
s%
Bild 108/0707
Release
A
.
The selected value is adopted.
Example: 22.0
F
and
A
P
Vh
s
min %
Bild 109/0807
Keep
F
and
A
depressed.
You are now in setting n0, speed n is for ignition
position n0
