7.3.9 Gas / oil pressure switch-max (Pmax) / or POC contact, start
release oil X5–02
Input for connection of a pressure switch-max for gas or oil: The sensor must have an
NC contact, which means that the contact opens when the adjusted maximum pressure
is exceeded. If the plant does not require a pressure switch-max, a wire link must be
fitted between pin 2 and 3.
Caution!
The OEM must check to see whether the burner can be operated without
pressure switch-max. This may necessitate a special approval, depending on
the type of application.
LMV...
Bild 279e/1010
X5-02
Pmax/POC
Protective earth (PE)
Pressure switch-max or POC
“L” for pressure switch

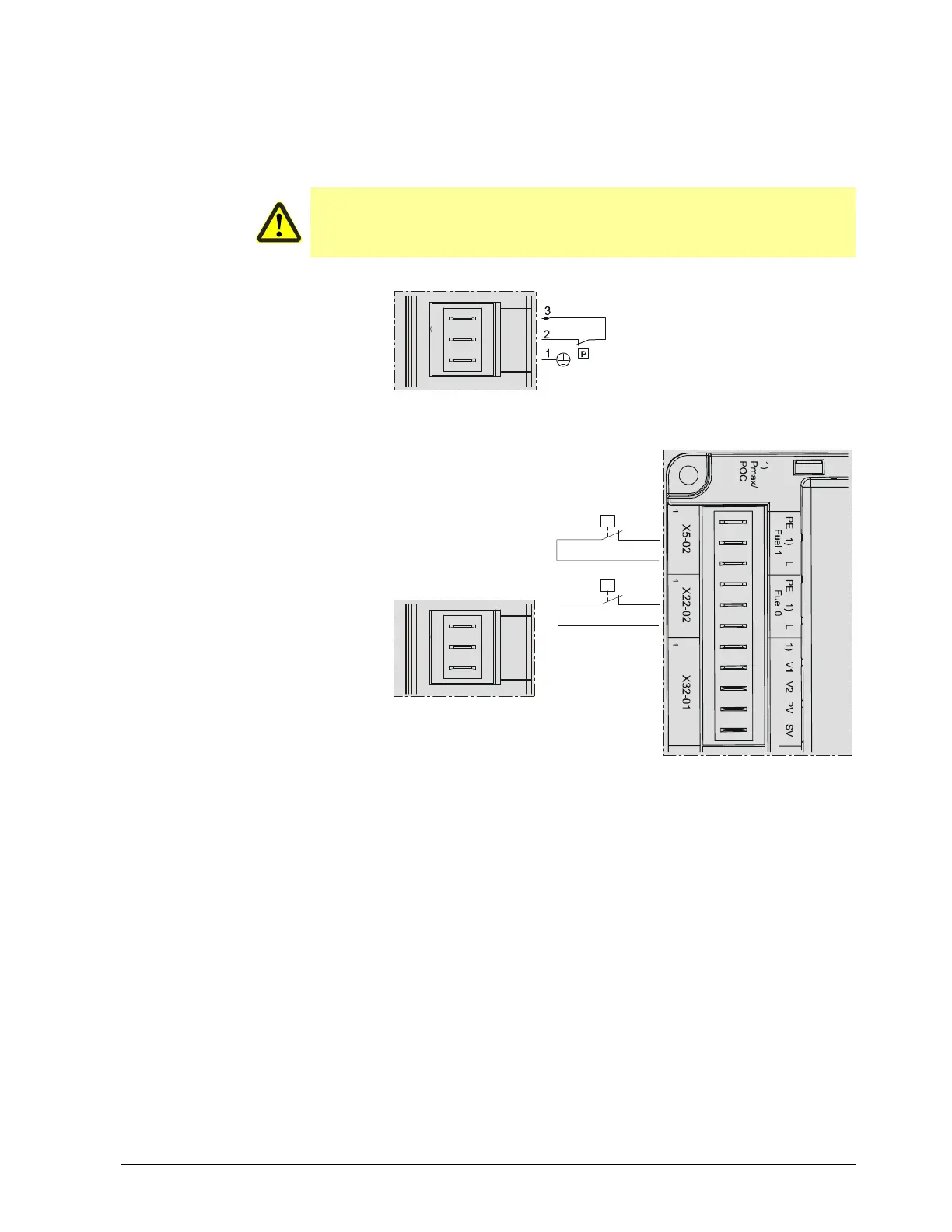

Figure 25: LMV36...: Gas / oil Pressure switch-max (Pmax) or POC X5-02
LMV...
Bild 280e/1010
X5-02
Protective earth (PE)
Pressure switch-max or POC
“L” for pressure switch
AGM60...
V3
Oil max
P
Gas max
P
3
2
1
1
2
3
1
2
3
1
2
3
4
5
Figure 26: LMV36... with AGM60…: Gas / oil pressure switch-max (Pmax) or POC X5-02
