Building Technologies Division Basic documentation LMV36... CC1P7544en

Infrastructure & Citiies Sector 7 Basic unit 25.09.2013

LMV...

Bild 288e/0409

X7-01

Fuel valve 2 (V2)

Protective earth (PE)

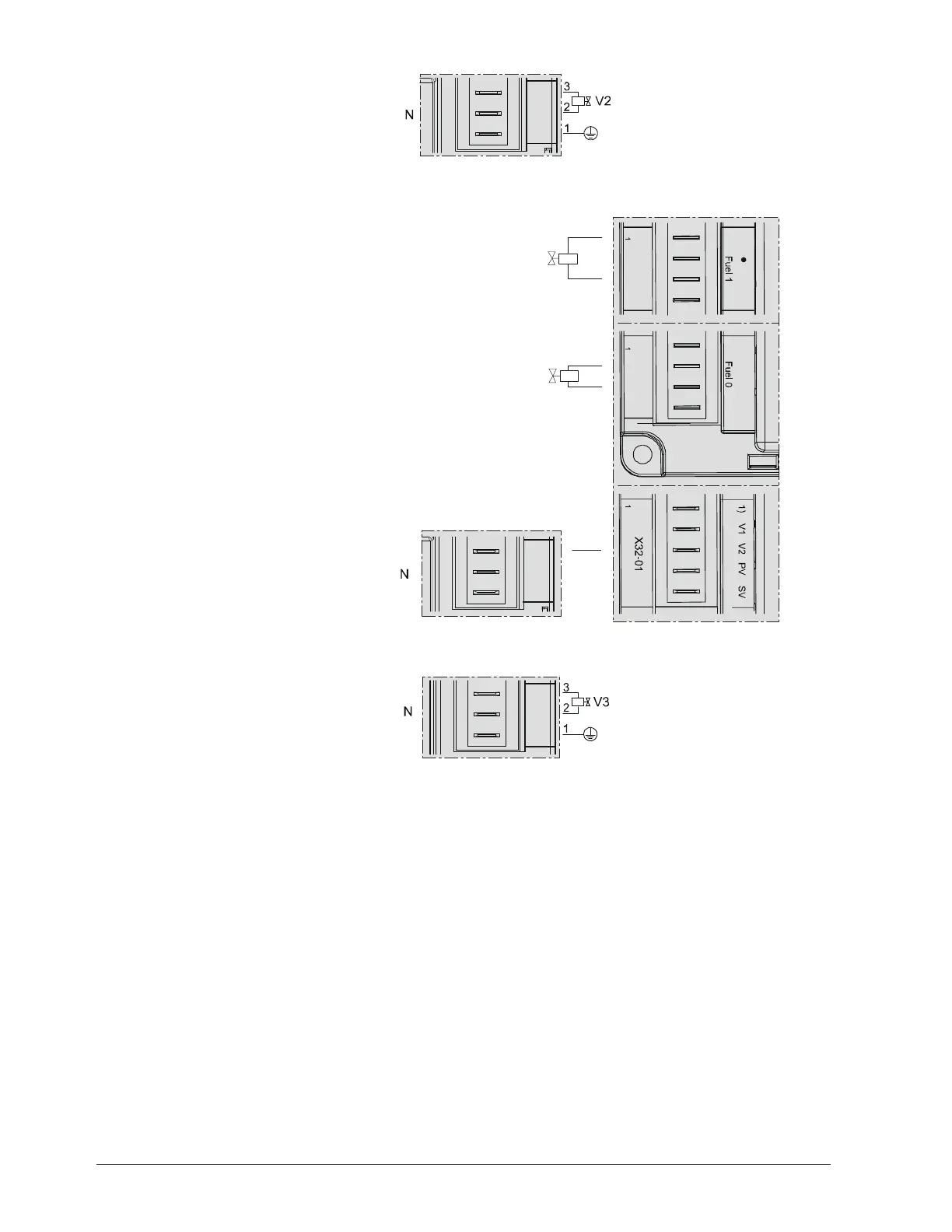

Figure 35: LMV36...: Output fuel valve (V2) X7-01

LMV...

Bild 289e/0409

X7-01

Fuel valve 2 (V2)

Protective earth (PE)

GM60...

X8-03

V2 N PE

X24-04

PE N V2 V1

Figure 36: LMV36... with AGM60…: Output fuel valve (V2) X7-01

LMV...

Bild 290/0409

X7-02

Brennstoffventil 3 (V3) /

Schutzleiter (PE)

Pilotventil (PV)

Figure 37: LMV36...: Output fuel valve (V3) / pilot valve PV X7-02

Outputs for connection of the gas or oil valves, depending on the selected type of fuel

train (refer to chapter Sequence diagrams).
