Siemens SCALANCE X-200

Network topologies and media redundancy
1.1 Network topologies
SCALANCE X-200
14 Configuration Manual, 03/2015, C79000-G8976-C285-06
Star topology

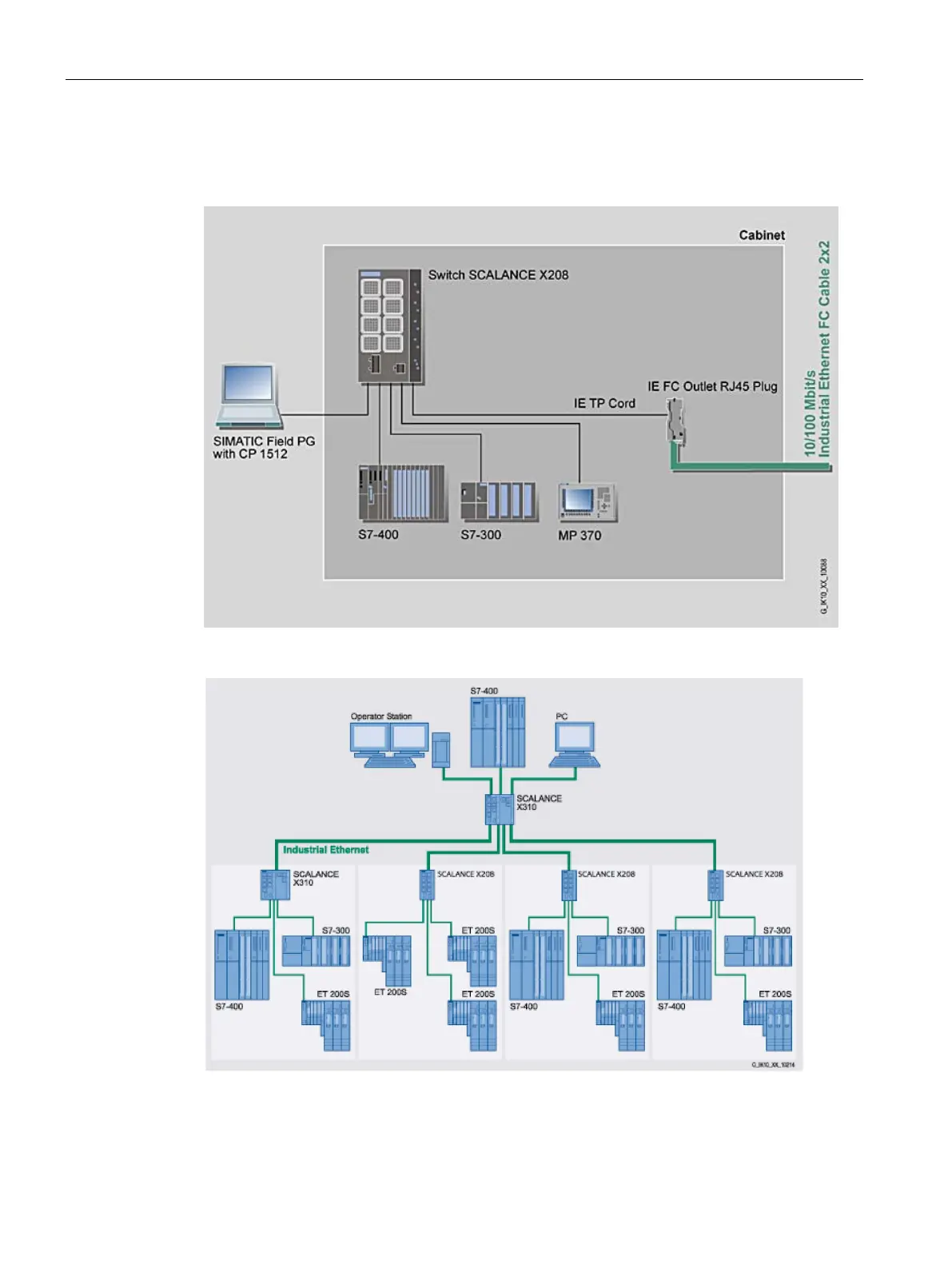

Figure 1-2 Electrical star topology. Example with X208
Figure 1-3 Star topology with X310 and X208
