Menus in the WBM
5.3 The Agent menu
SCALANCE X-200
Configuration Manual, 03/2015, C79000-G8976-C285-06
95

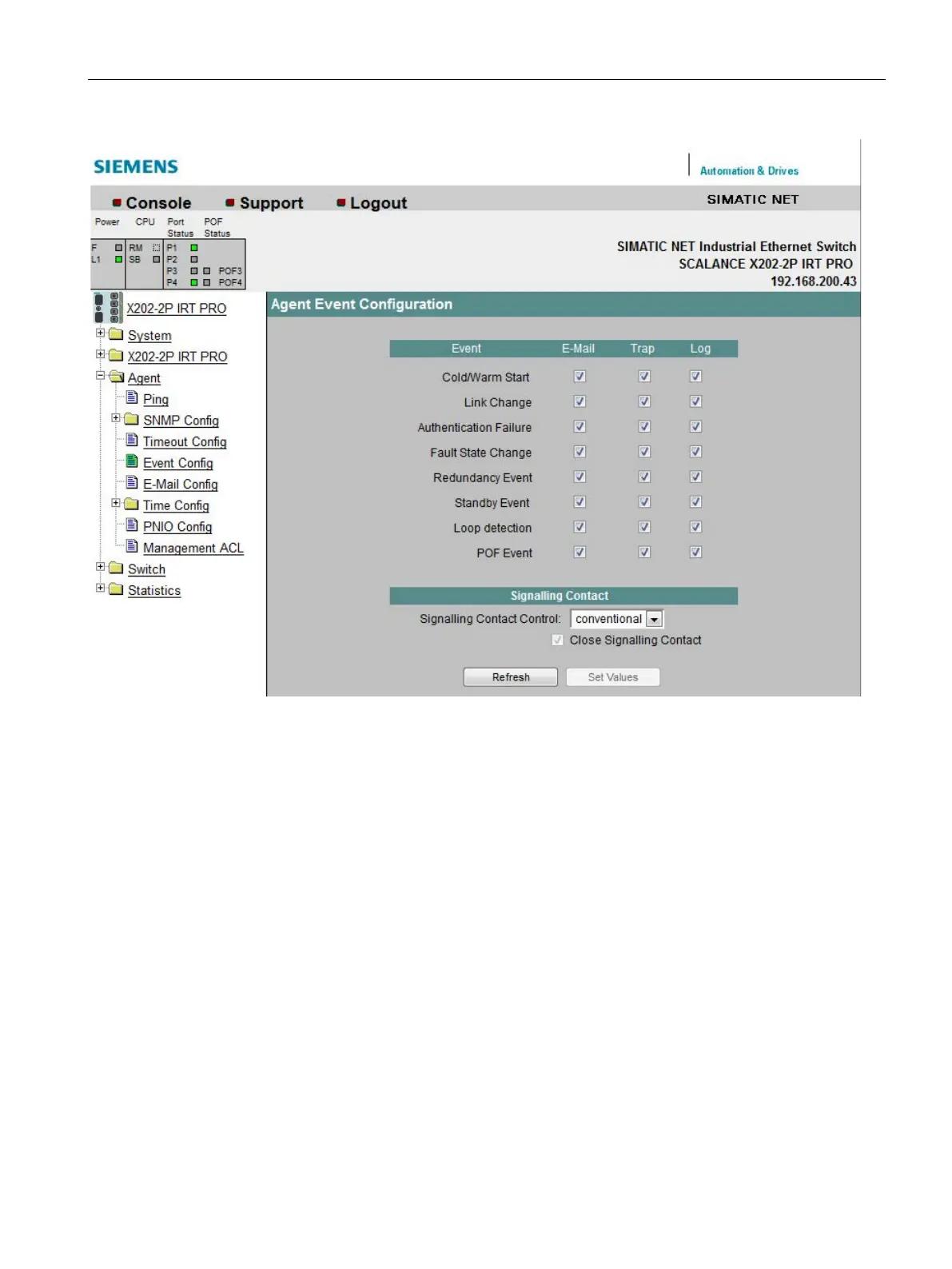

Figure 5-24 Agent Event Configuration
You can configure the reaction of the IE Switch X-200 to the following events:
The IE Switch X-200 was turned on or reset by the user.
A port has failed or data traffic is being handled again over a port that had previously failed.
There was an SNMP or Web Based Management access with a bad password or
inadequate access rights (refer also to the section "Agent SNMP Configuration").
(only relevant for devices with a redundant power supply)
This event occurs only when the power supply line 1 and line 2 are monitored. It indicates
that there was a change to line 1 or line 2.
The fault status has changed. The fault status can relate to the activated port monitoring, the
response of the signaling contact or the power supply monitoring.
