Communications configuring
System- and communication configuring D7-SYS - SIMADYN D 3-75
Edition 12.2003
― The majority of the setting possibilities in the "Slave
characteristics" window are of now significance for the typical
configuration. The standard settings can be used. Only the family
(current: SIMADYN), the station type (current: "SS52 master/slave")
and the "Configuring..." button are important.

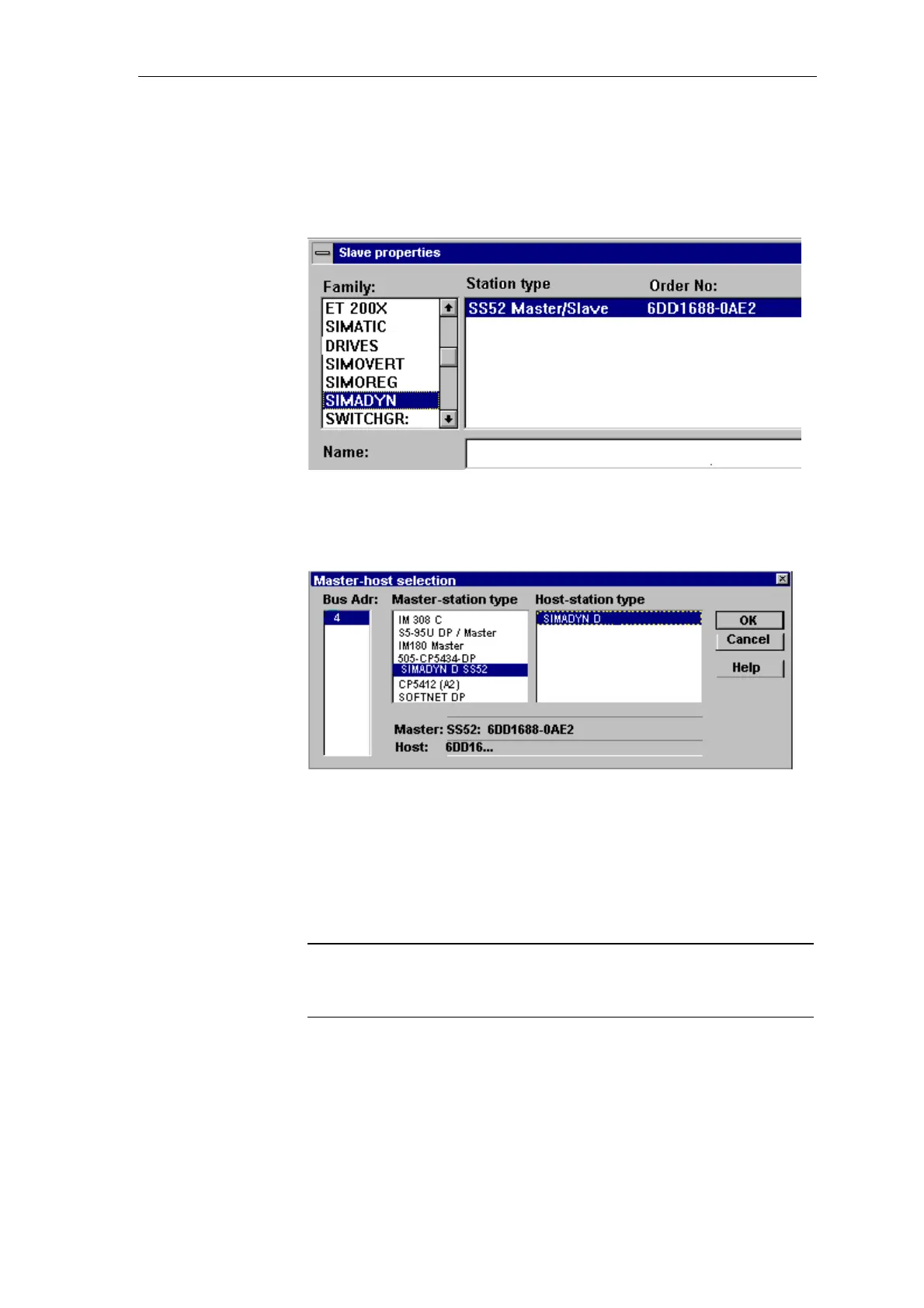

Fig. 3-26 Dialog box, "Slave characteristics"
6. However before configuring starts, the specified settings must be
acknowledged with OK in a dialog box "Master-host selection".
Fig. 3-27 Dialog box, "Master-host selection"
7. The bus node is now actually configured.
For the SS52 communications module, this configuration window is at
first completely empty. The net data structures must now be entered
in the list in the dialog box "Configuring: SIMADYN D slave ...".
NOTE
S5 is the master in this "Master system <1>" so that the transmit- and
receive mode must be considered from its perspective (I/O addresses of
the S5).
