Communications configuring
System- and communication configuring D7-SYS - SIMADYN D 3-195
Edition 12.2003

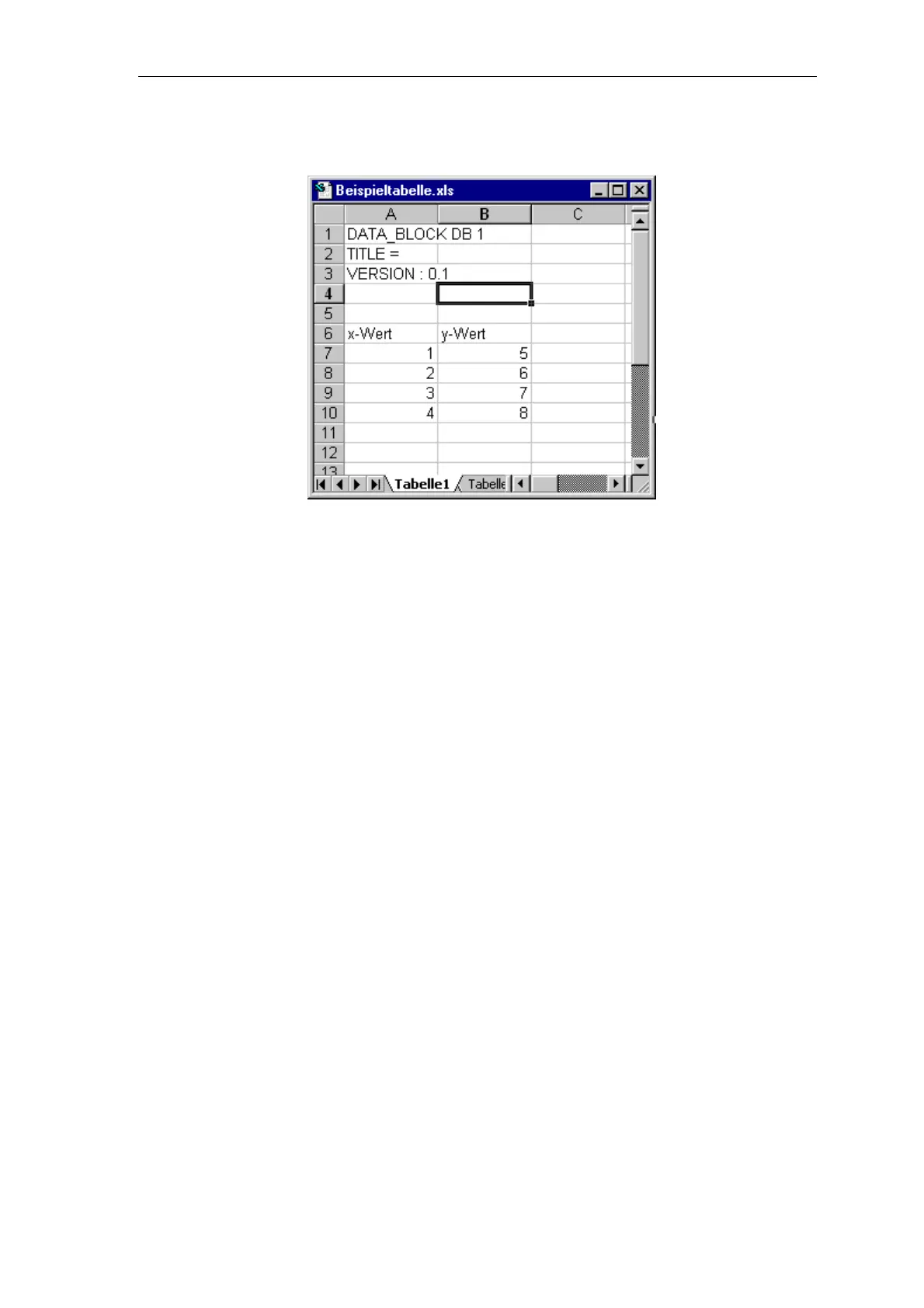

The Excel table with inserted header is shown in the following diagram:
Fig. 3-77 An example of a table in MS Excel with inserted header
(2) Insert structure and tabular values
In a next step, the structure of the tabular values and the values,
specifying the data type, are inserted. In this case, two lines plus an initial
and end line are inserted for each value pair. Furthermore, a line is
inserted at the start to specify the data type used.
The start of the structural data is displayed in the starting line with the
"STRUCT" entry. The data type, used in the table, is specified in the
following line ("W#16#1" for data type REAL, "W#16#2" for data type
DINT).
This is followed by the structural data and tabular values for the individual
value pairs, where X and Y values are always entered alternating. The
tabular values are specified corresponding to the data type used (in this
case REAL). The end of the structural data is displayed in the final line
with the "END_STRUCT;" entry.
Finally, only the data for the data section of the actual values has still to
be specified ("BEGIN" and "END_DATA_BLOCK"). As the tabular values
already have the structural data in the starting (initial) values, it is not
necessary to specify the individual actual values.
