Communications configuring
3-196 System- and communication configuring D7-SYS - SIMADYN D
Edition 12.2003
The Excel table with inserted structural data and tabular values is shown
in the following diagram:

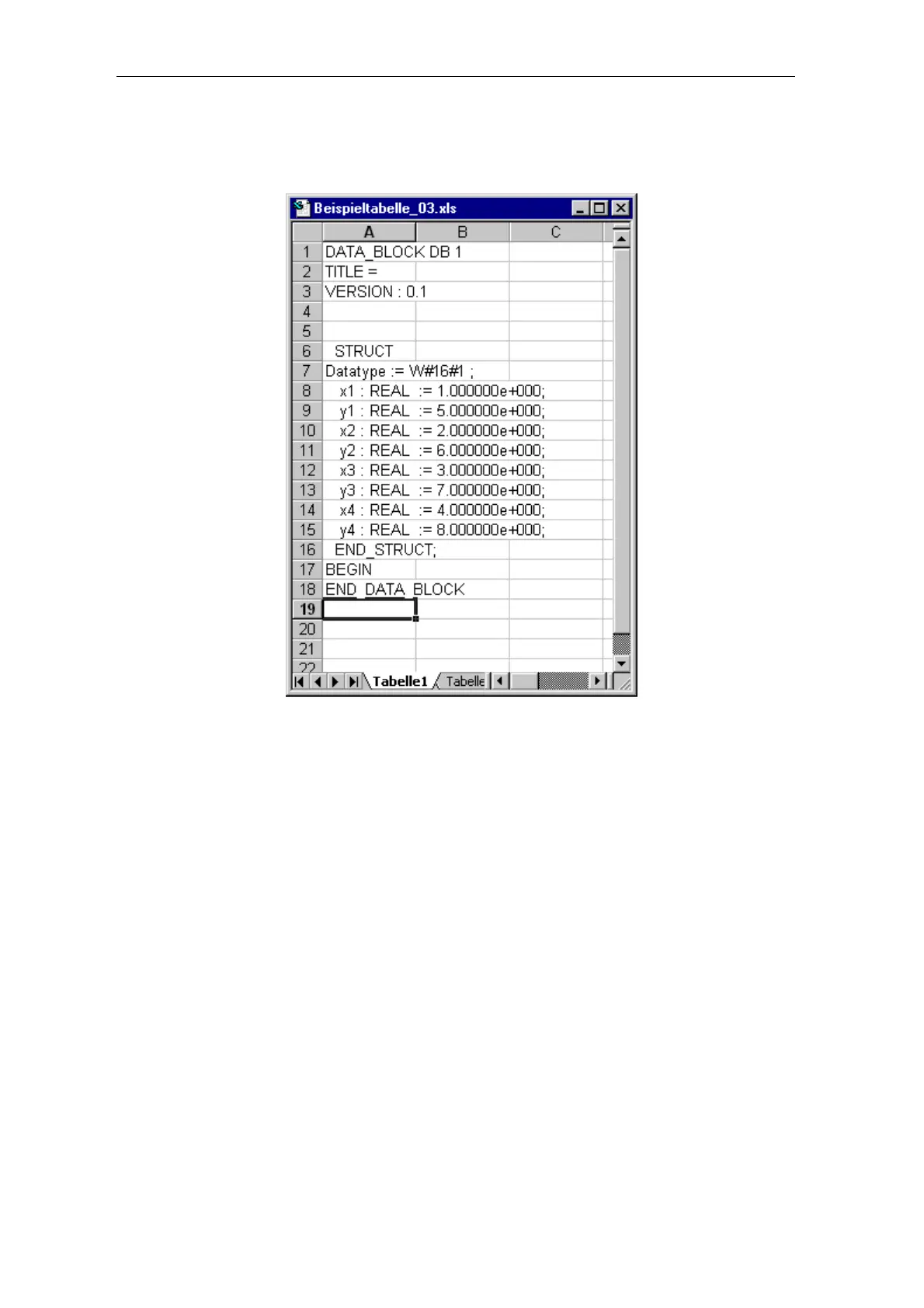

Fig. 3-78 Example of a table in MS Excel with inserted structural data and tabular values
(3) Saving as STL [AWL] file
Finally, the correctly formatted file only has to be saved as text file with
the extension *.AWL. In this case, the following should be selected in MS
Excel "File
Æ Save as...". "Formatted text (separated by blanks) (*.prn)"
file type should be selected and the table example should be saved under
a freely selectable name and location.
