Communications configuring
System- and communication configuring D7-SYS - SIMADYN D 3-197
Edition 12.2003
"Save as" window in MS Excel with the appropriate selection is shown in
the following diagram:

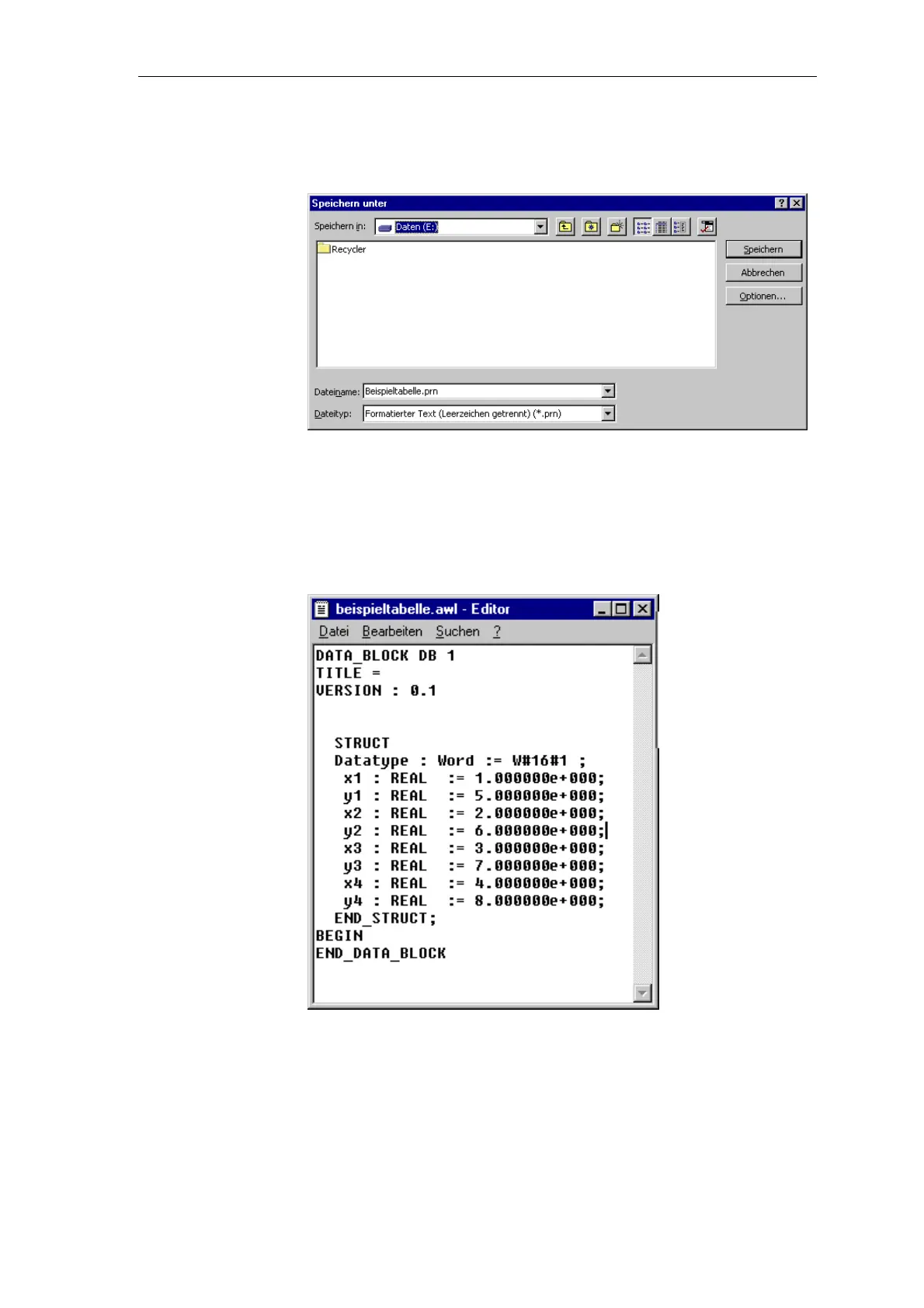

Fig. 3-79 An example of a table in MS Excel saved as text file (*.prn)
After the file has been saved, the file type should be changed from *.prn
to *.awl. This file can then be opened with any text editor.
The following diagram shows the table example as STL [AWL] file,
opened in the standard Windows text editor:
Fig. 3-80 Table example, saved as *.awl file, opened in the text editor
This file can only be used as external source file in STEP7 for a DB.
