Communications configuring
System- and communication configuring D7-SYS - SIMADYN D 3-199
Edition 12.2003

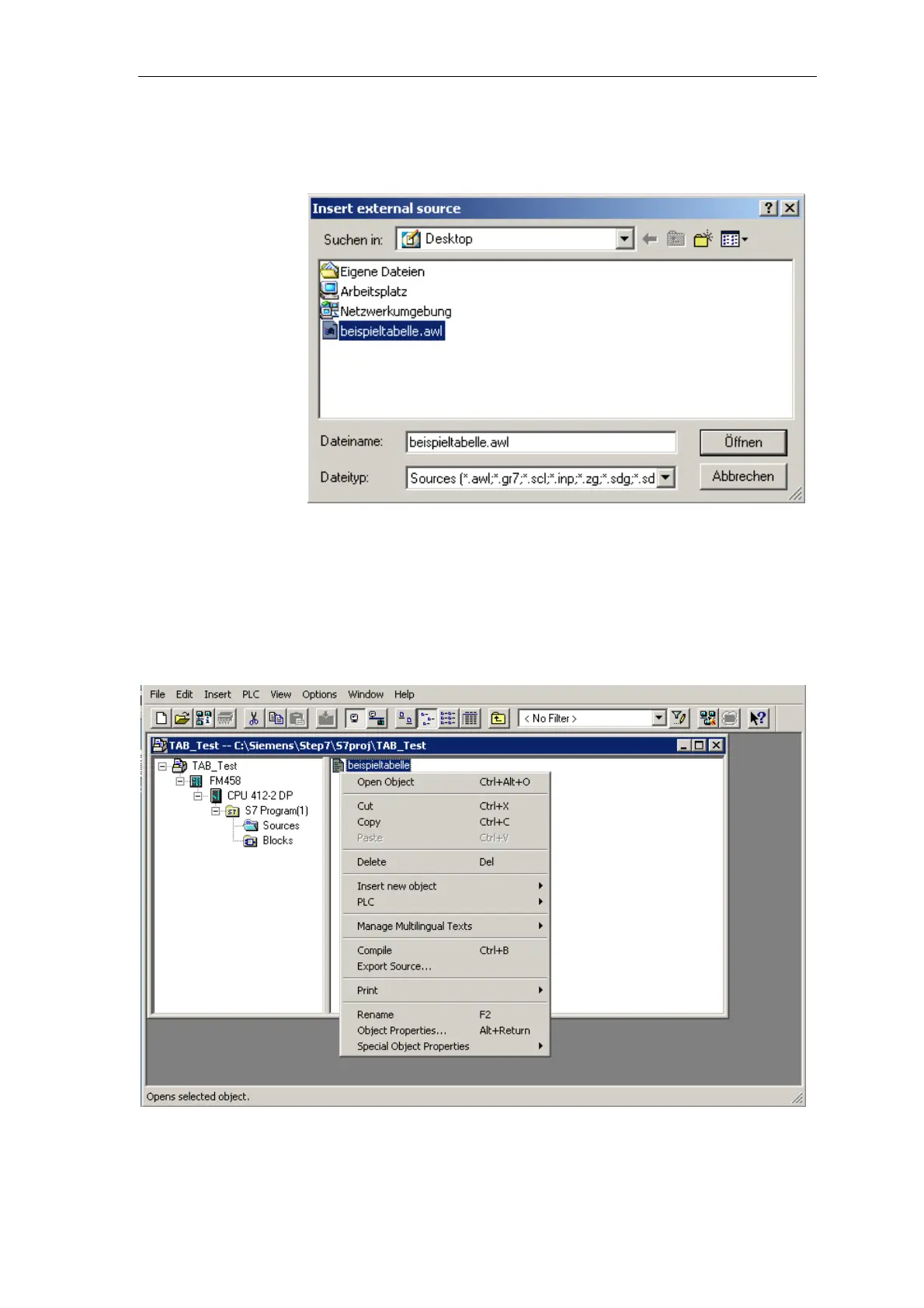

The STL [AWL] file, generated above, is selected as source file. The
following diagram shows the file selection window:
Fig. 3-82 Selecting the file to be inserted in STEP7 as external source
The selected file is opened (in this case: BEISPIELTABELLE.AWL). It
now exists as source file in the configured software under "Sources". It is
selected there and is opened.
The file example, available under "Sources" and its context-sensitive
menu is shown in the following diagram:
Fig. 3-83 Generated source file in STEP7
