6.2 Configuring the CPU
Distributed I/O system
146 System Manual, 12/2016, A5E03576849-AG
Hardware identifier
STEP 7 automatically assigns a hardware identifier to identify and address modules and
submodules. You use the hardware identifier in the case of diagnostic messages or
operations, for example, to identify a defective module or the module addressed.

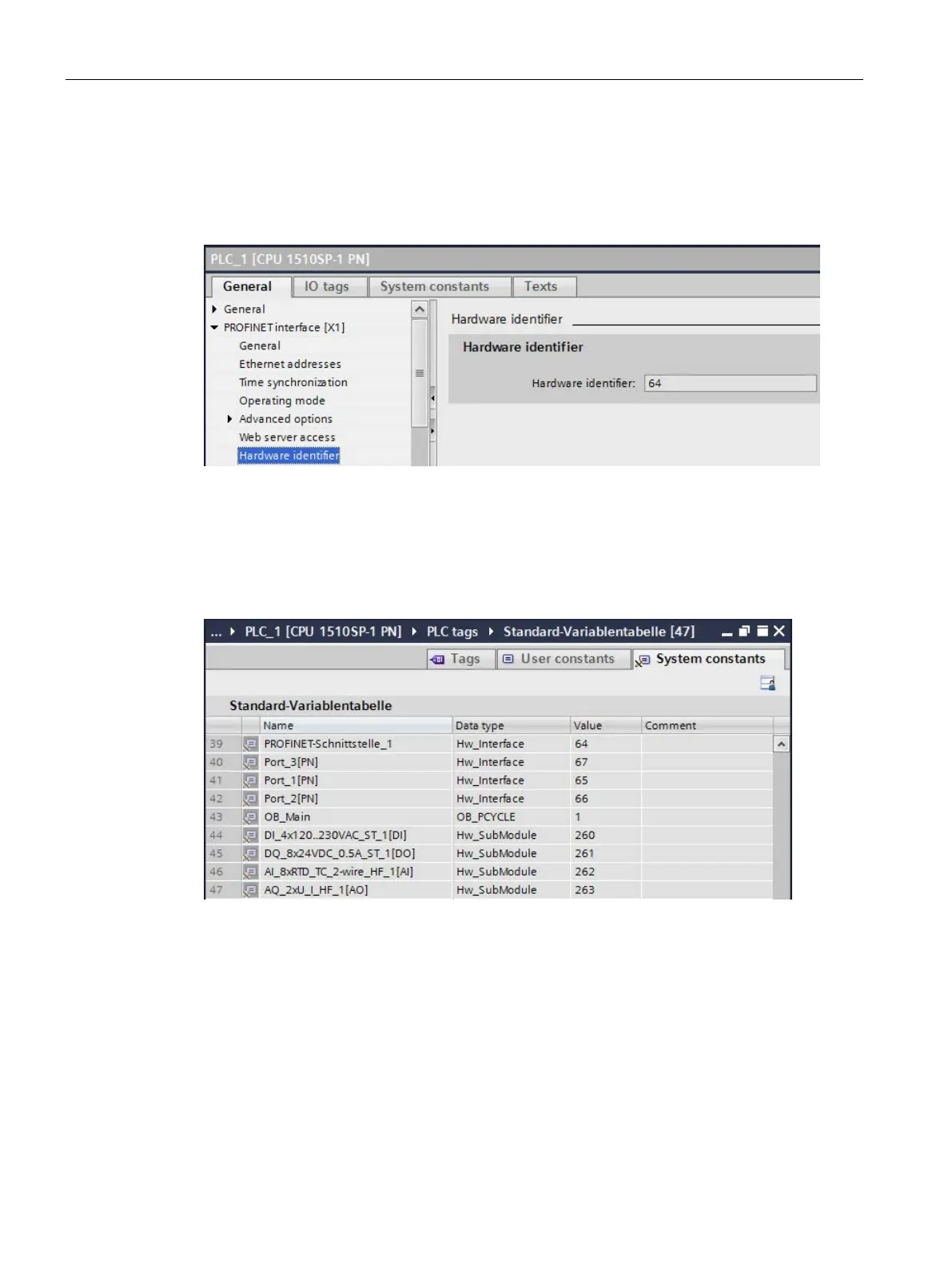

Figure 6-6 Example of a hardware identifier from STEP 7
In the "System constants" tab, you will find all hardware identifiers and their symbolic names
(of the hardware identifier) for the selected module.
You can also find the hardware identifiers and names for all modules of a device in the
default tag table of the "System constants" tab.
Figure 6-7 Example of an excerpt from a default tag table in STEP 7

Siemens Simantic ET200SP Specifications

General

System Type	Modular I/O System
Mounting	DIN Rail
Power Supply	24 V DC
Category	I/O Systems
Protection Class	IP20
Modularity	Yes
Communication Protocols	PROFINET, PROFIBUS
Digital Inputs	Available (varies by module)
Digital Outputs	Available (varies by module)
Analog Inputs	Available (varies by module)
Analog Outputs	Available (varies by module)
Number of Modules per Station	Up to 64
Module Width	15 mm, 20 mm, 22.5 mm (depending on module type)
